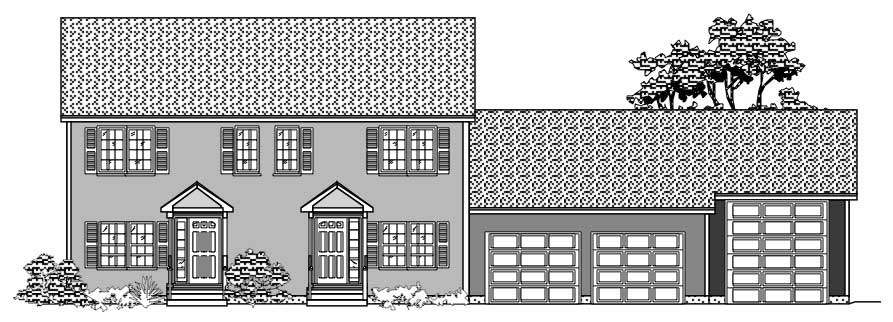

This is the front elevation of these Multi-Unit House Plans.
2-Bedroom, 2152 Sq Ft Multi-Level House Plan - 110-1003 - Front Exterior

About Plan # 110-1003

About Plan # 110-1003

2152 SQUARE FEET 2 BEDROOMS 1 FULL BATH 1 HALF BATH
2 FLOOR 78' 0" WIDTH 28' 0" DEPTH 3 GARAGE BAY
This set of house plans makes a nice duplex with a shared garage.

Each plan set includes the following:

  • ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of the house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • MAIN FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications. Includes window sizes.
  • UPPER FLOOR PLAN (if applicable): Same details as the main floor plan.
  • SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Framing plans.
  • Electrical layout.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

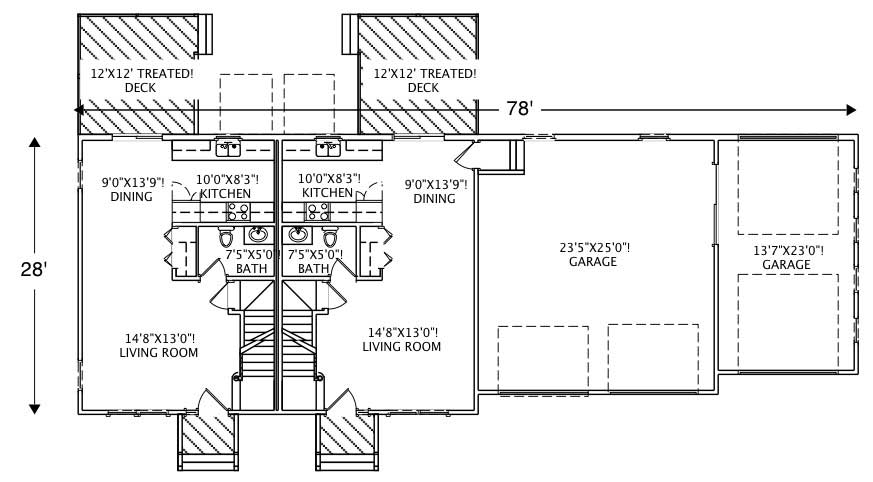

Home Plan: #110-1003 Floor Plan First Story - first story Floor Plan First Story of Multi-Level Plan #110-1003

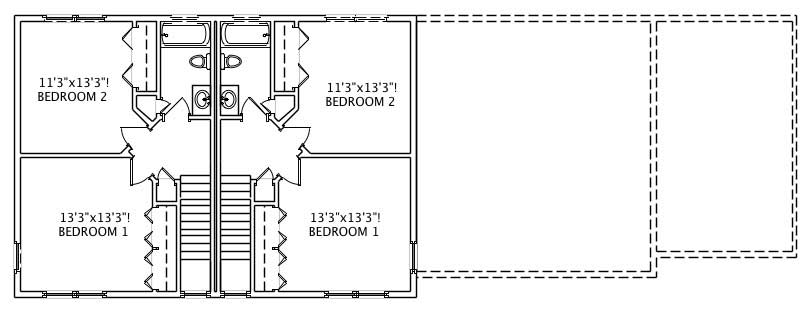

#110-1003 Floor Plan Second Story - second story Floor Plan Second Story of Multi-Level Plan #110-1003
