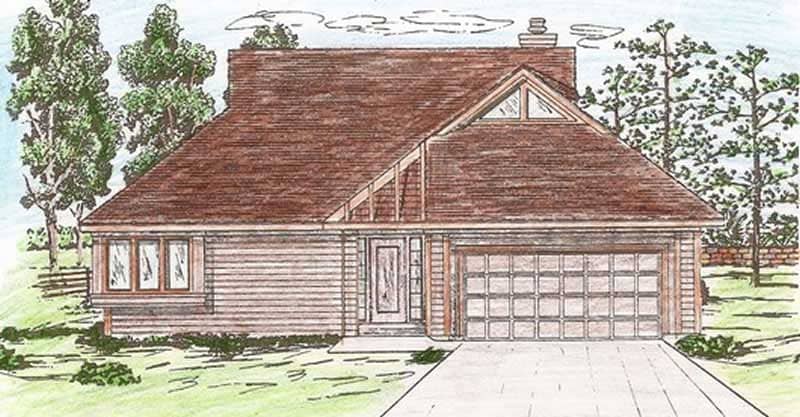

Front elevation of Wheelchair Accessible home (ThePlanCollection: House Plan #147-1009)
2-Bedroom, 1687 Sq Ft Wheelchair Accessible Home Plan - 147-1009 - Main Exterior

About Plan # 147-1009

About Plan # 147-1009

1687 SQUARE FEET 2 BEDROOMS 2 FULL BATH 0 HALF BATH
2 FLOOR 48' 0" WIDTH 50' 0" DEPTH 2 GARAGE BAY

Even though only 1960 living square feet, this 1-story plan has a rustic, country manor feel to it - much larger than its actual size would suggest. The open floor plan creates a large, central space combining the great room and kitchen - the heart of the home.

Each plan set includes the following:

  • Foundation Plan
  • Floor plans
  • Roof plan
  • Exterior Elevations
  • Cross Sections & typical details
  • Interior elevations as needed
  • Door & Window schedule
  • Electrical layout

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

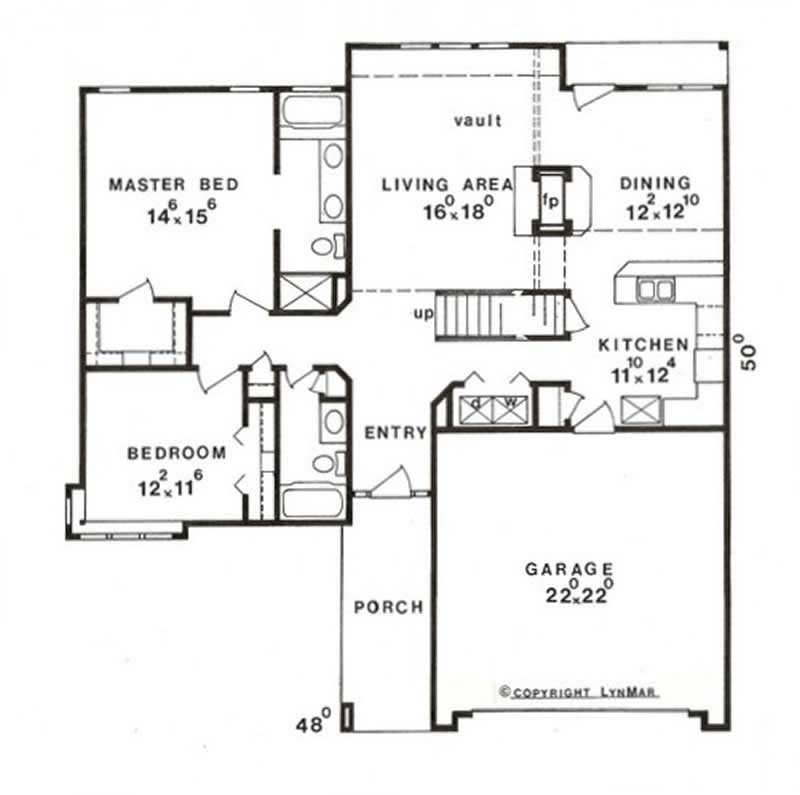

Home Plan: #147-1009 Floor Plan First Story - first story Floor Plan First Story of Wheelchair Accessible Plan #147-1009

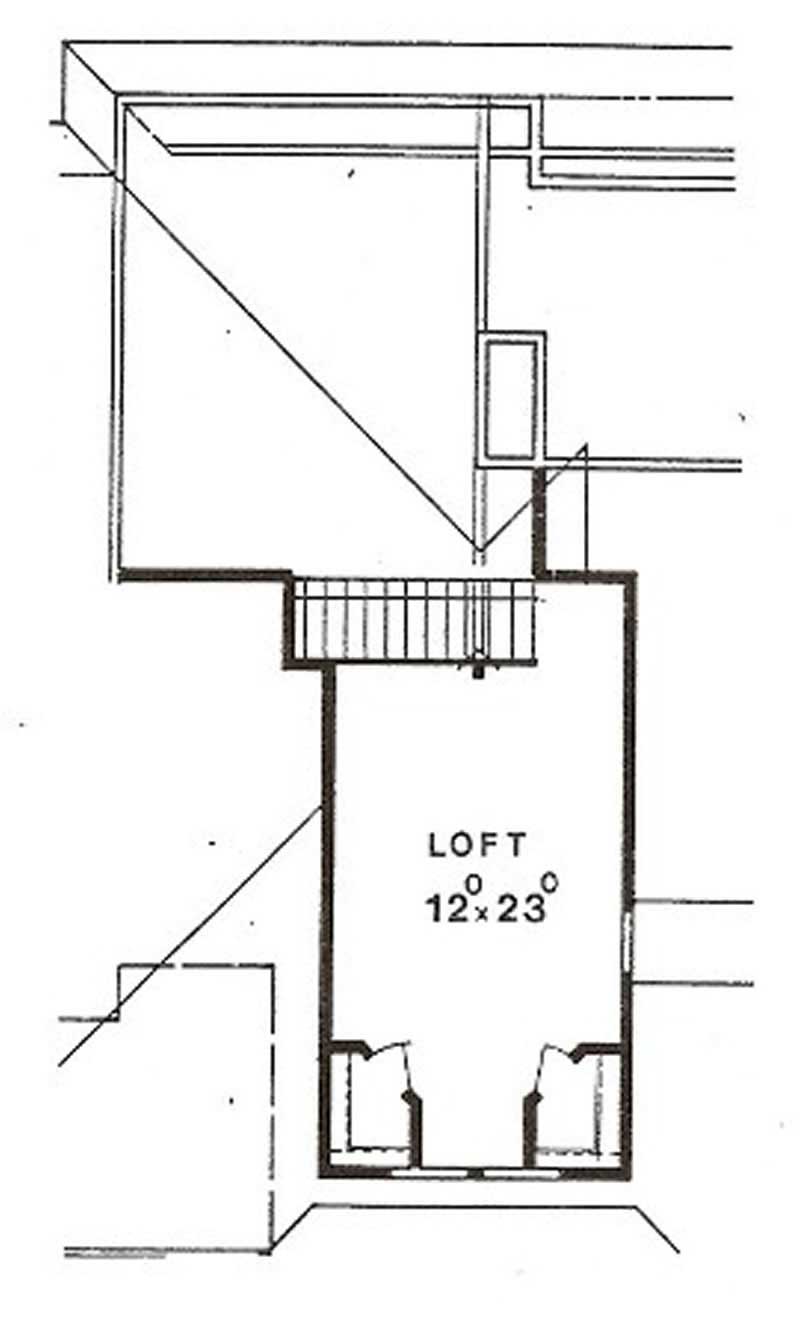

#147-1009 Floor Plan Second Story - second story Floor Plan Second Story of Wheelchair Accessible Plan #147-1009
