House Plan #109-1023
Plan Name: 109-1023   Bedrooms: 1   Width: 42' 0"
Square Feet: 838 Sq Ft.   Bathrooms: Full Baths: 1
Half Baths: 0 		  Depth: 24' 0"
Floors: 2   Garage Bays: 3 Ridge Height: 23-9'
House Plan Main Image House Plan Pricing
Image not available.
CONSTRUCTION SETS
  CAD File $1,100.00
  Vellum/Reproducible Set (to build one house) $825.00
  PDF File $775.00
  Eight Sets of Blueprints (to build one house) $675.00
  Five Sets of Blueprints (to build one house) $615.00
  Study Set (construction Bid Set) $550.00
FOUNDATION OPTIONS
  Slab On Grade $0.00
OTHER OPTIONS / ADD-ONS
Square Footage House Plan Description
Heated Sq Ft: 838   Unfinished Sq Ft:
Main Floor: 954   Garage: 0
Upper Floor: 838   Bonus Room: 0
Lower Floor: 0

These House Plans have a 3 car garage and an apartment upstairs that would be perfect for in-laws.

Home Features
  Architectural Styles
Garage
Craftsman
Garage w/apartments

  Building Lot Type
Flat Site

  Exterior Wall Framing
2x4

  Exterior Wall Material
Wood Siding
Shakes

  Garage Type
Attached Garage
Front Loading

  Kitchen Features
Eat-In Kitchen

  Master Suite Features
Second Floor Master

  Roof Pitch
12/12

  Roofing Material
Asphalt Shingles

  Roofing Type
Gable

  Special Feature
Storage
Family Room

House Plan : 109-1023 Images

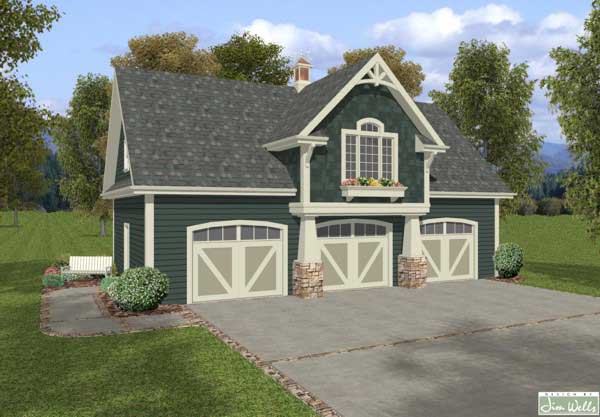

   House Plan #109-1023
Image not available.

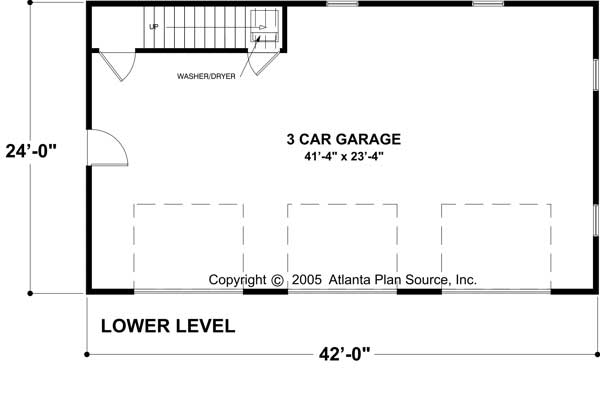

  Home Plan: 109-1023 Floor Plan First Story
Floor Plan First Story

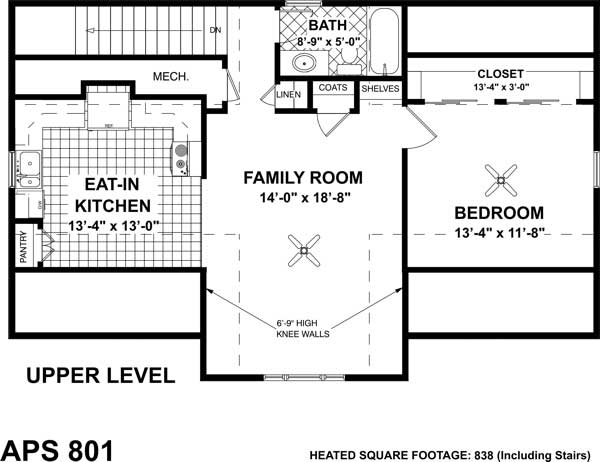

  Home Plan: 109-1023 Floor Plan Second Story
Floor Plan Second Story
