House Plan #116-1067
Plan Name: 116-1067   Bedrooms: 6   Width: 53' 0"
Square Feet: 4757 Sq Ft.   Bathrooms: Full Baths: 5
Half Baths: 0
  Depth: 89' 0"
Floors: 2   Garage Bays: 2 Ridge Height: 32'
House Plan Main Image House Plan Pricing
Image not available.
CONSTRUCTION SETS
  CAD File $1,770.00
  Minimum Construction Package (5 Sets) $1,770.00
  PDF File Set $1,770.00
FOUNDATION OPTIONS
  Crawlspace $400.00
  Slab $0.00
OTHER OPTIONS / ADD-ONS
  ICF Exterior Walls $300.00
  Right Reading Reverse $200.00
  Additional Set(s), Each $40.00
Square Footage House Plan Description
Heated Sq Ft: 4757
Main Floor: 2226
Upper Floor: 2531
Unfinished Sq ft

This is a modern beach house plan styled after the luxury beach homes of the caribbean coast. The interior of the home faces the pool courtyard which is filled with the sound of the waterfall wall. The family theatre is connected with the kitchen and provides a two story movie projection space. Living and dining are divided by a textured glass wall, and open to the pool with folding doors by Nanawall. The upper floor houses 5 bedroom suites, including one over the garage which could be a home office or artist's gallery.

Home Features
  Architectural Styles
Modern
Beachfront
Concrete Block/ ICF Design

  Building Lot Type
Flat Site

  Ceiling Height
9 Foot Ceiling
8 Foot Ceiling

  Exterior Wall Framing
2x8

  Exterior Wall Material
Stucco

  Garage Type
Attached Garage
Front Entry

  Kitchen Features
Kitchen Island
Nook/Breakfast Area
Walk-in Pantry
Peninsula/Eating Bar
Eat-In Kitchen

  Master Suite Features
Second Floor Master
Master Bathroom
Walk In Closet
Sitting Area
Private Deck

  Porches and Exterior Features
Courtyard
Covered Front Porch
Sundeck

  Roof Pitch
Other

  Roofing Material
Other Composites

  Roofing Type
Flat

  Special Feature
Split Bathroom
Second Level Laundry
Swimming Pool
Dining Room
Guest Room
Game Room
Main Level Laundry
Home Theater

House Plan : 116-1067 Images
Reverse Plan Images
   House Plan #116-1067
Image not available.

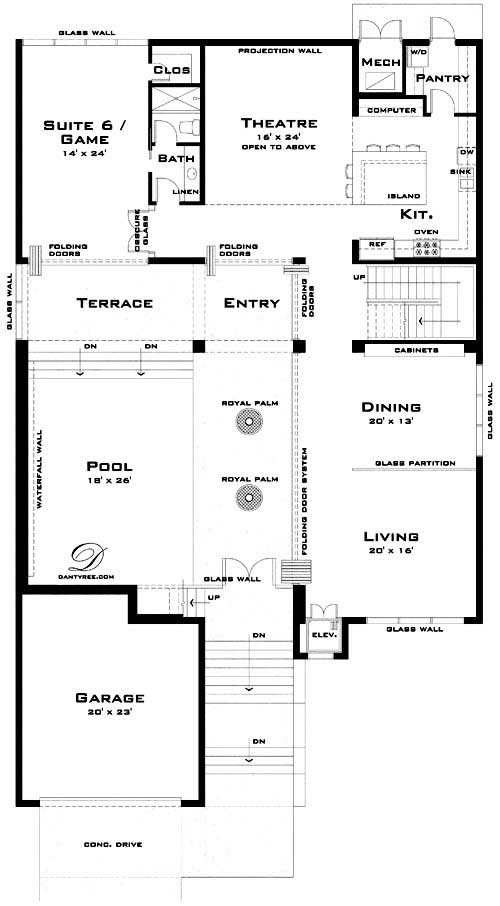

  Home Plan: 116-1067 Floor Plan Main Level
116-1067: Floor Plan Main Level

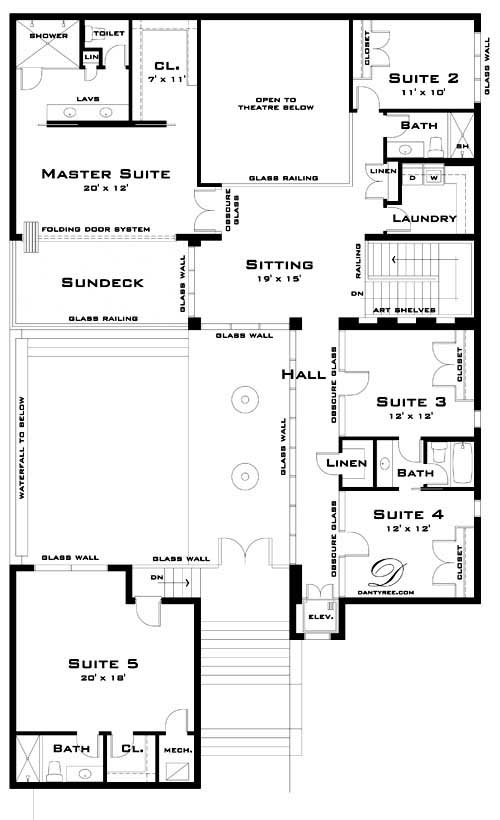

  Home Plan: 116-1067 Floor Plan Upper Level
116-1067: Floor Plan Upper Level
