House Plan #116-1024
Plan Name: 116-1024   Bedrooms: 3   Width: 82' 0"
Square Feet: 2269 Sq Ft.   Bathrooms: Full Baths: 3
Half Baths: 0
  Depth: 47' 0"
Floors: 2   Garage Bays: 2 Ridge Height: 25'
House Plan Main Image House Plan Pricing
Image not available.
  CAD File $1,200.00
  Minimum Construction Package (5 Sets) $1,200.00
  PDF File Set $1,200.00
  Crawlspace $450.00
  Slab $0.00
  Right Reading Reverse $200.00
Square Footage House Plan Description
Heated Sq Ft: 2269
Main Floor: 1291
Upper Floor: 978
Unfinished Sq ft

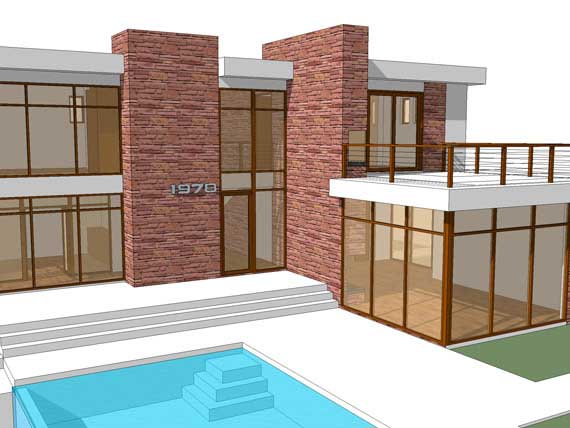

This modern house plan is a 70s Retro-Modern featuring an open floor plan, multiple entertaining terraces, and glass walls throughout. The style of this modern house highlights many strong features of modern design and living. The entry wraps around the infinity-edge pool and terrace. The lower floor features a spectacular glass office/bedroom, guest bath, and sunken kitchen / entertaining area. The upper floor features two unique bedroom suites. The Master Suite has a glass shower with two ceiling-mounted shower heads, and an outdoor fireplace sitting terrace.

Home Features
  Architectural Styles
Concrete Block/ ICF Design
  Building Lot Type
Flat Site
  Exterior Wall Framing
  Garage Type
Front Entry
Detached Garage
  Kitchen Features
Nook/Breakfast Area
Walk-in Pantry
Peninsula/Eating Bar
Eat-In Kitchen
  Master Suite Features
Master Bathroom
Sitting Area
Private Deck
Fireplace in Master
Second Floor Master
  Porches and Exterior Features
Covered Front Porch
  Special Feature
Swimming Pool
Dining Room
Home Office
Second Level Laundry
House Plan : 116-1024 Images
Reverse Plan Images
   House Plan #116-1024
Image not available.

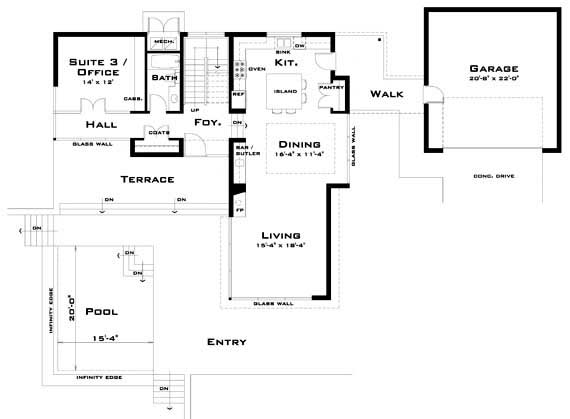

  Home Plan: 116-1024 Floor Plan First Story
Floor Plan First Story
  Home Plan: 116-1024 Floor Plan Second Story
Floor Plan Second Story
