House Plan #146-2517
Plan Name: 146-2517   Bedrooms: 4   Width: 114' 0"
Square Feet: 4783 Sq Ft.   Bathrooms: Full Baths: 4
Half Baths: 1
  Depth: 98' 0"
Floors: 1   Garage Bays: 3 Ridge Height: 29'

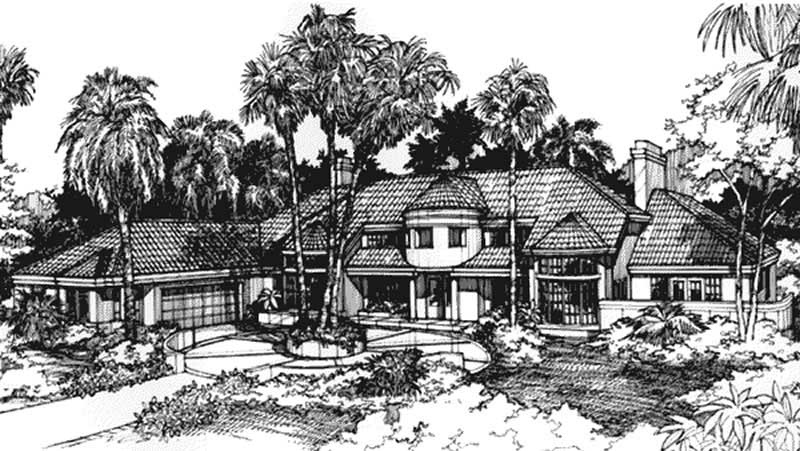

House Plan Main Image House Plan Pricing
Image not available.
  Minimum Construction Package (5 Sets) $1,160.00
  Standard Construction Package (8 Sets) $1,260.00
  PDF File Set $1,425.00
  Reproducible Master $1,425.00
  CAD File (Contact Us for Availability) $2,155.00
  Slab $0.00
  Materials List $200.00
  Mirror Reverse $50.00
  Additional Set(s), Each $40.00
Square Footage House Plan Description
Heated Sq Ft: 4783
Main Floor: 4783
Unfinished Sq ft

At the center of the plan, the expansive living/dining room opens right into the pool area. The family room and luxurious master suite also offer access to the pool and views of the screened lanai. A secluded master suite boasts a see-through fireplace and a private sitting room with outdoor access. Other extras in this home are a wine closet in the kitchen, a wet bar open to the pool area and a summer kitchen near the pool.

Home Features
  Architectural Styles
Florida Style
  Building Lot Type
Flat Site
  Exterior Wall Framing
  Exterior Wall Material
Two Fireplaces
  Garage Type
Attached Garage
Courtyard Entry
  Kitchen Features
Kitchen Island
Nook/Breakfast Area
Walk-in Pantry
Outdoor Kitchen
Peninsula/Eating Bar
Eat-In Kitchen
  Master Suite Features
Master Bathroom
Walk In Closet
Sitting Area
Private Deck
Main Floor Master
Fireplace in Master
  Porches and Exterior Features
Screened in Lanai
Covered Front Porch
  Roofing Material
  Roofing Type
  Special Feature
Vaulted Ceilings
Swimming Pool
Dining Room
Guest Room
Mud Room
Family Room
Main Level Laundry
House Plan : 146-2517 Images
Reverse Plan Images
   House Plan #146-2517
Image not available.
  Home Plan: 146-2517 Floor Plan First Story
Floor Plan First Story
