House Plan #165-1103
Plan Name: 165-1103   Bedrooms: 4   Width: 79' 0"
Square Feet: 5777 Sq Ft.   Bathrooms: Full Baths: 4
Half Baths: 0
  Depth: 74' 0"
Floors: 2   Garage Bays: 4 Ridge Height: 0'
House Plan Main Image House Plan Pricing
Image not available.
  Minimum Construction Package (5 Sets) $1,580.00
  Standard Construction Package (8 Sets) $1,830.00
  PDF File Set $1,845.00
  Reproducible Master $1,940.00
  CAD File $2,450.00
  Daylight Basement $0.00
  Mirror Reverse $50.00
  Additional Set(s), Each $30.00
Square Footage House Plan Description
Heated Sq Ft: 5777
Main Floor: 3042
Upper Floor: 2735
Unfinished Sq ft

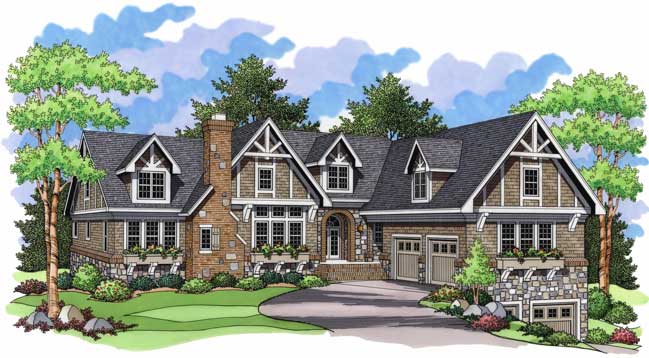

This outstanding Tudor-style home exhibits detailed peaks, an exterior of brick and cedar shake shingles, and a chimney accented by brick and stone. Inside, a fabulous reception area opens to the formal dining room, which features a beamed ceiling. Straight ahead, a wall of windows and a two-way fireplace make up the expansive family room. The combined dinette and kitchen share the other half of the fireplace. Here, a bay window with sliding doors accesses a unique curved deck; the kitchen's island and butler's pantry make meal preparation a breeze. Discover the master bedroom on the other side of the home. A tray ceiling, a bay window and a secluded bath with dual walk-in closets and an angled garden tub are revealed here. A private guest room with a full bath and a nice-sized closet sits in the front of the home. Downstairs, more luxury awaits. A recreation room, a game room with a kitchenette, and a wine room make up one half of this level; an exercise room and two bedrooms with walk-in closets and direct access to a shared split bath finish it off. Plans are provided for a future office above the garage.

Home Features
  Architectural Styles
  Building Lot Type
Down Site
Side Slope Site
  Ceiling Height
9 Foot Ceiling
  Exterior Wall Framing
  Exterior Wall Material
  Garage Type
Courtyard Entry
Under Main Floor Entry
Front Entry
Attached Garage
  Kitchen Features
Secondary Kitchen
Kitchen Island
Butler's Pantry
Nook/Breakfast Area
Walk-in Pantry
Peninsula/Eating Bar
Eat-In Kitchen
  Master Suite Features
Master Bathroom
Walk In Closet
Main Floor Master
  Porches and Exterior Features
Covered Front Porch
Covered Rear Porch
  Roof Pitch
  Roofing Material
Asphalt Shingles
  Roofing Type
  Special Feature
Dining Room
Guest Room
Mud Room
Family Room
Game Room
Main Level Laundry
Media Room
Wine Cellar
Split Bathroom
Exercise Room
House Plan : 165-1103 Images
Reverse Plan Images
   House Plan #165-1103
Image not available.
  Home Plan: 165-1103 Floor Plan First Story
Floor Plan First Story
  Home Plan: 165-1103 Floor Plan Basement
Floor Plan Basement
