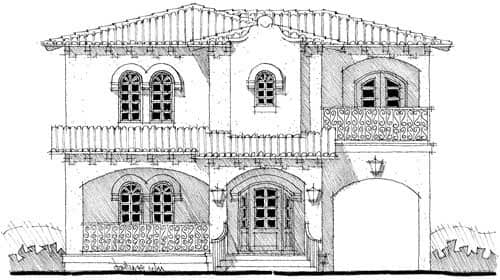

Front elevation of Mediterranean home (ThePlanCollection: House Plan #116-1008)
4-Bedroom, 3862 Sq Ft Mediterranean House Plan - 116-1008 - Front Exterior

About Plan # 116-1008

About Plan # 116-1008

3862 SQUARE FEET 4 BEDROOMS 3 FULL BATH 0 HALF BATH
2 FLOOR 35' 0" WIDTH 66' 0" DEPTH 2 GARAGE BAY

The plan number 116-1008 is a true Mediterranean style home plan. The open downstairs living space is designed for elegant period entertaining, and showcases thickened walls, arches, and decorative ceilings. The upstairs provides a gracious master suite, secondary bedrooms, and an outdoor terrace. Plan number 116-1008.

Each plan set includes the following:

  • Floor plans
  • Exterior elevations
  • Building sections
  • Foundation plan
  • Floor & Roof structure layouts
  • Wall section
  • Notes
  • Electrical layout (switches, outlets)
  • Unlimited license

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

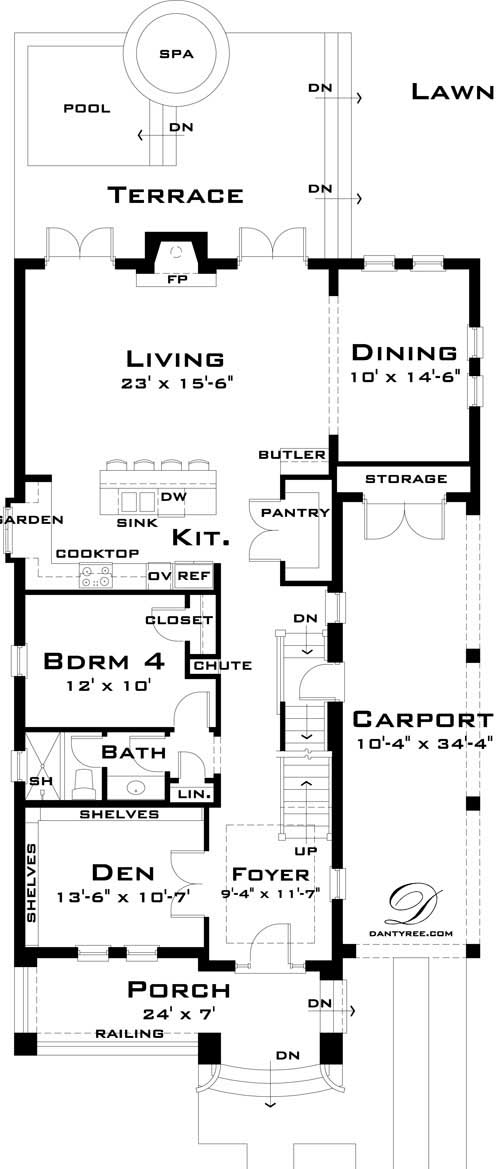

Home Plan: #116-1008 Floor Plan First Story - first story Floor Plan First Story of Mediterranean Plan #116-1008

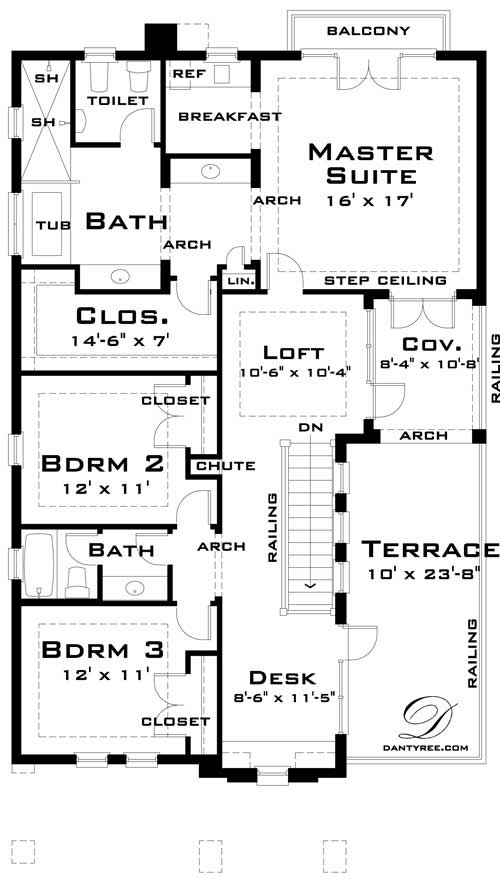

#116-1008 Floor Plan Second Story - second story Floor Plan Second Story of Mediterranean Plan #116-1008

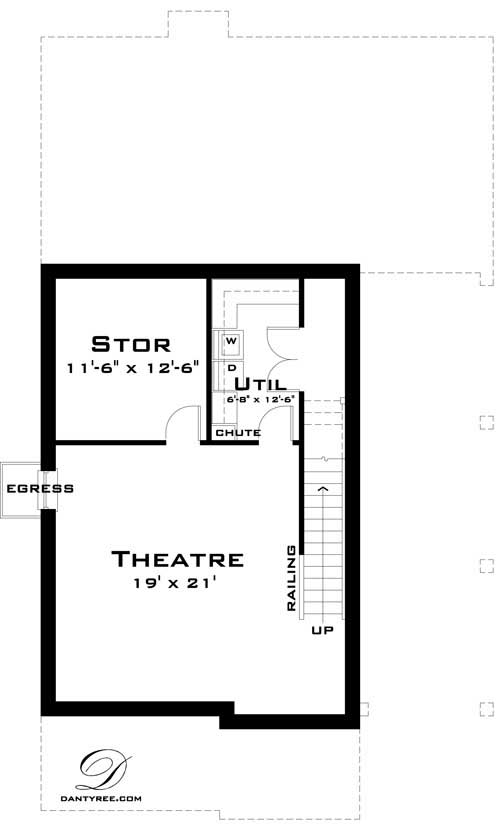

#116-1008 Floor Plan Basement - basement Floor Plan Basement of Mediterranean Plan #116-1008
Home Plan: #116-1008 Floor Plan First Story - first story Floor Plan First Story of Mediterranean Plan #116-1008
#116-1008 Floor Plan Second Story - second story Floor Plan Second Story of Mediterranean Plan #116-1008
#116-1008 Floor Plan Basement - basement Floor Plan Basement of Mediterranean Plan #116-1008
