French houseplans EDG-4926 color elevation.
Home Plan Rear Elevation for this set of french house plans.
4-Bedroom, 4926 Sq Ft French House Plan - 127-1033 - Front Exterior
Home Plan Rear Elevation for this set of french house plans.

About Plan # 127-1033

About Plan # 127-1033

4926 SQUARE FEET 4 BEDROOMS 4 FULL BATH 1 HALF BATH
2 FLOOR 87' 10" WIDTH 98' 3" DEPTH 3 GARAGE BAY
French home plans EDG-4926 have an amazing floor plan and exterior design! The main level floor plan has a large spiral staircase leading to a tower on the second floor just to the left of where you enter. The first floor plan also has the the kitchen, dining room, the master suite, laundry room, and an elevator. The second floor plan has an upper gallery, a bonus room above the garage, and 3 bedroom suites. The bonus room above the garage would make a convenient game room or office.

Each plan set includes the following:

  • COVER PAGE
  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • FIRST FLOOR FRAMING (and Second and Third Floor Framing if applicable)
  • CEILING FRAMING
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

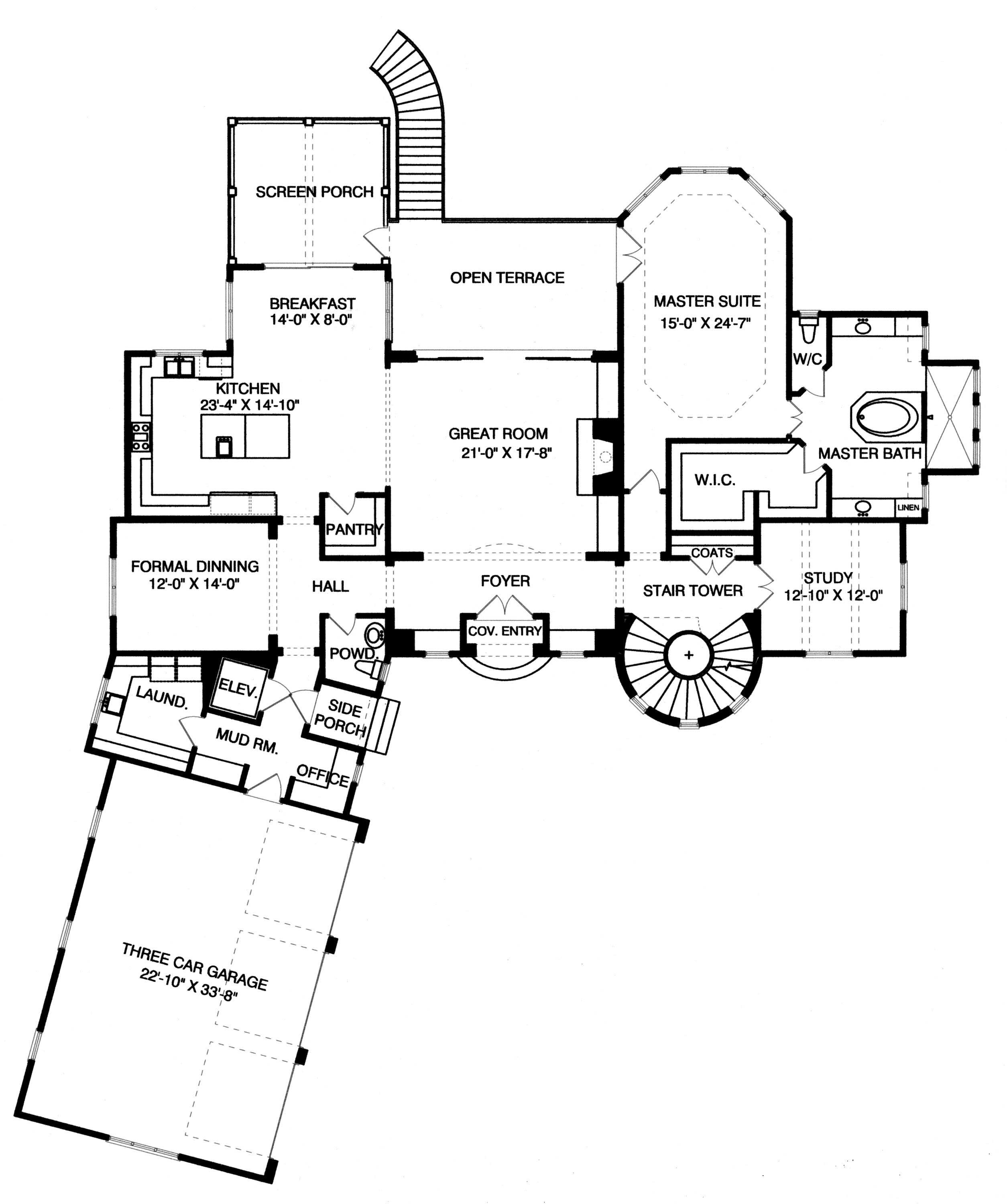

Home Plan: #127-1033 Floor Plan First Story - first story Floor Plan First Story of French Plan #127-1033

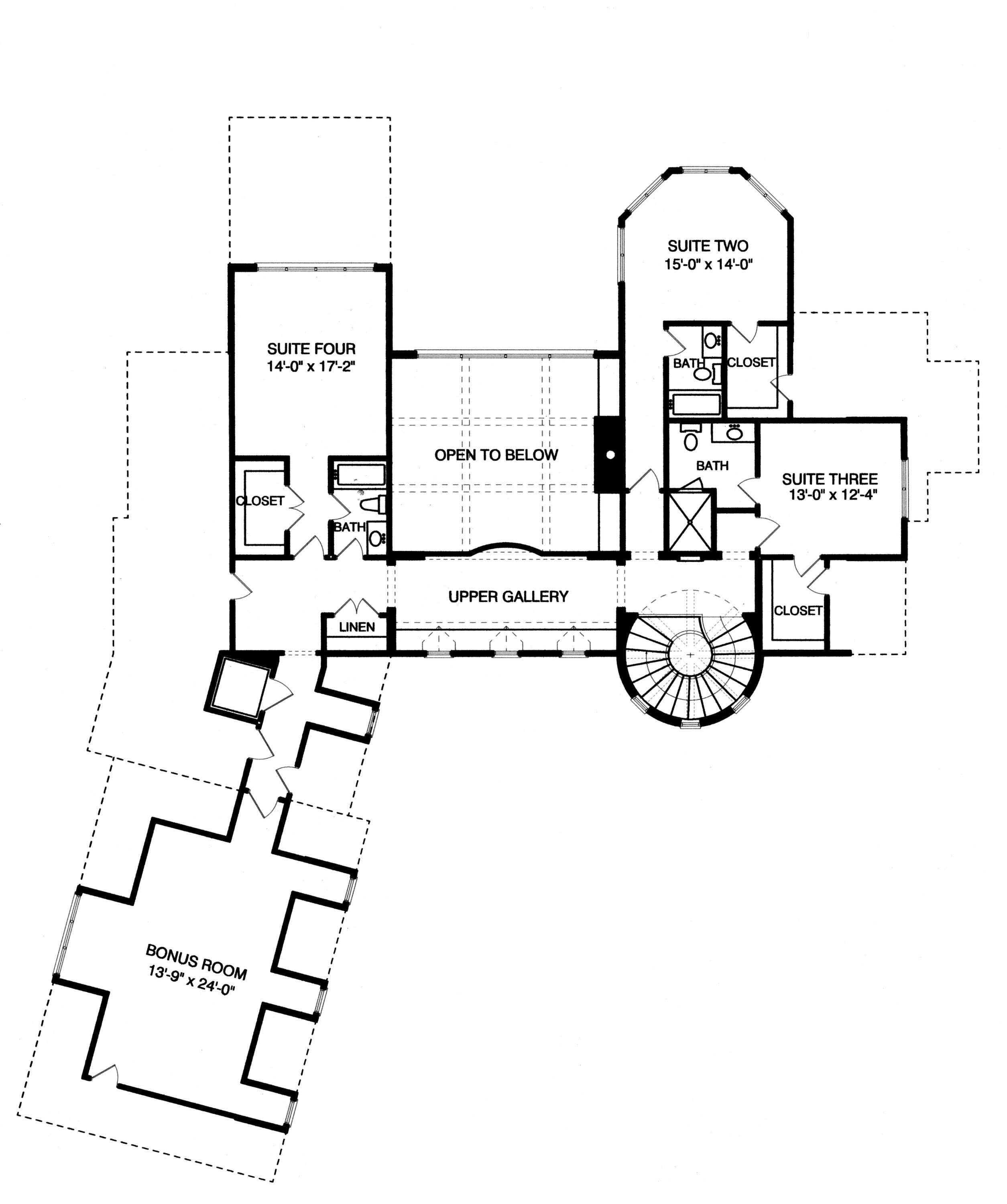

#127-1033 Floor Plan Second Story - second story Floor Plan Second Story of French Plan #127-1033
Home Plan: #127-1033 Floor Plan First Story - first story Floor Plan First Story of French Plan #127-1033
#127-1033 Floor Plan Second Story - second story Floor Plan Second Story of French Plan #127-1033
