House Plan #102-1016
Plan Name: 102-1016   Bedrooms: 5   Width: 52' 0"
Square Feet: 3038 Sq Ft.   Bathrooms: Full Baths: 3
Half Baths: 1
  Depth: 44' 0"
Floors: 2   Garage Bays: 2 Ridge Height: 0'

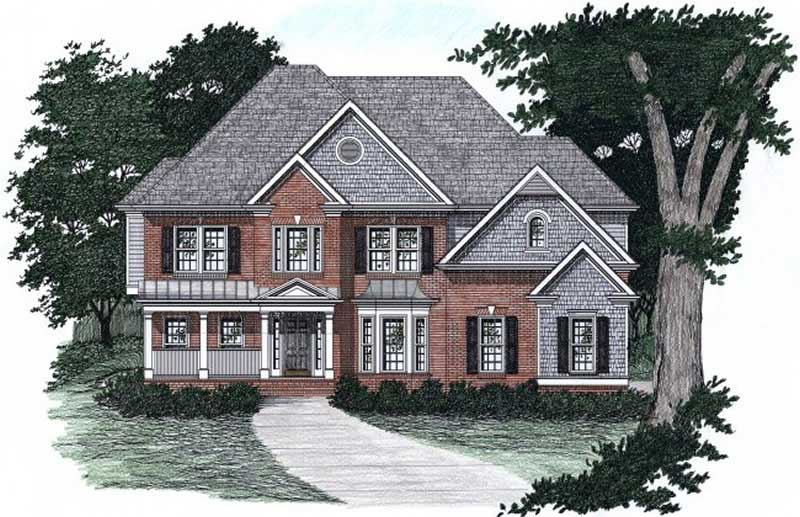

House Plan Main Image House Plan Pricing
Image not available.
  Minimum Construction Package (6 Sets) $1,250.00
  PDF File Set $1,600.00
  Reproducible Master $1,600.00
  CAD File $2,000.00
  Basement $0.00
  Slab $0.00
  Right Reading Reverse $100.00
  Additional Set(s), Each $40.00
  Mirror Reverse $0.00
Square Footage House Plan Description
Heated Sq Ft: 3038
Main Floor: 1567
Upper Floor: 1471
Unfinished Sq ft

This home is a 2 level home with 5 bedrooms and 3.5 baths. Two-story family room and foyer. Walk-in pantry, spacious breakfast area and living room. Trey ceilings in Master bedroom and attached large bathroom. Attached two-car garage, upper level laundry. Note: width is incorrect on the image. The actual width is 52'

Home Features
  Architectural Styles
  Ceiling Height
8 Foot Ceiling
  Exterior Wall Material
Vinyl Siding
  Garage Type
Attached Garage
  Kitchen Features
Walk-in Pantry
  Roofing Type
  Special Feature
Family Room
House Plan : 102-1016 Images
Reverse Plan Images
   House Plan #102-1016
Image not available.
  Home Plan: 102-1016 Main Floor Plan
Main Floor Plan
  Home Plan: 102-1016 Upper Level Floor Plan
Upper Level Floor Plan
