About Plan # 102-1002

About Plan # 102-1002

1883 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 63' 4" WIDTH 56' 0" DEPTH 2 GARAGE BAY

This brick ranch house plan features an optional basement, open foyer, pantry, large master bedroom with a sitting are, trey ceiling, walk-in closet, and large bath, an exterior deck, 3 bedrooms, 2 baths, main level laundry, attached two-car garage, and separate dining and breakfast rooms.

Each plan set includes the following:

Front Elevation & Cabinet Details
Floor Plan with Electrical Layout (location of outlets, switches, etc. - it does not have wiring schematics)
Side Elevations
Roof Plan (Birdseye view)
Foundation Plan & Details
Cross Sections & Details
Connection Details & Trim

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

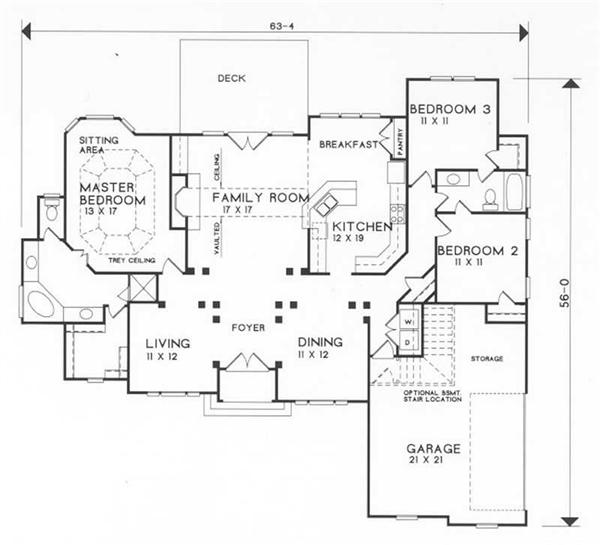

Home Plan: #102-1002 Floor Plan First Story - main Floor Plan First Story of Ranch Plan #102-1002
Home Plan: #102-1002 Floor Plan First Story - main Floor Plan First Story of Ranch Plan #102-1002
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 102-1002
Floors:
1
Bedrooms:
3
Full Baths:
2
Garage :
2

Square Footage

Heated Sq Feet:
1883
Main Floor:
1883
Unfinished Sq Ft:
Garage :
441

Dimensions

Width:
63' 4"
Depth:
56' 0"

Architectural Styles

Country
European
Ranch
French
Southern
Traditional
Texas Style

Exterior Wall Material

Brick

Roofing Type

Gable

Roofing Material

Asphalt Shingles

Ceiling Height

9 Foot Ceiling

Special Feature

Fireplace
Main Level Laundry

Garage Type

Attached Garage
Side Entry

Fireplaces

One Fireplace

Building Lot Type

Flat Site
Corner Lot

Kitchen Features

Butler's Pantry
Nook/Breakfast Area
Peninsula/Eating Bar

Porches and Exterior Features

Covered Front Porch

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet
Split Master Bedroom

PRICING OPTIONS

Six full printed sets with a license to build one home. This is the minimum number of sets you can build from.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

A full set of construction drawings printed on a reproducible medium. Allows you to make as many copies as needed. Includes license to build one home and a copyright release to make as many modifications as you see fit. Delivered by mail.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.
