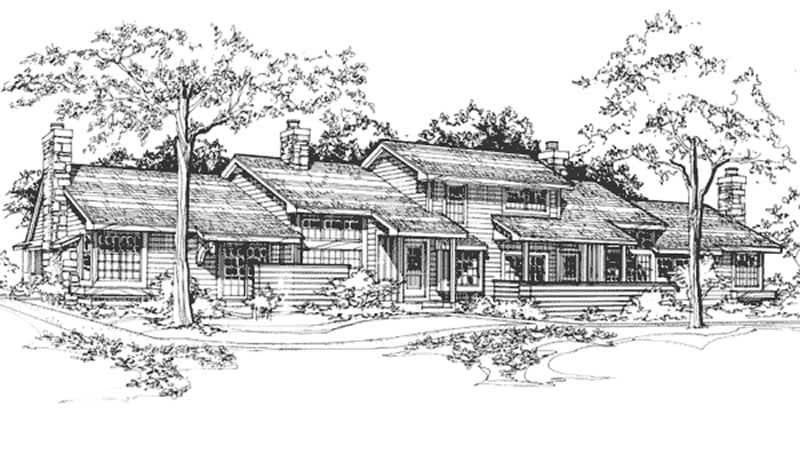

Front view of Duplex/Multi-Unit home (ThePlanCollection: House Plan #146-2746)
2-Bedroom, 1509 Sq Ft Duplex/Multi-Unit House Plan - 146-2746 - Front Exterior

About Plan # 146-2746

About Plan # 146-2746

1509 SQUARE FEET 2 BEDROOMS 1 FULL BATH 1 HALF BATH
2 FLOOR 48' 0" WIDTH 45' 0" DEPTH 1 GARAGE BAY
Unit A is a smart one-floor plan, with special touches like the walk-in closet and the lavatory in the master bedroom, the open kitchen, and the cozy fireplace. The den provides a comfortable retreat, and can easily function as a spare bedroom. Unit B is a pragmatist's dream; unloading groceries is a piece of cake, thanks to the conveniently located pantry just inside the back entrance. A vaulted living area offers a versatile gathering space, and the dining nook can be dressed up or down for casual or formal meals. Family and guests alike will appreciate the half bath on the main level, which eliminates the necessity of constant clean-up of the family living quarters above. The sleeping quarters are nestled on the second floor, and both bedrooms share a full bath. The second bedroom could also work well as a studio or home office.

Each plan set includes the following:



Foundation plan

Exterior elevations

Floor plans

Cross-sections

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

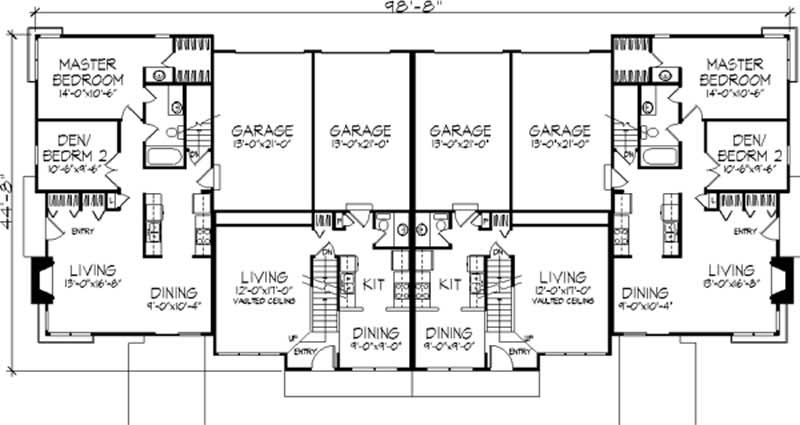

Home Plan: #146-2746 Floor Plan First Story - main level Floor Plan First Story of Multi-Unit Plan #146-2746

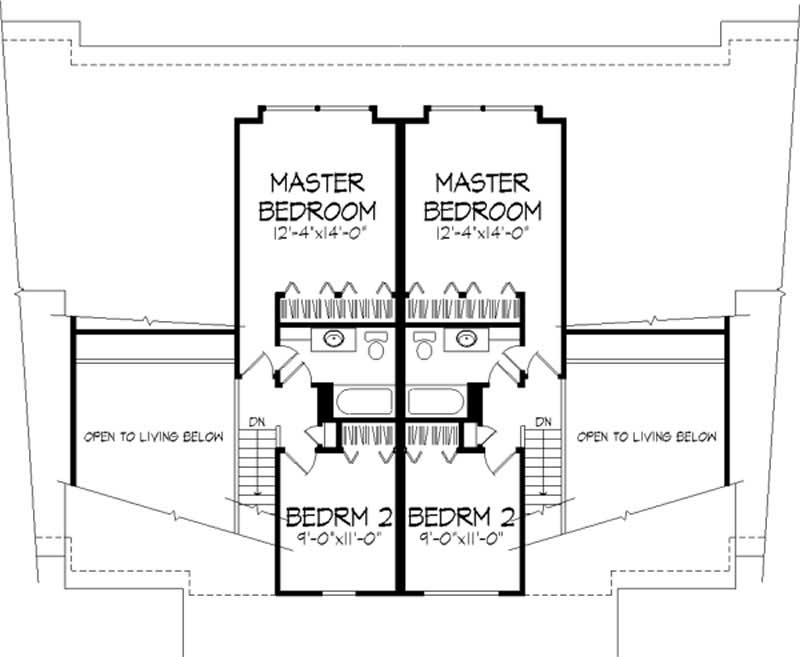

#146-2746 Floor Plan Second Story - upper level Floor Plan Second Story of Multi-Unit Plan #146-2746
Home Plan: #146-2746 Floor Plan First Story - main level Floor Plan First Story of Multi-Unit Plan #146-2746
#146-2746 Floor Plan Second Story - upper level Floor Plan Second Story of Multi-Unit Plan #146-2746
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 146-2746
Floors:
2
Bedrooms:
2
Full Baths:
1
Half Baths:
1

Square Footage

Heated Sq Feet:
1509
Main Floor:
921
Upper Floor:
588
Unfinished Sq Ft:

Dimensions

Width:
48' 0"
Depth:
45' 0"
Ridge Height:
26-0' 0"

Architectural Styles

Duplex/Multi-Unit

Exterior Wall Material

Wood Siding

Roofing Type

Gable

Special Feature

Fireplace
Guest Room
Home Office

Garage Type

Attached Garage

Fireplaces

One Fireplace

Exterior Wall Framing

2x4

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals. This file may be available. Please call or email us first so we can confirm for you. This set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
