House Plan #146-2747
Photographs may reflect modified designs. Copyright held by designer.

About Plan # 146-2747

About Plan # 146-2747

House Plan Details

1737 SQUARE FEET 2 BEDROOMS 2 FULL BATH 1 HALF BATH
2 FLOOR 105' 0" WIDTH 103' 0" DEPTH 2 GARAGE BAY

House Plan Description

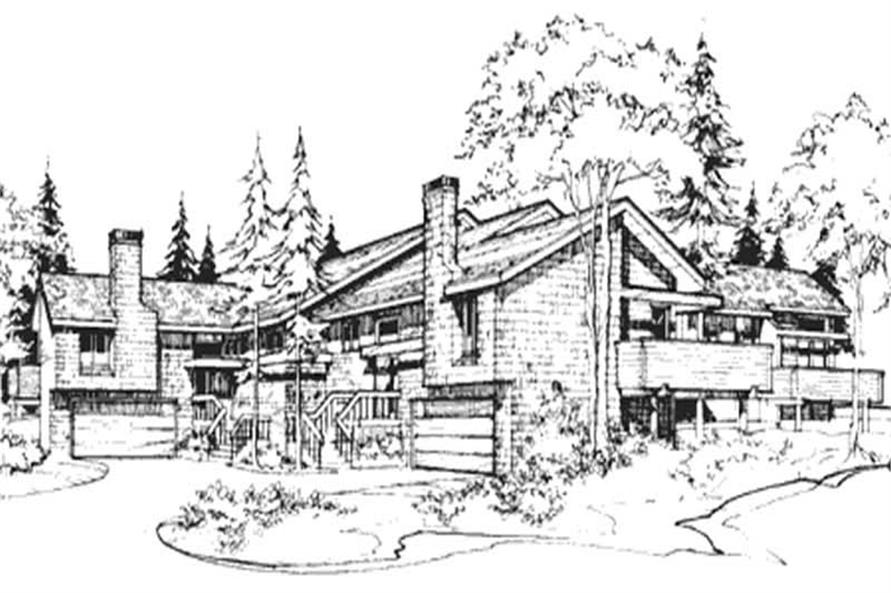

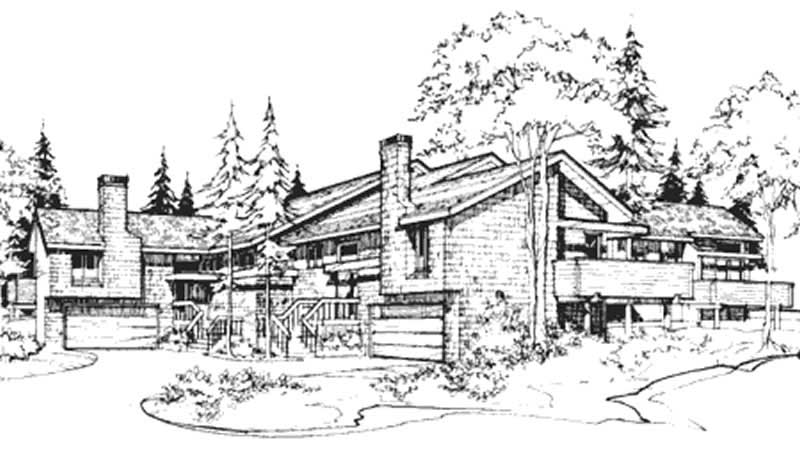

This cedar-sided fourplex looks great in a rustic setting. Unit A's main floor consists of a galley-style kitchen that serves both formal and informal dining areas. Two master suites each feature a private bath. Downstairs there's a family room with a wet bar. Unit B's main floor consists of a living room and a dining room that flow together for ease in entertaining. The master suite has a private bath. A nearby den may serve as a second bedroom or a nursery. Downstairs there's a family room with a wet bar.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Floor Plans

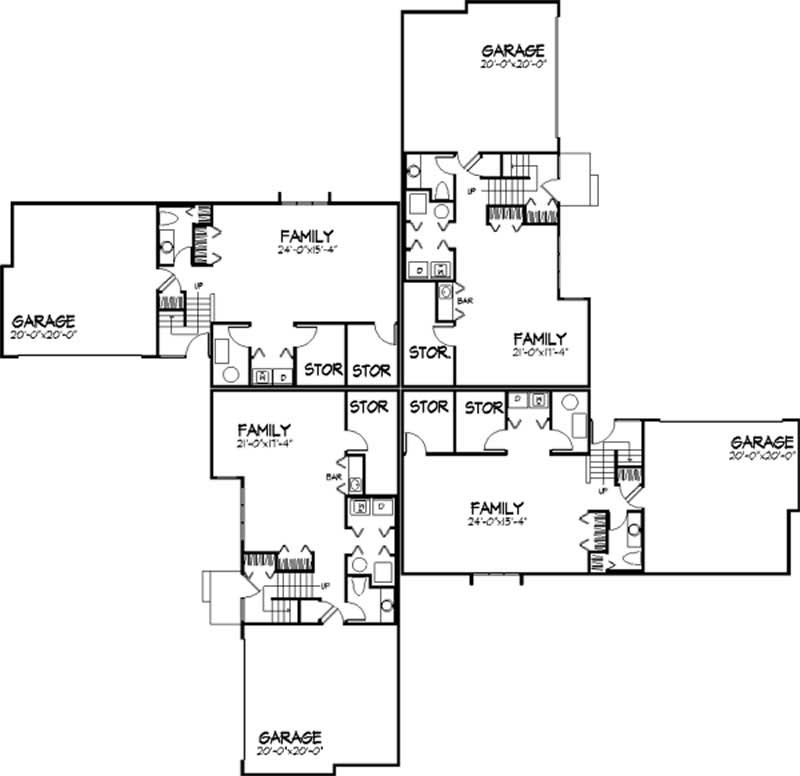

Home Plan: #146-2747 Floor Plan First Story First Floor

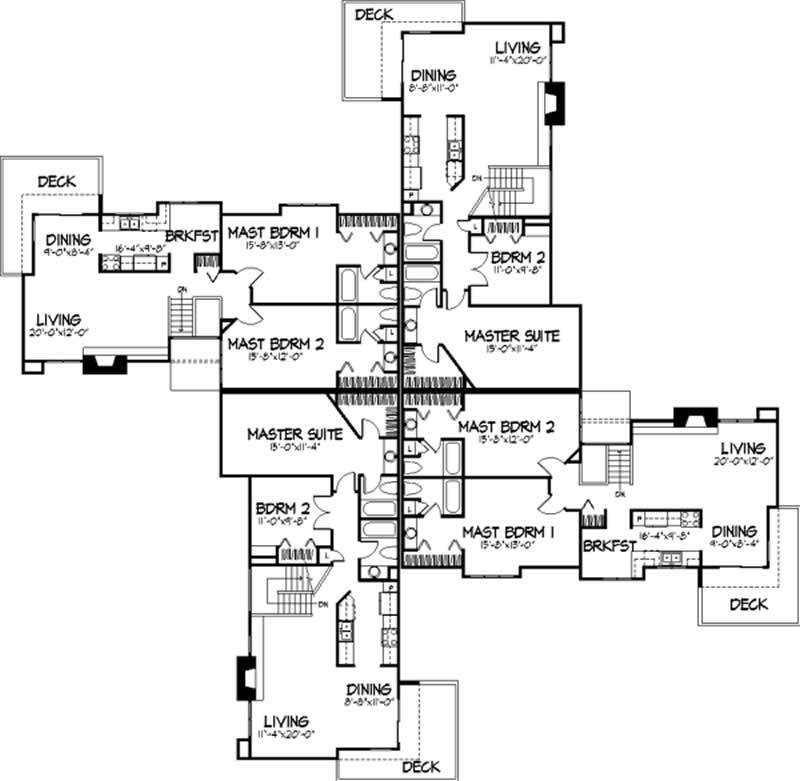

Home Plan: #146-2747 Floor Plan Second Story Second Floor
Home Plan: #146-2747 Floor Plan First Story - Main Level First Floor
Home Plan: #146-2747 Floor Plan Second Story - Upper Level Second Floor

Plan specs and features

Summary Information

House Plan:
# 146-2747
Floors:
2
Bedrooms:
2
Full Baths:
2
Half Baths:
1

Square Footage

Heated Sq Feet:
1737
Main Floor:
690
Upper Floor:
1047
Unfinished Square Feet:

Dimensions

Width:
105' 0"
Depth:
103' 0"
Ridge Height:
32-0' 0"

Architectural Styles

Multi-Unit

Exterior Wall Material

Wood Siding

Roofing Type

Gable

Special Feature

Dining Room
Family Room

Garage Type

Attached Garage
Front Entry

Fireplaces

One Fireplace

Exterior Wall Framing

2x4

Master Suite Features

Two or More Master Suites

PRICING OPTIONS

This package includes a license to build a single house plus full construction drawings with the minimum number of sets needed to build your own home.

This package includes a license to build a single house plus full construction drawings and tends to be the best value for someone who is ready to start building. Once the process begins, a number of people will require their own set of blueprints - your builder, the subcontractors, local building officials, the mortgage lender and you.

A full set of construction drawings in an electronic format provides many advantages over printed blueprint packages and reproducible masters. You can make multiple copies at a local copy center using the paper size your choice. If you need to make modifications, a design professional can do so typically the same way a reproducible master would be modified. The PDF File Set can be emailed directly to you - often the same day or within 1 business day of your order. Purchase of this PDF File Set constitutes a license to build a single house only.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.


All house plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original house plan was drawn.


The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plans herein carefully.
