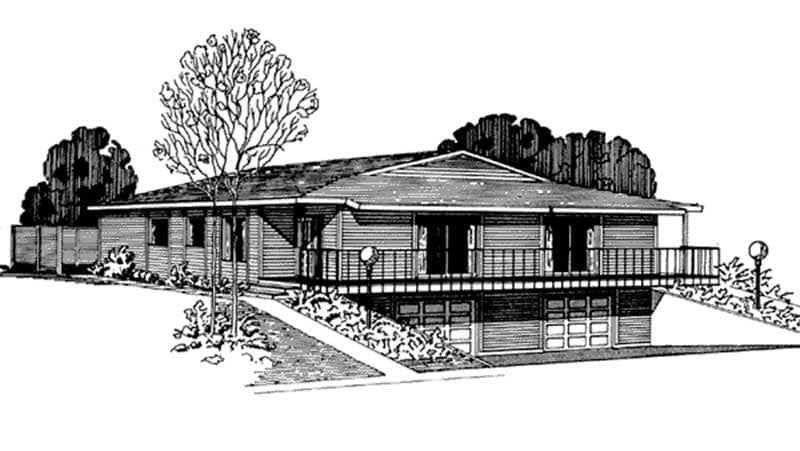

Main image for house plan # 21261
Photographs may reflect modified designs. Copyright held by designer.
View Additional Images (click image to enlarge)

House Plan # 146-2645

Best Price Guaranteed

Floors: 1
Living Sq Feet: 1625
Bedrooms: 2
Full Baths: 1
Half Baths: 0
Garage Bays: 1
Width: 40' 0"
Depth: 56' 0"
ADD TO CART

View All Price Options

Ask a Question

  pinit     Houzz   ShareThis


HOUSE PLAN DESCRIPTION
This well-planned duplex allows two families to share expenses, while maintaining separate, private residences. Each unit features a good-sized living room that flows into the adjacent dining room. This thoughtful design allows for ease in entertaining. At the rear of the home, two bedrooms share a centrally located hall bath.
Reverse Plan Images
FLOOR PLANS

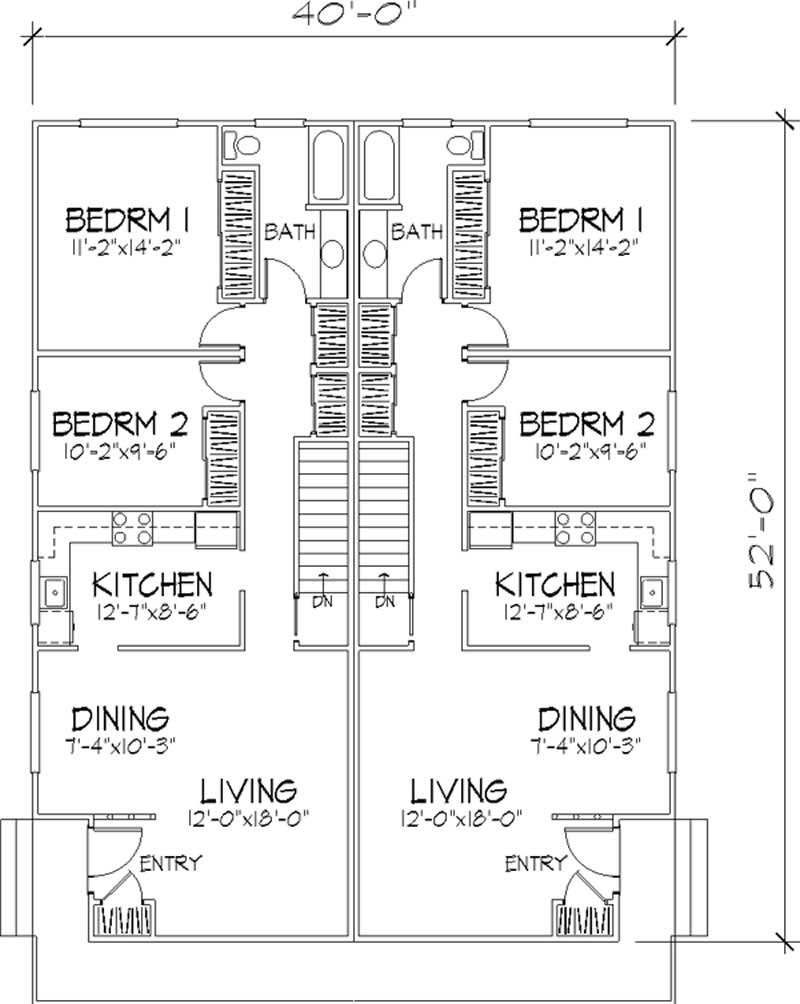

Home Plan : # 146-2645 Floor Plan
Floor Plan LS-H-52752
Copyright held by designer.

PLAN SPECS & FEATURES

Summary Information
House Plan: #146-2645
Floors: 1
Bedrooms: 2
Full Baths: 1
Half Baths: 0
Garage Bays: 1
DIMENSIONS
Width: 40' 0"
Depth: 56' 0"
SQUARE FOOTAGE
Heated Sq Feet: 1625
Main Floor: 1013
Lower Floor: 612


Architectural Styles
Ranch
Multi-Unit
Condominiums

Building Lot Type
Up Site

Framing
Exterior Wall Framing:    2x4

Exterior Wall Material
Wood Siding

Garage Type
Attached Garage

Porches and Exterior Features
Sundeck

Roofing Material
Asphalt Shingles

Roofing Type
Gambrel

Special Feature
Dining Room
Apartment


PRICING OPTIONS

ADD TO CART

You can select your plan package and options once the plan has been added to the cart

Plan Package and Pricing Help
PLAN PACKAGES: HOUSE PLAN # 146-2645
Minimum Construction Package (5 Sets) $695.00
Standard Construction Package (8 Sets) $800.00
PDF File Set $980.00
Reproducible Master $980.00
CAD File (Contact Us for Availability) $1585.00
FOUNDATION OPTIONS
Basement $0.00
OTHER OPTIONS / ADD-ONS
Materials List $200.00
Mirror Reverse $50.00
Additional Set(s), Each $40.00
