House Plan #117-1052
Plan Name: 117-1052   Bedrooms: 5   Width: 83' 7"
Square Feet: 5407 Sq Ft.   Bathrooms: Full Baths: 6
Half Baths: 0
  Depth: 83' 8"
Floors: 2   Garage Bays: 0 Ridge Height: 39-7'
House Plan Main Image House Plan Pricing
Image not available.
  Minimum Construction Package (5 Sets) $1,345.00
  Standard Construction Package (8 Sets) $1,645.00
  PDF File Set $1,845.00
  CAD File $2,995.00
  Study Set (Construction Bid Set) $945.00
  Basement $400.00
  Daylight Basement $300.00
  Basement $0.00
  Crawlspace $0.00
  Slab $0.00
  Additional Set(s), Each $100.00
  Right Reading Reverse $100.00
  Additional Set(s), Each $50.00
Square Footage House Plan Description
Heated Sq Ft: 5407
Main Floor: 3823
Upper Floor: 1584
Unfinished Sq ft

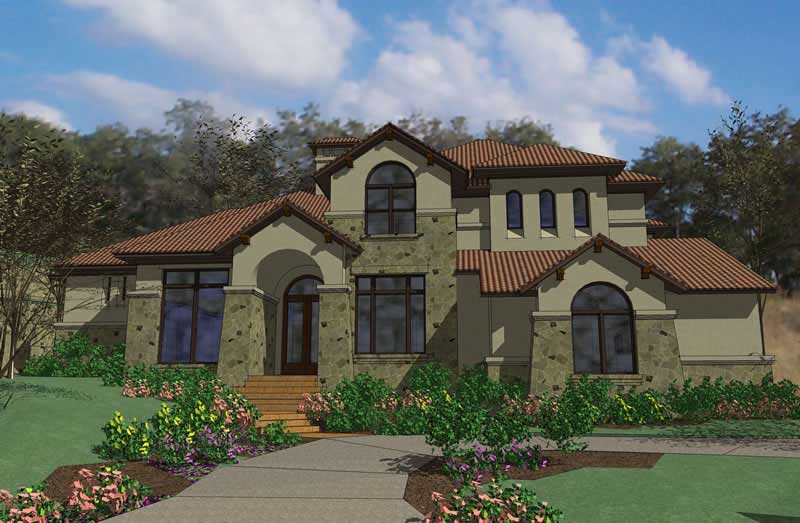

An elegant courtyard and front porch welcome guests to this attractive and spacious two-story, five-bedroom Southwest home. Check out the delightful asymmetrical exterior in earth tones, arched door/windows, and red-tiled roof. Walk through the foyer into the formal living room, family room, kitchen, peninsula/eating bar. The master suite with a private deck is on the main level as well as two bedrooms, dining room, study, covered lanai, outdoor cooking porch, and a pool. On the second floor are two more bedrooms, a game room, and media room.

Home Features
  Architectural Styles
Texas Style
  Exterior Wall Framing
  Garage Type
Side Entry
Attached Garage
  Kitchen Features
Kitchen Island
Butler's Pantry
Walk-in Pantry
Peninsula/Eating Bar
  Master Suite Features
Main Floor Master
Master Bathroom
Walk In Closet
Private Deck
  Porches and Exterior Features
Covered Lanai
  Special Feature
Exercise Room
Dining Room
Family Room
Game Room
Main Level Laundry
Media Room
House Plan : 117-1052 Images
Reverse Plan Images
   House Plan #117-1052
Image not available.
  Home Plan: 117-1052 Main Floor Plan
Main Floor Plan DW5407
  Home Plan: 117-1052 Second Floor Plan
Second Floor Plan DW5407
