House Plan #117-1009
Plan Name: 117-1009   Bedrooms: 3   Width: 56' 0"
Square Feet: 1883 Sq Ft.   Bathrooms: Full Baths: 2
Half Baths: 0
  Depth: 58' 0"
Floors: 1   Garage Bays: 0 Ridge Height: 26'

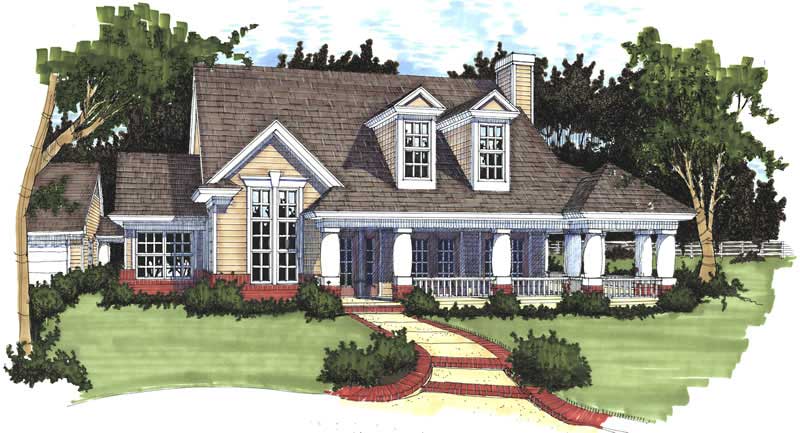

House Plan Main Image House Plan Pricing
Image not available.
  Minimum Construction Package (5 Sets) $600.00
  Standard Construction Package (8 Sets) $700.00
  Reproducible Master $1,000.00
  CAD File $1,200.00
  Study Set (Construction Bid Set) $500.00
  Basement $200.00
  Crawlspace $0.00
  Slab $0.00
  Right Reading Reverse $100.00
  Additional Set(s), Each $50.00
Square Footage House Plan Description
Heated Sq Ft: 1883
Main Floor: 1883
Unfinished Sq ft

This is a lovely single story house plan with 1883 total square feet. Some of the special features of this plan include: Covered wrap around porches Large Master WIC Optional Bonus area in Attic 14' Family ceiling Dormer/skylights light up Family Island Kitchen/breakfast bar

Home Features
  Architectural Styles
Texas Style
  Ceiling Height
9 Foot Ceiling
  Exterior Wall Framing
  Garage Type
Detached Garage
  Kitchen Features
Kitchen Island
Nook/Breakfast Area
  Master Suite Features
Main Floor Master
Master Bathroom
Walk In Closet
  Porches and Exterior Features
Wrap Around Porch
Covered Rear Porch
  Roof Pitch
  Special Feature
Main Level Laundry
House Plan : 117-1009 Images
Reverse Plan Images
   House Plan #117-1009
Image not available.
  Home Plan: 117-1009 Main Floor Plan
Main Floor Plan DW1883
