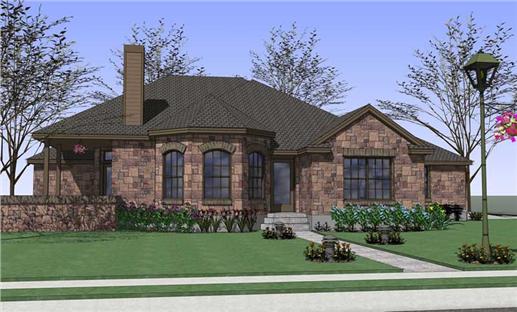

Front elevation of Ranch home (ThePlanCollection: House Plan #117-1047)
117-1047: Home Plan Rear Elevation
117-1047: Home Plan Left Elevation
117-1047: Home Plan Right Elevation
117-1047: Home Other Image-Front View
117-1047: Home Other Image-Front View
117-1047: Home Other Image-Front View
4-Bedroom, 1512 Sq Ft Ranch House Plan - 117-1047 - Front Exterior
117-1047: Home Plan Rear Elevation
117-1047: Home Plan Left Elevation
117-1047: Home Plan Right Elevation
117-1047: Home Other Image-Front View
117-1047: Home Other Image-Front View
117-1047: Home Other Image-Front View

About Plan # 117-1047

About Plan # 117-1047

1512 SQUARE FEET 4 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 66' 2" WIDTH 42' 9" DEPTH 2 GARAGE BAY

This beautiful single-story traditional home offers so much in only 1512 living square feet. Some of this home’s special features include a covered porch, a large master suite with a spacious walk-in closet, a master bath featuring a separate soaking tub and shower, generous secondary bedrooms, and a great family room with a fireplace. This is a truely remarkable one-story home.

Each plan set includes the following:

  • Detailed floor plans
  • Exterior elevations
  • Cabinet elevations
  • Sections/Details
  • Framing plans
  • Foundation plans
  • Electrical layout

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

Home Plan: #117-1047 Floor Plan First Story - main level Floor Plan First Story of Ranch Plan #117-1047
Home Plan: #117-1047 Floor Plan First Story - main level Floor Plan First Story of Ranch Plan #117-1047
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 117-1047
Floors:
1
Bedrooms:
4
Full Baths:
2
Garage :
2

Square Footage

Heated Sq Feet:
1512
Main Floor:
1512
Unfinished Sq Ft:
Garage :
439

Dimensions

Width:
66' 2"
Depth:
42' 9"
Ridge Height:
20' 8"

Architectural Styles

Country
Ranch
Traditional
Transitional
Coastal
Texas Style

Roof Pitch

8/12

Special Feature

Fireplace
Dining Room
Family Room
Main Level Laundry

Garage Type

Attached Garage
Side Entry

Fireplaces

One Fireplace

Exterior Wall Framing

2x4

Building Lot Type

Flat Site
Corner Lot

Kitchen Features

Nook/Breakfast Area
Walk-in Pantry
Eat-In Kitchen

Porches and Exterior Features

Covered Front Porch

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet
Split Master Bedroom

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

Five printed sets and a NON-modifiable, print-only PDF with a complete set of working drawings. The PDF is emailed while the 5 sets ship. Comes with a license to build one home.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
