House Plan #146-2416
Plan Name: 146-2416   Bedrooms: 2   Width: 35' 0"
Square Feet: 684 Sq Ft.   Bathrooms: Full Baths: 1
Half Baths: 0
  Depth: 51' 0"
Floors: 1   Garage Bays: 2 Ridge Height: 16-0'

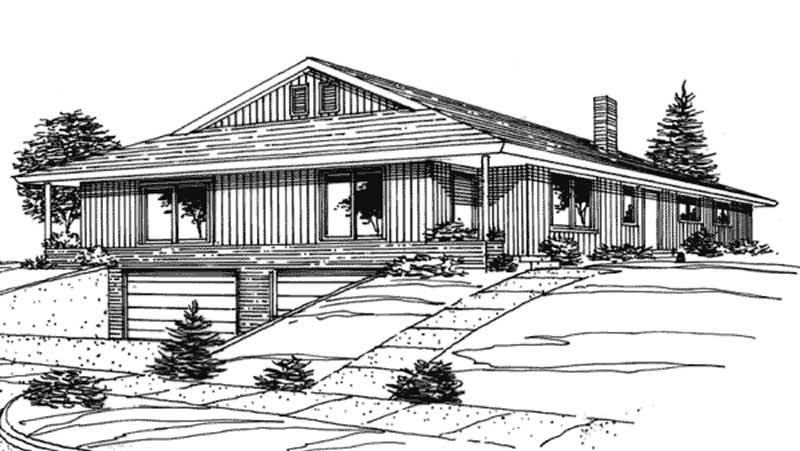

House Plan Main Image House Plan Pricing
Image not available.
CONSTRUCTION SETS
  Minimum Construction Package (5 Sets) $1,160.00
  Standard Construction Package (8 Sets) $1,260.00
  PDF File Set $1,425.00
  Reproducible Master $1,425.00
  CAD File (Contact Us for Availability) $2,155.00
FOUNDATION OPTIONS
  Daylight Basement $0.00
OTHER OPTIONS / ADD-ONS
  Materials List $200.00
  Mirror Reverse $50.00
  Additional Set(s), Each $40.00
Square Footage House Plan Description
Heated Sq Ft: 684
Main Floor: 684
Unfinished Sq ft
Lower Floor: 510

In this duplex design, the living and dining areas flow together to create a large expanse suitable for entertaining. A coat closet is a handy plus. The efficient galley kitchen easily serves the dining area and boasts access to the outdoors. Two nicely-sized bedrooms share a full bath.

Home Features
  Architectural Styles
Multi-Unit

  Exterior Wall Framing
2x4

  Exterior Wall Material
Wood Siding

  Garage Type
Attached Garage
Under Main Floor Entry

  Roof Pitch
4/12

  Roofing Type
Gable

House Plan : 146-2416 Images
Reverse Plan Images
   House Plan #146-2416
Image not available.
  Home Plan: 146-2416 Main Level
First Floor
