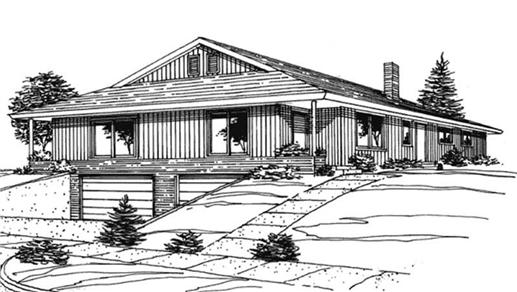

2-Bedroom, 684 Sq Ft Duplex/Multi-Unit House Plan - 146-2416 - Front Exterior

About Plan # 146-2416

About Plan # 146-2416

684 SQUARE FEET 2 BEDROOMS 1 FULL BATH 0 HALF BATH
1 FLOOR 35' 0" WIDTH 51' 0" DEPTH 2 GARAGE BAY
In this duplex design, the living and dining areas flow together to create a large expanse suitable for entertaining. A coat closet is a handy plus. The efficient galley kitchen easily serves the dining area and boasts access to the outdoors. Two nicely-sized bedrooms share a full bath.

Each plan set includes the following:



Foundation plan

Exterior elevations

Floor plans

Cross-sections

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

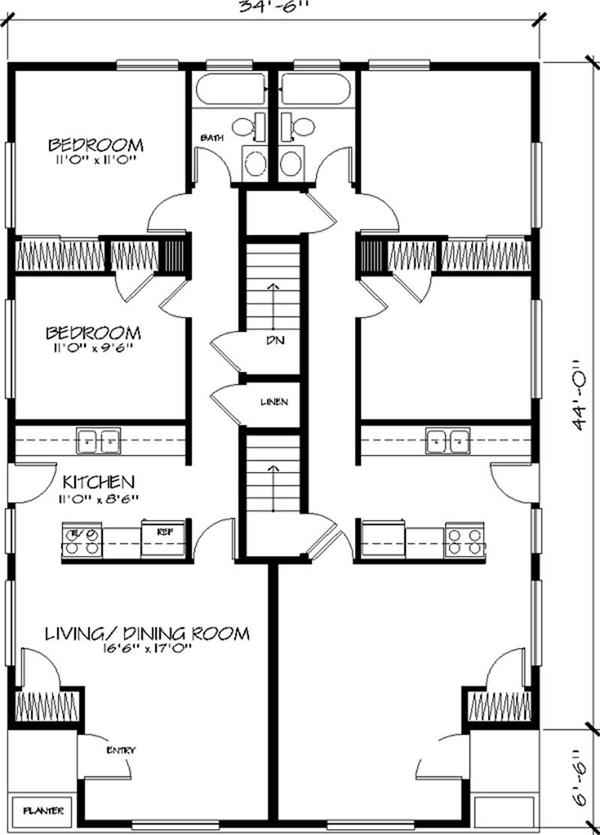

Home Plan: #146-2416 Floor Plan First Story - main level Floor Plan First Story of Multi-Unit Plan #146-2416
Home Plan: #146-2416 Floor Plan First Story - main level Floor Plan First Story of Multi-Unit Plan #146-2416
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 146-2416
Floors:
1
Bedrooms:
2
Full Baths:
1

Square Footage

Heated Sq Feet:
684
Main Floor:
684
Unfinished Sq Ft:
Lower Floor:
510

Dimensions

Width:
35' 0"
Depth:
51' 0"
Ridge Height:
16-0' 0"

Architectural Styles

Duplex/Multi-Unit
Contemporary

Exterior Wall Material

Wood Siding

Roofing Type

Gable

Roof Pitch

4/12

Garage Type

Attached Garage
Under Main Floor Entry

Exterior Wall Framing

2x4

Building Lot Type

Narrow Lot Design

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals. This file may be available. Please call or email us first so we can confirm for you. This set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
