3-Bedroom, 5241 Sq Ft Mediterranean House Plan - 107-1057 - Front Exterior

About Plan # 107-1057

About Plan # 107-1057

5241 SQUARE FEET 3 BEDROOMS 2 FULL BATH 1 HALF BATH
1 FLOOR 78' 2" WIDTH 100' 0" DEPTH 3 GARAGE BAY
This three bedroom Mediterranean Style home is full of amenities. A well equipped Kitchen is conveniently found just off the Family Room. There is a formal Dining Room great for entertaining the special guests. The exclusive master Suite features his and her walk-in-closets, stylish tray ceilings, sitting area and a luxurious master Bath and access to the large covered patio. With plenty of closet space and high ceilings make this design feel larger than life.

Each plan set includes the following:

  • Floor plan
  • Kitchen & Bath layout
  • Exterior elevations
  • Sections
  • Structural plans
  • Foundation plan
  • Roof plan
  • Mechanical layout
  • Electrical layout

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

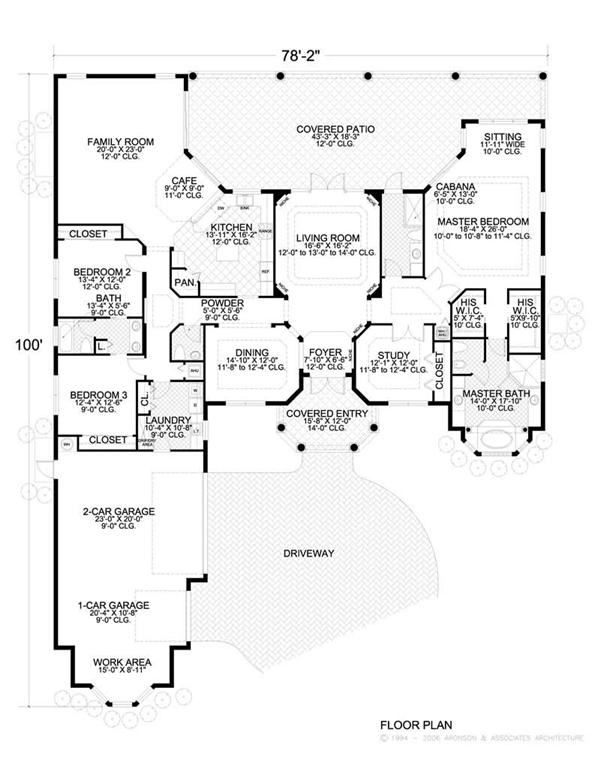

Home Plan: #107-1057 Floor Plan First Story - main level Floor Plan First Story of Mediterranean Plan #107-1057
