House Plan #170-1147
Plan Name: 170-1147   Bedrooms: 4   Width: 100' 0"
Square Feet: 5787 Sq Ft.   Bathrooms: Full Baths: 4
Half Baths: 0
  Depth: 84' 0"
Floors: 2   Garage Bays: 4 Ridge Height: 0'

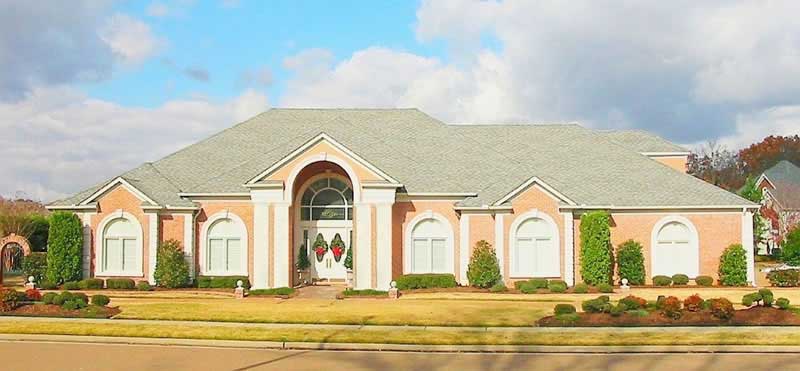

House Plan Main Image House Plan Pricing
Image not available.
  Minimum Construction Package (5 Sets) $2,000.00
  PDF File Set $2,860.00
  C.A.D. File - On Disks (Call Us for Availability) $3,715.00
  Reproducible Master $3,715.00
  Study Set (Construction Bid Set) $1,800.00
  Slab $0.00
  Mirror Reverse $75.00
Square Footage House Plan Description
Heated Sq Ft: 5787
Main Floor: 4835
Upper Floor: 952
Unfinished Sq ft

Luxury Home Plans SU-4802-952-2234-FC+ (IWD) are great luxury two story house plans with 5787 total square feet. It has 4 bedrooms, 4 bathrooms, and a 4 car garage. This house plan also has a brick exterior as well as a slab foundation. Some special features of these houseplans are the exercise room along with the recreation room.

Home Features
  Architectural Styles
  Exterior Wall Framing
  Exterior Wall Material
  Garage Type
Attached Garage
Side Entry
  Kitchen Features
Kitchen Island
Nook/Breakfast Area
  Master Suite Features
Main Floor Master
Master Bathroom
Walk In Closet
  Porches and Exterior Features
Covered Front Porch
Covered Rear Porch
  Roof Pitch
  Special Feature
Exercise Room
Dining Room
Bonus Room
Game Room
Main Level Laundry
Color Photos
House Plan : 170-1147 Images
Reverse Plan Images
   House Plan #170-1147
Image not available.
  Home Plan: 170-1147 First Floor Plan
This image shows the living and dining areas of the house plan.
  Home Plan: 170-1147 Second Floor Plan
This image shows the living areas of the upper floor plan.

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Terms, Conditions and Policies for additional information.

All house plans offered on are designed to conform to the local building codes when and where the original house plan was drawn. local building codes when and where the original house plan was drawn.
The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plans herein carefully.
Copyright held by designer.
