House Plan #170-1017
Plan Name: 170-1017   Bedrooms: 5   Width: 102' 0"
Square Feet: 4722 Sq Ft.   Bathrooms: Full Baths: 4
Half Baths: 0
  Depth: 94' 0"
Floors: 2   Garage Bays: 4 Ridge Height: 32'
House Plan Main Image House Plan Pricing
Image not available.
  Minimum Construction Package (5 Sets) $1,715.00
  PDF File Set $2,425.00
  C.A.D. File - On Disks (Call Us for Availability) $3,140.00
  Reproducible Master $3,140.00
  Study Set (Construction Bid Set) $1,545.00
  Slab $0.00
  Mirror Reverse $75.00
Square Footage House Plan Description
Heated Sq Ft: 4722
Main Floor: 2981
Upper Floor: 1741
Unfinished Sq ft

Home Plan SU-3000-1741-1748-F+ is a great two story house plan with 4722 total square feet. It has 5 bedrooms, 4 bathrooms, and a 4 car garage. This house plan also has a brick exterior as well as a slab foundation.

Home Features
  Architectural Styles
  Ceiling Height
10 Foot Ceiling
9 Foot Ceiling
  Exterior Wall Framing
  Exterior Wall Material
  Garage Type
Attached Garage
  Roof Pitch
House Plan : 170-1017 Images
Reverse Plan Images

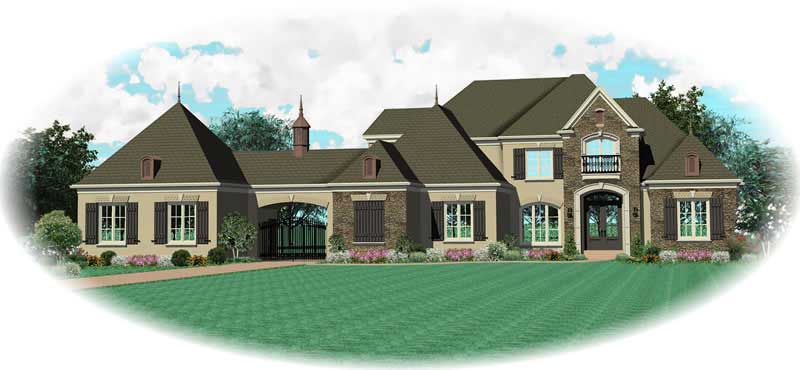

   House Plan #170-1017
Image not available.
  Home Plan: 170-1017 First Floor Plan
This image shows the living and dining areas of the main floor plan.
  Home Plan: 170-1017 Second Floor Plan
This image shows the living areas of the upper floor plan.
