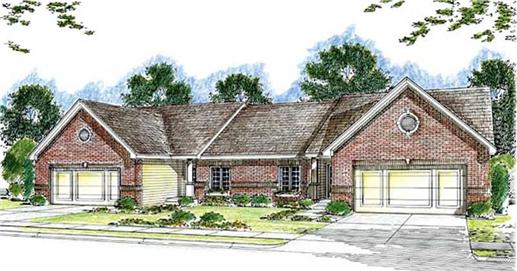

Front elevation of Duplex/Multi-Unit home (ThePlanCollection: House Plan #100-1054)
3-Bedroom, 2824 Total Sq Ft Duplex Home Plan - 100-1054 - Main Exterior

About Plan # 100-1054

About Plan # 100-1054

1412 SQUARE FEET 3 BEDROOMS 1 FULL BATH 1 HALF BATH
1 FLOOR 84' 0" WIDTH 55' 8" DEPTH 2 GARAGE BAY

2824 total living square feet. Each unit is 1412 living square feet.

Each plan set includes the following:

  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurements
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor.
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical wall section
  • Typical stair section
  • Cabinets are shown on all plans.



These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

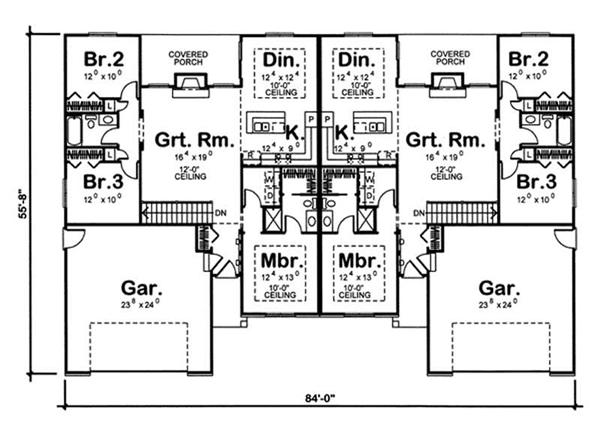

Home Plan: #100-1054 Floor Plan First Story - main level Floor Plan First Story of Multi-Unit Plan #100-1054
Home Plan: #100-1054 Floor Plan First Story - main level Floor Plan First Story of Multi-Unit Plan #100-1054
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 100-1054
Floors:
1
Bedrooms:
3
Full Baths:
1
Half Baths:
1

Square Footage

Heated Sq Feet:
1412
Main Floor:
1412
Unfinished Sq Ft:
Garage :
579

Dimensions

Width:
84' 0"
Depth:
55' 8"
Ridge Height:
21' 9"

Architectural Styles

Ranch
Duplex/Multi-Unit
Traditional

Exterior Wall Material

Brick

Roofing Type

Gable

Roof Pitch

6/12

Ceiling Height

9 Foot Ceiling

Special Feature

Main Level Laundry
Apartment

Garage Type

Attached Garage
Front Entry

Fireplaces

One Fireplace

Exterior Wall Framing

2x4

Kitchen Features

Kitchen Island

Porches and Exterior Features

Covered Rear Porch

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet
Split Master Bedroom

Additional Notes from Designer

2824 total living square feet. Each unit is 1412 living square feet.


The CAD File formats are drawn in SoftPlan. PLEASE NOTE: Plans by this designer do NOT come with FRAMING! This designer does not do ICF.

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
