Main image for house plan # 19766
DR HOUSEPLANS
5-Bedroom, 3109 Sq Ft Southwest House Plan - 125-1154 - Front Exterior
DR HOUSEPLANS

About Plan # 125-1154

About Plan # 125-1154

3109 SQUARE FEET 5 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 90' 0" WIDTH 62' 8" DEPTH 3 GARAGE BAY

This beautiful Tuscan style house plan with two fireplaces, large covered patio and courtyard.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc.
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • DETAIL SHEET

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

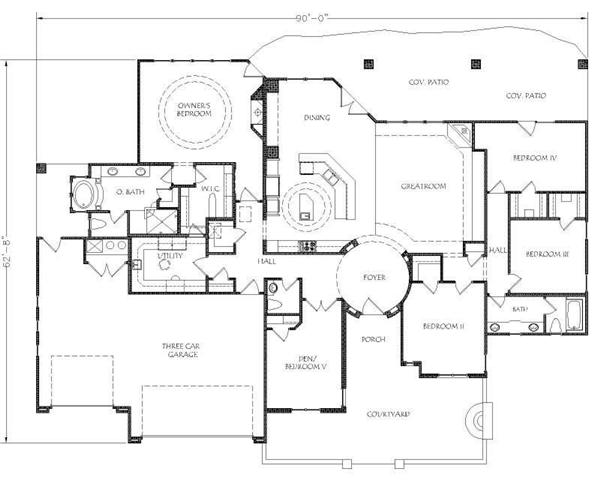

Home Plan: #125-1154 Floor Plan First Story - first floor Floor Plan First Story of Southwest Plan #125-1154

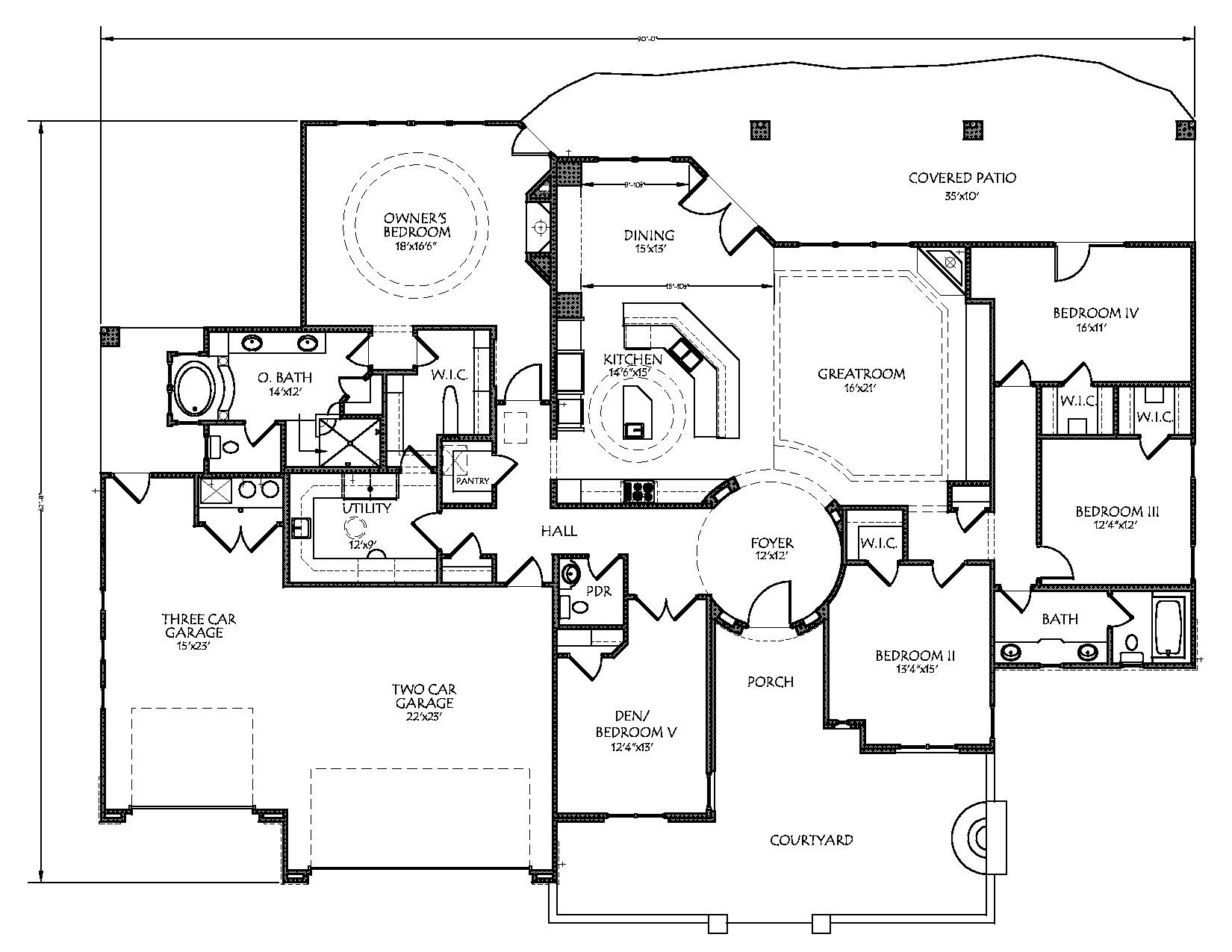

Home Plan: #125-1154 Floor Plan First Story - first floor Floor Plan First Story of Southwest Plan #125-1154
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 125-1154
Floors:
1
Bedrooms:
5
Full Baths:
2

Square Footage

Heated Sq Feet:
3109
Main Floor:
3109
Unfinished Sq Ft:
Garage :
944

Dimensions

Width:
90' 0"
Depth:
62' 8"

Architectural Styles

Southwest
Tuscan

Exterior Wall Material

Stucco
Rock/Stone

Roofing Type

Hip

Roof Pitch

5/12

Ceiling Height

9 Foot Ceiling

Special Feature

Fireplace

Exterior Wall Framing

2x4

Porches and Exterior Features

Courtyard

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build unlimited number of homes with no re-use fees. PDF copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.

Package & Price Help
Select Plan Package
Select Foundation
  {{addOnOption.Cost | currency:"$"}}
{{addOnOption.Cost | currency:"$"}}
{{addOnOption.InventoryOptionName}}
  {{addOnOption.Cost | currency:"$"}}
{{addOnOption.InventoryOptionName}}
  {{addOnOption.Cost | currency:"$"}}

How much will this plan cost to build?

- OR -

Modify this plan

This plan can be customized
Contact us for free quote

Modify this plan

This plan can be customized
Contact us for free quote
