Main image for house plan # 19456

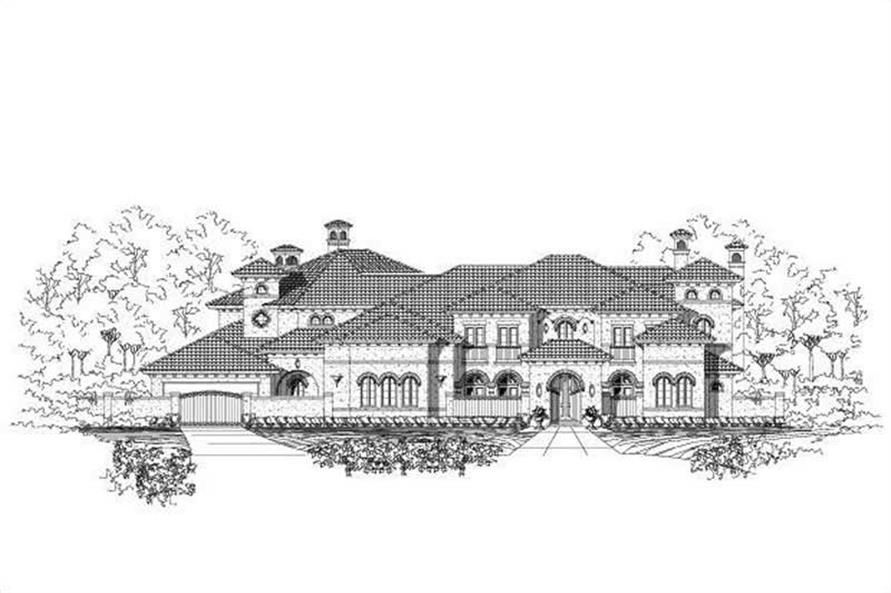

4-Bedroom, 7143 Sq Ft Mediterranean Home Plan - 156-2121 - Main Exterior

About Plan # 156-2121

About Plan # 156-2121

7143 SQUARE FEET 4 BEDROOMS 3 FULL BATH 3 HALF BATH
2 FLOOR 114' 2" WIDTH 109' 8" DEPTH 5 GARAGE BAY
TPC - Home Plan #156-2121

Each plan set includes the following:

  • Exterior,
  • Elevations
  • Floor Plans
  • Electrical Layout
  • Building Sections
  • Roofing Plan
  • Interior Elevations
  • General Details
  • Wall Sections

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

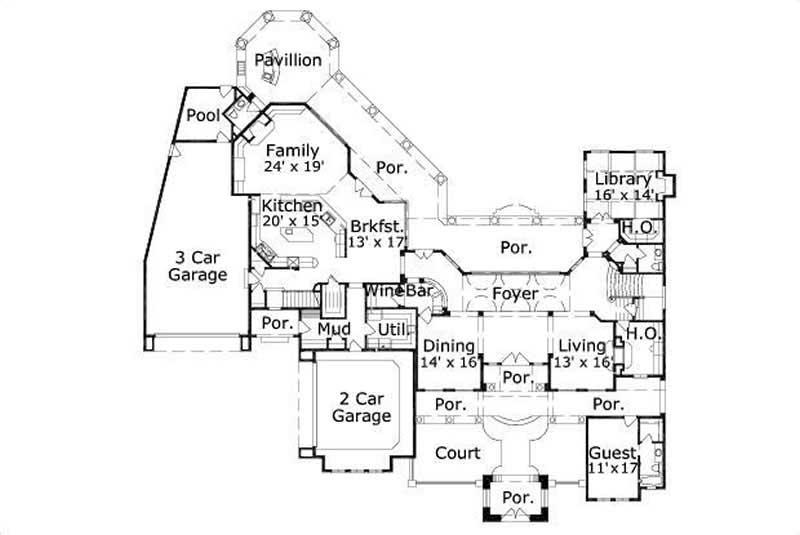

Home Plan: #156-2121 Floor Plan First Story - main level Floor Plan First Story of Mediterranean Plan #156-2121

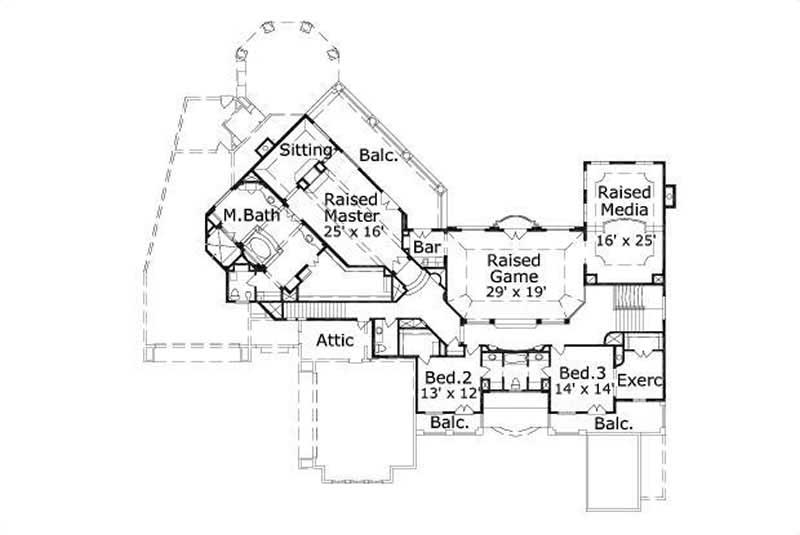

#156-2121 Floor Plan Second Story - second level Floor Plan Second Story of Mediterranean Plan #156-2121

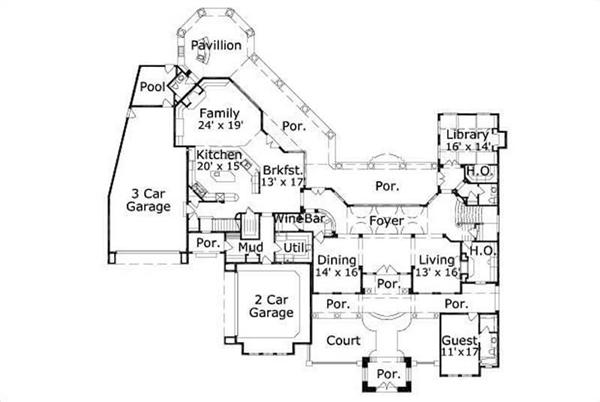

Home Plan: #156-2121 Floor Plan First Story - main level Floor Plan First Story of Mediterranean Plan #156-2121
#156-2121 Floor Plan Second Story - second level Floor Plan Second Story of Mediterranean Plan #156-2121
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 156-2121
Floors:
2
Bedrooms:
4
Full Baths:
3
Half Baths:
3

Square Footage

Heated Sq Feet:
7143
Main Floor:
3607
Upper Floor:
3536
Unfinished Sq Ft:

Dimensions

Width:
114' 2"
Depth:
109' 8"
Ridge Height:
34'7' 0"

Architectural Styles

Mediterranean
Luxury
Texas Style

Exterior Wall Material

Stucco

Roofing Type

Hip

Ceiling Height

10 Foot Ceiling
9 Foot Ceiling

Additional Notes from Designer

CAD files may take up to 3 business days to receive - please contact us for availability.

PRICING OPTIONS

A NON-modifiable, print-only PDF that is emailed. Includes a complete set of working drawings delivered in a digital format. Print as many sets as you need. No shipping costs. Comes with a license to build one home.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
