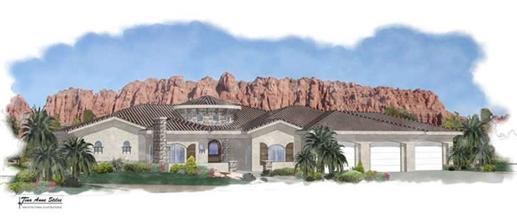

Main image for house plan # 19362
5-Bedroom, 3096 Sq Ft Mediterranean House Plan - 125-1011 - Front Exterior

About Plan # 125-1011

About Plan # 125-1011

3096 SQUARE FEET 5 BEDROOMS 2 FULL BATH 1 HALF BATH
1 FLOOR 96' 6" WIDTH 67' 0" DEPTH 3 GARAGE BAY
Inviting courtyard for outside entertaining, rotunda entry opens to great room with views out to covered patio.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc.
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • DETAIL SHEET

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

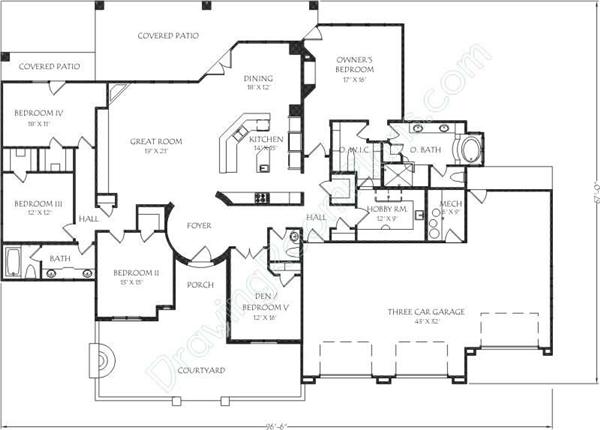

Home Plan: #125-1011 Floor Plan First Story - main Floor Plan First Story of Mediterranean Plan #125-1011
Home Plan: #125-1011 Floor Plan First Story - main Floor Plan First Story of Mediterranean Plan #125-1011
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 125-1011
Floors:
1
Bedrooms:
5
Full Baths:
2
Half Baths:
1

Square Footage

Heated Sq Feet:
3096
Main Floor:
3096
Unfinished Sq Ft:
Garage :
1111

Dimensions

Width:
96' 6"
Depth:
67' 0"

Architectural Styles

Mediterranean
Southwest

Exterior Wall Material

Stucco
Rock/Stone

Roof Pitch

4/12

Ceiling Height

9 Foot Ceiling

Garage Type

Front Entry

Fireplaces

One Fireplace

Exterior Wall Framing

2x4

Porches and Exterior Features

Courtyard

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build unlimited number of homes with no re-use fees. PDF copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
