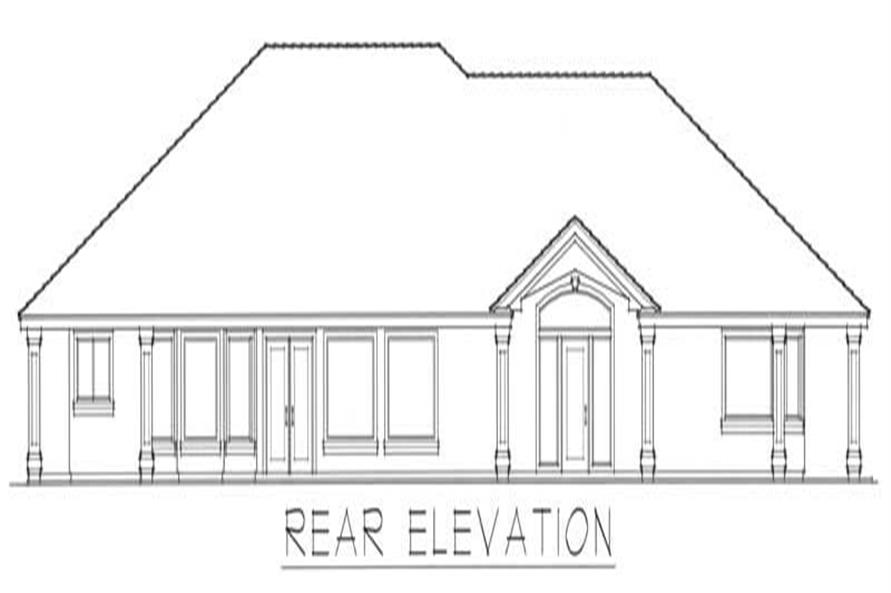

House Plan RDI-2616-S Rear Elevation
2-Bedroom, 2616 Sq Ft Contemporary Home Plan - 162-1007 - Main Exterior
House Plan RDI-2616-S Rear Elevation

About Plan # 162-1007

About Plan # 162-1007

2616 SQUARE FEET 2 BEDROOMS 2 FULL BATH 1 HALF BATH
1 FLOOR 88' 8" WIDTH 71' 4" DEPTH 3 GARAGE BAY
House Plan RDI-2616-S is a perfect space for empty-nesters. The plan features a large great room open to the kitchen. The kitchen itself is large with an oversized island. To the front of the house is a dining room with elegant ceiling detail. The den would also be a great guest room. The master suite is large with plenty of closet space. The master bath boasts a large soaking tub and separate shower. Across the hall is the second bedroom with a full bath nearby. Perhaps one of the best characteristics of this home is the covered patio that wraps around the rear and left of the house, creating an outdoor haven for enjoying the scenery.

Each plan set includes the following:

  • Exterior Elevations
  • Floor Plans
  • Foundation Plan
  • Roof Framing Plan
  • Building Sections
  • Wall Sections
  • Stair Detail
  • Cabinet Elevations
  • Notes
  • Electrical Layout
  • Door & Window Sizes

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

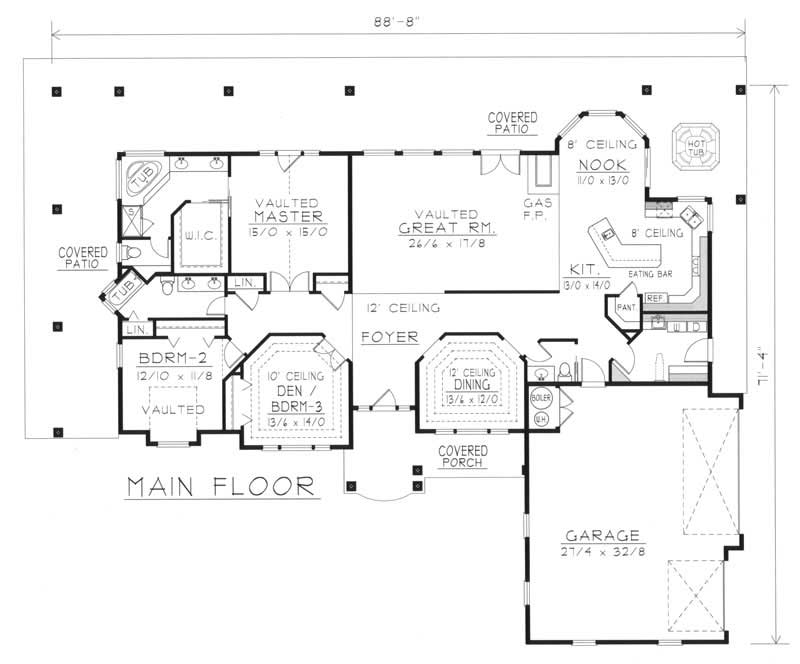

Home Plan: #162-1007 Floor Plan First Story - main Floor Plan First Story of Contemporary Plan #162-1007
