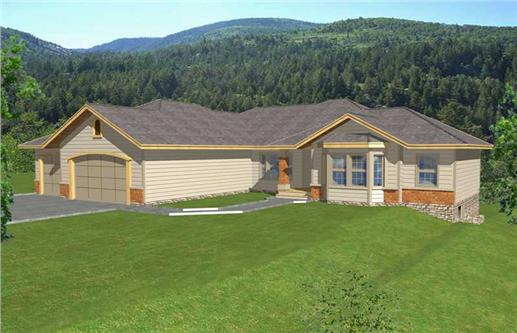

Front elevation of Contemporary home (ThePlanCollection: House Plan #162-1003)
House Plan RDI-2583R1-DB Rear Elevation
1-Bedroom, 4823 Sq Ft Contemporary Home Plan - 162-1003 - Main Exterior
House Plan RDI-2583R1-DB Rear Elevation

About Plan # 162-1003

About Plan # 162-1003

4823 SQUARE FEET 1 BEDROOMS 3 FULL BATH 1 HALF BATH
1 FLOOR 76' 6" WIDTH 69' 0" DEPTH 3 GARAGE BAY

This home is perfect for a large family that wants to fit all the luxurious amenities in a neighborhood lot. All the rooms are large and spacious and the main floor has nine-foot-high ceilings. The master suite is comfortably big and the master bath features a lavish spa. Across the house is a large guest room/mother-in-law suite with a private bath and sitting area. The kitchen enjoys plenty of storage and counter space. The basement is finished with a family room, kitchenette, and five more bedrooms.

Each plan set includes the following:

  • Exterior Elevations
  • Floor Plans
  • Foundation Plan
  • Roof Framing Plan
  • Building Sections
  • Wall Sections
  • Stair Detail
  • Cabinet Elevations
  • Notes
  • Electrical Layout
  • Door & Window Sizes

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

Home Plan: #162-1003 Floor Plan First Story - main Floor Plan First Story of Contemporary Plan #162-1003

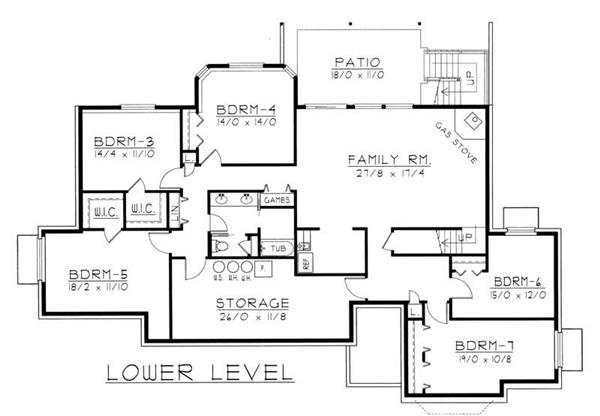

#162-1003 Floor Plan Basement - basement Floor Plan Basement of Contemporary Plan #162-1003
Home Plan: #162-1003 Floor Plan First Story - main Floor Plan First Story of Contemporary Plan #162-1003
#162-1003 Floor Plan Basement - basement Floor Plan Basement of Contemporary Plan #162-1003
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 162-1003
Floors:
1
Bedrooms:
1
Full Baths:
3
Half Baths:
1

Square Footage

Heated Sq Feet:
4823
Main Floor:
2583
Unfinished Sq Ft:
Lower Floor:
2240
Garage :
988

Dimensions

Width:
76' 6"
Depth:
69' 0"
Ridge Height:
19'3' 0"

Architectural Styles

Ranch
Contemporary
In-Law Suite

Exterior Wall Material

Brick
Wood Siding

Roofing Type

Hip

Roof Pitch

6/12

Ceiling Height

9 Foot Ceiling
8 Foot Ceiling

Special Feature

Guest Room
Family Room

Garage Type

Attached Garage
Front Entry

Fireplaces

Two Fireplaces

Exterior Wall Framing

2x6

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

Five printed sets and a modifiable PDF with complete set of working drawings. The PDF is emailed while the 5 sets ship. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build unlimited number of homes with no re-use fees. PDF copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
