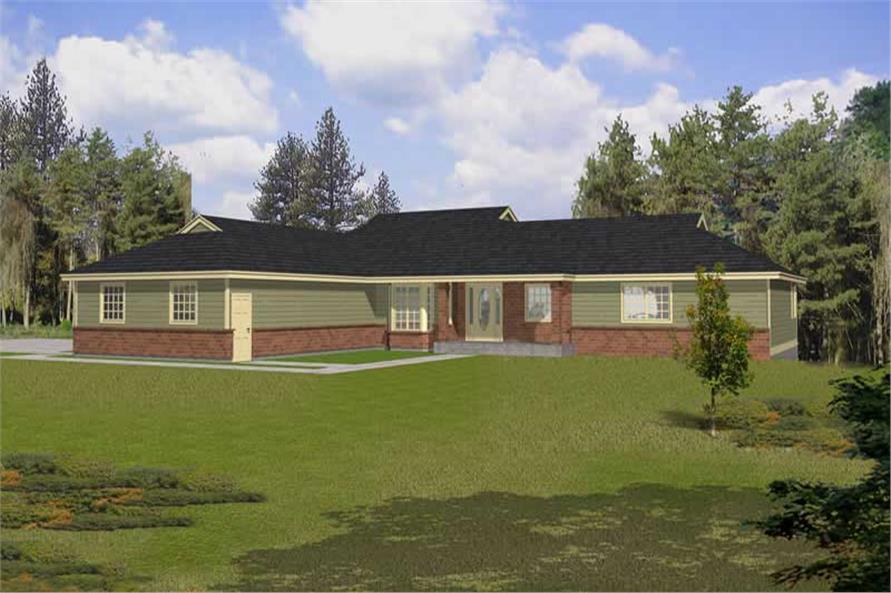

Main image for house plan # 18914
Photographs may reflect modified designs. Copyright held by designer.
View Additional Images (click image to enlarge)

House Plan # 162-1036

Best Price Guaranteed

Floors: 1
Living Sq Feet: 3594
Bedrooms: 4
Full Baths: 2
Half Baths: 1
Garage Bays: 3
Width: 76' 6"
Depth: 64' 6"
ADD TO CART

View All Price Options

Ask a Question

  pinit     Houzz   ShareThis


HOUSE PLAN DESCRIPTION
House Plan RDI-2320R1-DB leaves plenty of room for open spaces. The foyer and living areas share a vaulted ceiling creating a rather grand entrance. The kitchen, which boasts a very large island and plenty of cupboard and counter space, shares a tray ceiling with the family room. These two spaces create a wonderful environment for entertaining guests without putting strain on the entire family. Other features include a large laundry room, a generous master suite with private bath and walk-in closet, a partially finished basement with more bedrooms and a third entertainment area.
Reverse Plan Images
FLOOR PLANS

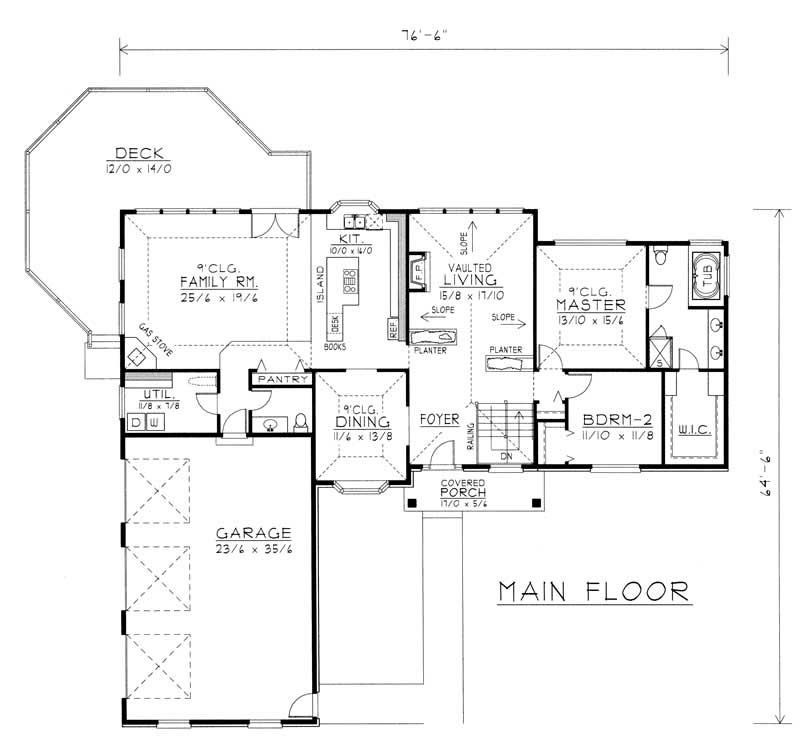

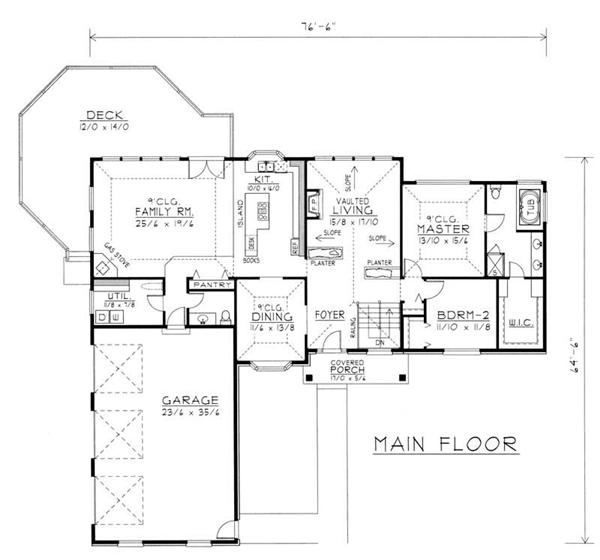

Home Plan : # 162-1036 Main Floor Plan
House Plan RDI-2320R1-DB Main Floor Plan
Copyright held by designer.

Home Plan : # 162-1036 Second Floor Plan
House Plan RDI-2320R1-DB Second Floor Plan
Copyright held by designer.

PLAN SPECS & FEATURES

Summary Information
House Plan: #162-1036
Floors: 1
Bedrooms: 4
Full Baths: 2
Half Baths: 1
Garage Bays: 3
DIMENSIONS
Width: 76' 6"
Depth: 64' 6"
Ridge height: 179'  0''
SQUARE FOOTAGE
Heated Sq Feet: 3594
Main Floor: 2320
Unfinished Sq Feet:
Lower Floor: 1274
Bonus Room: 1046
Garage: 879


Architectural Styles
Ranch
Contemporary

Ceiling Height
9 Foot Ceiling
8 Foot Ceiling
10 Foot Ceiling

Framing
Exterior Wall Framing:    2x6

Exterior Wall Material
Wood Siding
Brick

Fireplaces
Two Fireplaces

Garage Type
Side Entry
Attached Garage

Roof Pitch
6/12

Roofing Type
Gambrel

Special Feature
Guest Room
Family Room


PRICING OPTIONS

ADD TO CART

You can select your plan package and options once the plan has been added to the cart

Plan Package and Pricing Help
PLAN PACKAGES: HOUSE PLAN # 162-1036
Minimum Construction Package (5 Sets) $700.00
Standard Construction Package (8 Sets) $760.00
Reproducible Master $1020.00
CAD File $1400.00
Study Set (Construction Bid Set) $620.00
FOUNDATION OPTIONS
Basement $100.00
Crawlspace $100.00
Slab $100.00
Daylight Basement $0.00
OTHER OPTIONS / ADD-ONS
Right Reading Reverse $100.00
Additional Set(s), Each $50.00
