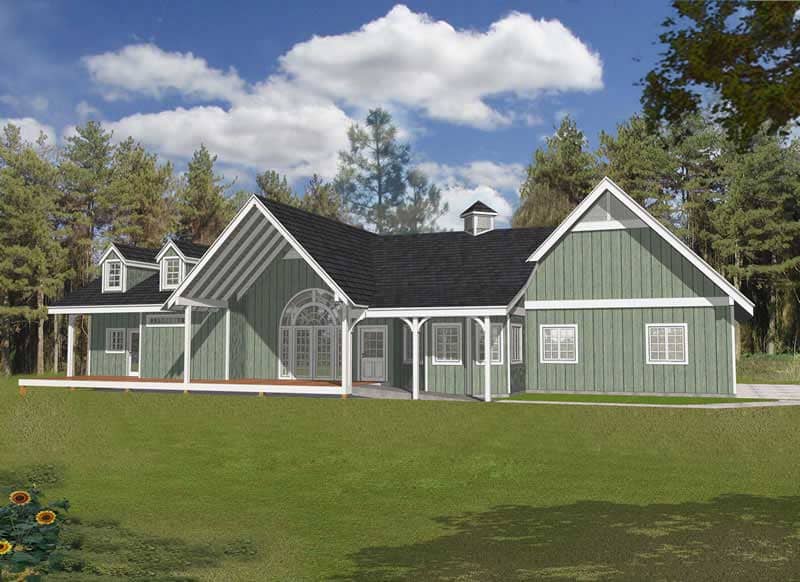

Main image for house plan # 18897
Photographs may reflect modified designs. Copyright held by designer.
View Additional Images (click image to enlarge)

House Plan # 162-1049

Best Price Guaranteed

Floors: 1
Living Sq Feet: 4012
Bedrooms: 4
Full Baths: 3
Half Baths: 1
Garage Bays: 3
Width: 85' 6"
Depth: 57' 6"
ADD TO CART

View All Price Options

Ask a Question

  pinit     Houzz   ShareThis


HOUSE PLAN DESCRIPTION
Home Plan RDI-2302R1-DB is an open Northwestern design that's perfect for bringing the outdoors in. Large windows and covered decks adorn the exterior and bring light to the interior. A special feature in this plan is the ceiling detail. 9' ceilings throughout the home leap to a vault in the great and dining rooms. The lower level houses a family room, and two more bedrooms, all the while conserving that precious storage space.
Reverse Plan Images
FLOOR PLANS

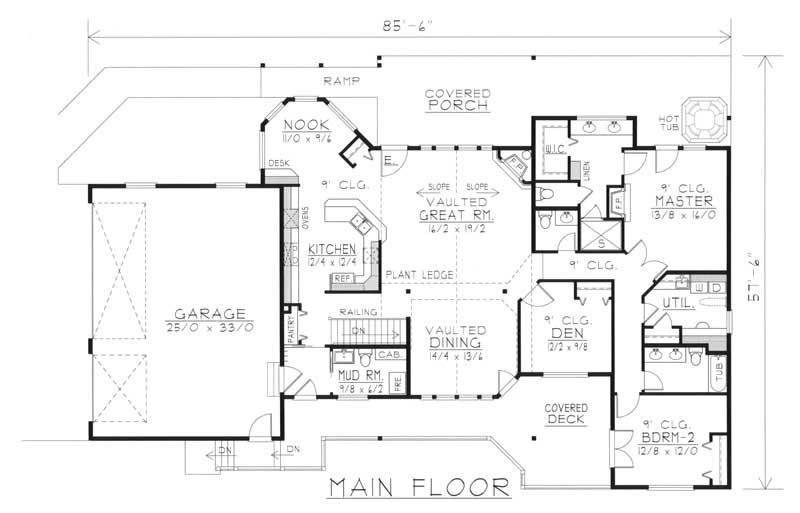

Home Plan : # 162-1049 Main Floor Plan
House Plan RDI-2302R1-DB Main Floor Plan
Copyright held by designer.

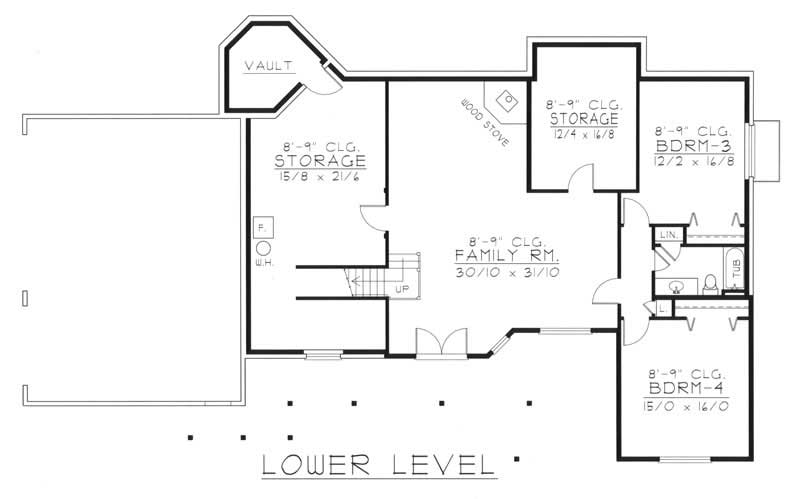

Home Plan : # 162-1049 Basement Floor Plan
House Plan RDI-2302R1-DB Basement Floor Plan
Copyright held by designer.

PLAN SPECS & FEATURES

Summary Information
House Plan: #162-1049
Floors: 1
Bedrooms: 4
Full Baths: 3
Half Baths: 1
Garage Bays: 3
DIMENSIONS
Width: 85' 6"
Depth: 57' 6"
Ridge height: 248'  0''
SQUARE FOOTAGE
Heated Sq Feet: 4012
Main Floor: 2302
Unfinished Sq Feet:
Lower Floor: 1710
Garage: 869


Architectural Styles
Contemporary
Log Cabin

Ceiling Height
9 Foot Ceiling

Framing
Exterior Wall Framing:    2x6

Exterior Wall Material
Wood Siding

Fireplaces
Two Fireplaces

Garage Type
Attached Garage
Side Entry

Roof Pitch
12/12
6/12

Roofing Type
Gable

Special Feature
Dining Room
Family Room


PRICING OPTIONS

ADD TO CART

You can select your plan package and options once the plan has been added to the cart

Plan Package and Pricing Help
PLAN PACKAGES: HOUSE PLAN # 162-1049
Minimum Construction Package (5 Sets) $820.00
Standard Construction Package (8 Sets) $850.00
Reproducible Master $1120.00
CAD File $1640.00
Study Set (Construction Bid Set) $720.00
FOUNDATION OPTIONS
Basement $100.00
Crawlspace $100.00
Slab $100.00
Daylight Basement $0.00
OTHER OPTIONS / ADD-ONS
Right Reading Reverse $100.00
Additional Set(s), Each $50.00
