Luxury House Plans AA6096-0506 color rendering.
Water View
HOUSEPLAN AA
107-1040: Home Exterior Photograph-Front View
5-Bedroom, 6096 Sq Ft Luxury Home Plan - 107-1040 - Main Exterior
Water View
HOUSEPLAN AA
107-1040: Home Exterior Photograph-Front View

About Plan # 107-1040

About Plan # 107-1040

6096 SQUARE FEET 5 BEDROOMS 6 FULL BATH 1 HALF BATH
2 FLOOR 87' 5" WIDTH 59' 10" DEPTH 2 GARAGE BAY
This set of Luxury House Plans has everything you need and more. Some of the great extra features include a playroom, buffet table in the dining room, elevator, loft, exercise room, and main level laundry. These Home Plans are great for the whole family.

Each plan set includes the following:

  • Floor plan
  • Kitchen & Bath layout
  • Exterior elevations
  • Sections
  • Structural plans
  • Foundation plan
  • Roof plan
  • Mechanical layout
  • Electrical layout

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

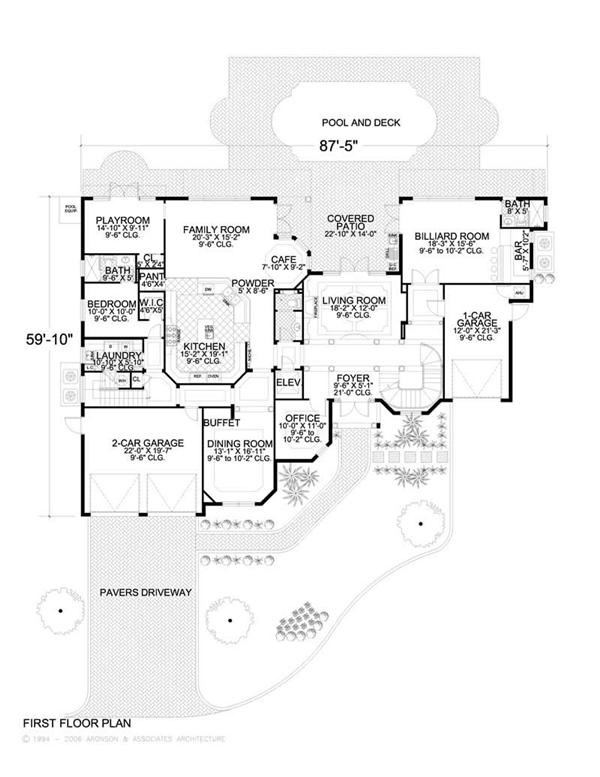

Home Plan: #107-1040 Floor Plan First Story - main Floor Plan First Story of Luxury Plan #107-1040

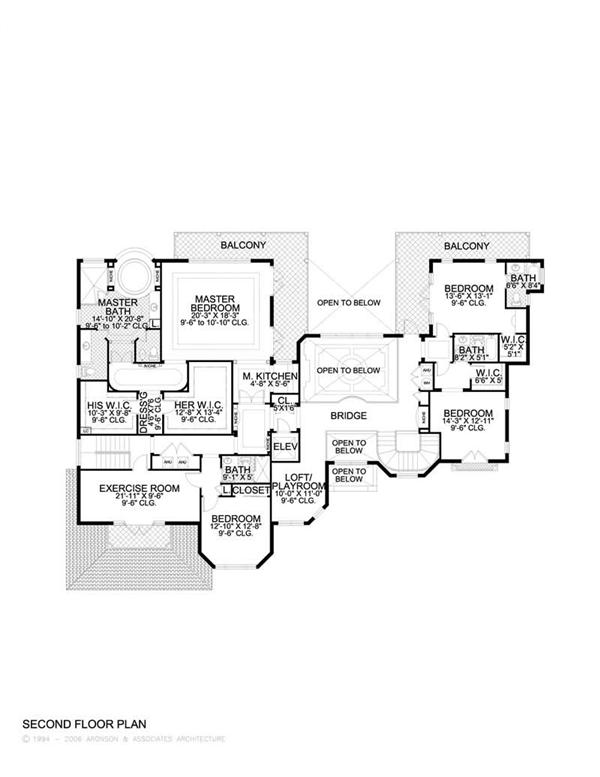

#107-1040 Floor Plan Second Story - second Floor Plan Second Story of Luxury Plan #107-1040
Home Plan: #107-1040 Floor Plan First Story - main Floor Plan First Story of Luxury Plan #107-1040
#107-1040 Floor Plan Second Story - second Floor Plan Second Story of Luxury Plan #107-1040
