About Plan # 107-1013

About Plan # 107-1013

5176 SQUARE FEET 5 BEDROOMS 6 FULL BATH 1 HALF BATH
2 FLOOR 63' 10" WIDTH 59' 11" DEPTH 3 GARAGE BAY

This Luxury Home Plans is a Florida / Spanish / Mediterranean-style waterfront design that features four bedrooms, five and one-half bathrooms, a cabana bath, a towering covered entrance with eight-foot-high doors, and a three-car garage. The columns and arches exude a strong curb appeal. The luxury first-story design presents a large living room with two-story ceilings, huge island kitchen with an eating bar and breakfast nook that opens to the family room, a media room complete with a wet bar, a cozy library that makes a perfect retreat, and a residential elevator. The second story of this magnificent home features a luxurious master suite with large walk-in closets, morning kitchen, tray ceilings, and a regal master bathroom opening onto a private balcony.

Each plan set includes the following:

  • Floor plan
  • Kitchen & Bath layout
  • Exterior elevations
  • Sections
  • Structural plans
  • Foundation plan
  • Roof plan
  • Mechanical layout
  • Electrical layout

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

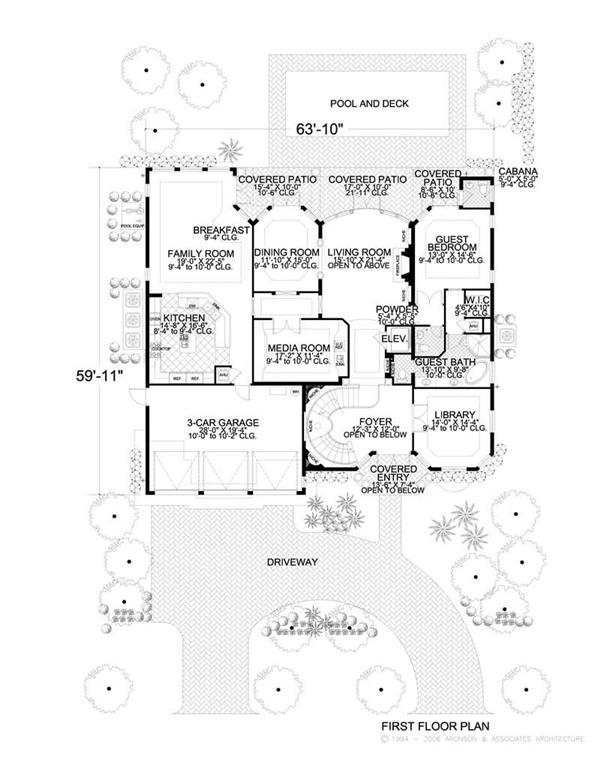

Home Plan: #107-1013 Floor Plan First Story - main Floor Plan First Story of Luxury Plan #107-1013

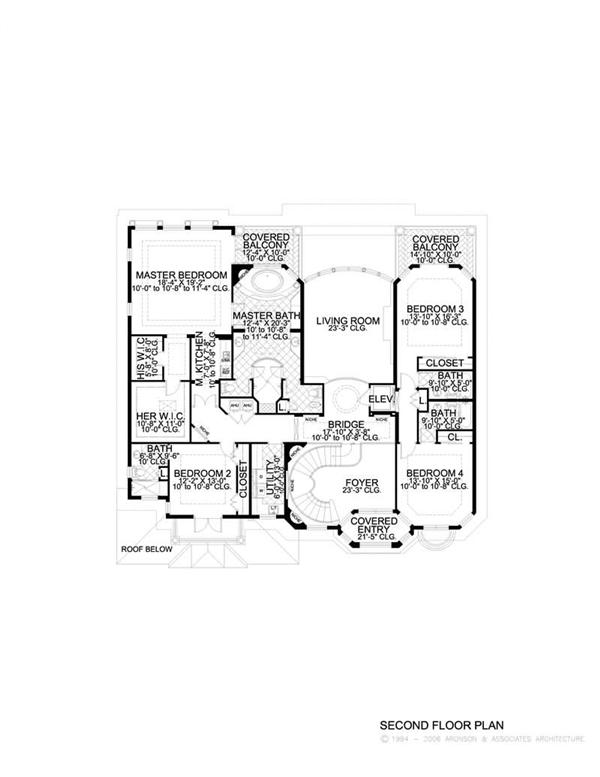

#107-1013 Floor Plan Second Story - second Floor Plan Second Story of Luxury Plan #107-1013
Home Plan: #107-1013 Floor Plan First Story - main Floor Plan First Story of Luxury Plan #107-1013
#107-1013 Floor Plan Second Story - second Floor Plan Second Story of Luxury Plan #107-1013
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 107-1013
Floors:
2
Bedrooms:
5
Full Baths:
6
Half Baths:
1

Square Footage

Heated Sq Feet:
5176
Main Floor:
2726
Upper Floor:
2450
Unfinished Sq Ft:
Garage :
576

Dimensions

Width:
63' 10"
Depth:
59' 11"
Ridge Height:
31'2' 0"

Architectural Styles

Mediterranean
Luxury
Spanish
Concrete Block/ ICF Design
Florida Style

Exterior Wall Material

Stucco

Roofing Type

Hip

Roofing Material

Tiles

Roof Pitch

5/12

Special Feature

Fireplace
Dining Room
Guest Room
Family Room
Library
Media Room
Color Photos
Color Photos
Elevator
Balcony
Second Level Laundry
Open Floor Plan

Garage Type

Attached Garage
Front Entry

Fireplaces

One Fireplace

Exterior Wall Framing

Concrete

Building Lot Type

Flat Site

Kitchen Features

Kitchen Island
Nook/Breakfast Area
Walk-in Pantry
Secondary Kitchen

Porches and Exterior Features

Covered Front Porch
Covered Rear Porch

Master Suite Features

Master Bathroom
Walk In Closet
Private Deck
Second Floor Master
