House Plan #107-1010
Plan Name: 107-1010   Bedrooms: 5   Width: 75' 0"
Square Feet: 5030 Sq Ft.   Bathrooms: Full Baths: 5
Half Baths: 0
  Depth: 74' 0"
Floors: 2   Garage Bays: 3 Ridge Height: 32'0'

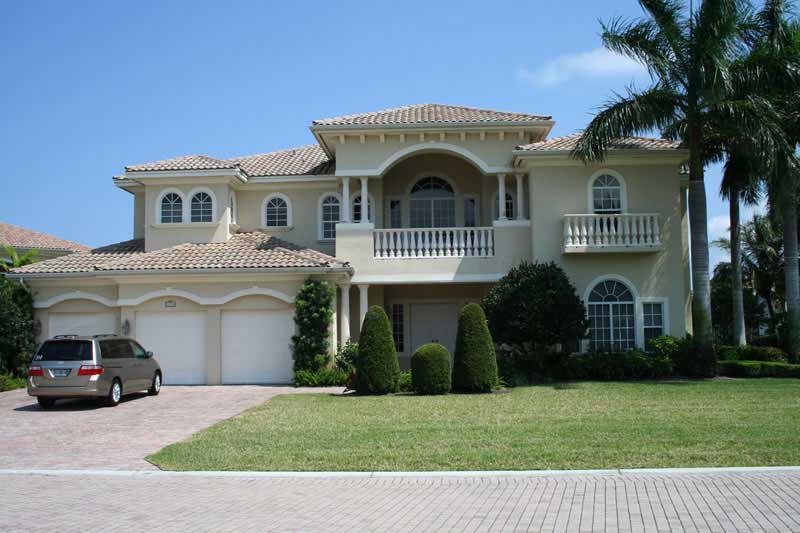

House Plan Main Image House Plan Pricing
Image not available.
  Minimum Construction Package (3 Sets) $1,200.00
  Minimum Construction Package (5 Sets) $1,300.00
  Standard Construction Package (8 Sets) $1,540.00
  PDF File Set $1,600.00
  Reproducible Master $1,600.00
  CAD File $1,950.00
  Monolithic Slab $0.00
  Right Reading Reverse $250.00
  Additional Set(s), Each $50.00
Square Footage House Plan Description
Heated Sq Ft: 5030
Main Floor: 2734
Upper Floor: 2296
Unfinished Sq ft
Garage: 671

These Mediterranean-style waterfront designs feature five bedrooms, a cabana bathroom and three-car garage. There is a spacious and towering covered entrance and covered patio. The formal dining room has a coffered ceiling. On the first story, there is a VIP suite with a private entrance. The den/library is very cozy and a perfect place for simple solitude. The eight-foot high French doors have sidelights adding to the elegance and opulence of the design. Columns, arches and the baluster rail provide a strong curb appeal. A chef's "dream" island kitchen with an eating bar, butler's pantry and cafe opens into the family room. The master suite is luxurious with large walk-in closets, tray ceilings and a regal master bath with vanity and additional storage areas. This area opens onto a private balcony. The large living room features a two-story ceiling, wet bar and fireplace.

Home Features
  Architectural Styles
  Garage Type
Attached Garage
Front Entry
  Kitchen Features
Kitchen Island
Walk-in Pantry
Peninsula/Eating Bar
  Master Suite Features
Master Bathroom
Walk In Closet
Private Deck
Second Floor Master
  Porches and Exterior Features
Covered Front Porch
Covered Rear Porch
  Roof Pitch
  Roofing Type
  Special Feature
Guest Room
Family Room
Main Level Laundry
Color Photos
House Plan : 107-1010 Images
Reverse Plan Images
   House Plan #107-1010
Image not available.
  Home Plan: 107-1010 Main Floor Plan
  Home Plan: 107-1010 Second Floor Plan
