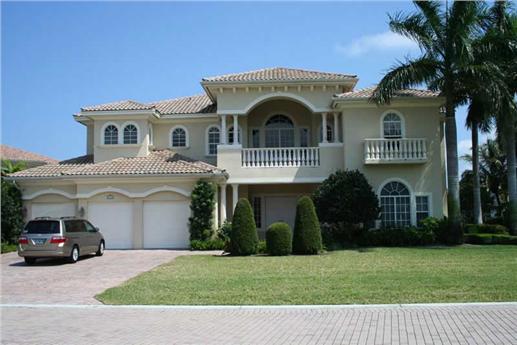

5-Bedroom, 5030 Sq Ft Luxury House Plan - 107-1010 - Front Exterior
HOUSE PLAN AA
HOUSE PLAN AA
HOUSE PLAN AA
HOUSE PLAN AA
107-1010: Home Other Image-Front View

About Plan # 107-1010

About Plan # 107-1010

5030 SQUARE FEET 5 BEDROOMS 5 FULL BATH 0 HALF BATH
2 FLOOR 75' 0" WIDTH 74' 0" DEPTH 3 GARAGE BAY
These Mediterranean-style waterfront designs feature five bedrooms, a cabana bathroom and three-car garage. There is a spacious and towering covered entrance and covered patio. The formal dining room has a coffered ceiling. On the first story, there is a VIP suite with a private entrance. The den/library is very cozy and a perfect place for simple solitude. The eight-foot high French doors have sidelights adding to the elegance and opulence of the design. Columns, arches and the baluster rail provide a strong curb appeal. A chef's "dream" island kitchen with an eating bar, butler's pantry and cafe opens into the family room. The master suite is luxurious with large walk-in closets, tray ceilings and a regal master bath with vanity and additional storage areas. This area opens onto a private balcony. The large living room features a two-story ceiling, wet bar and fireplace.

Each plan set includes the following:

  • Floor plan
  • Kitchen & Bath layout
  • Exterior elevations
  • Sections
  • Structural plans
  • Foundation plan
  • Roof plan
  • Mechanical layout
  • Electrical layout

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

Home Plan: #107-1010 Floor Plan First Story - main Floor Plan First Story of Luxury Plan #107-1010
#107-1010 Floor Plan Second Story - second Floor Plan Second Story of Luxury Plan #107-1010
Home Plan: #107-1010 Floor Plan First Story - main Floor Plan First Story of Luxury Plan #107-1010
#107-1010 Floor Plan Second Story - second Floor Plan Second Story of Luxury Plan #107-1010
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 107-1010
Floors:
2
Bedrooms:
5
Full Baths:
5

Square Footage

Heated Sq Feet:
5030
Main Floor:
2734
Upper Floor:
2296
Unfinished Sq Ft:
Garage :
671

Dimensions

Width:
75' 0"
Depth:
74' 0"
Ridge Height:
32'0' 0"

Architectural Styles

Mediterranean
Luxury

Roofing Type

Hip

Roof Pitch

5/12

Special Feature

Guest Room
Family Room
Main Level Laundry
Library
Color Photos
Color Photos
Loft
Den
Balcony

Garage Type

Attached Garage
Front Entry

Kitchen Features

Kitchen Island
Walk-in Pantry
Peninsula/Eating Bar

Porches and Exterior Features

Covered Front Porch
Covered Rear Porch

Master Suite Features

Master Bathroom
Walk In Closet
Private Deck
Second Floor Master

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
