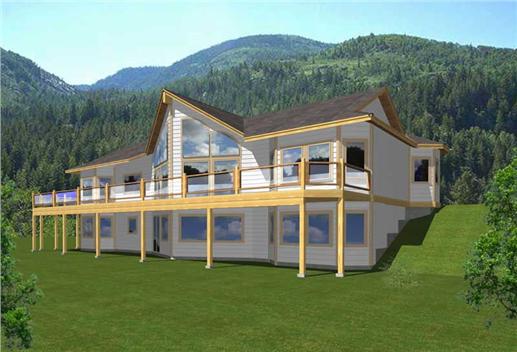

Main image for house plan # 18628
Photographs may reflect modified designs. Copyright held by designer.
View Additional Images (click image to enlarge)
House Plan # 162-1022

Floors: 1
Living Sq Feet: 3480
Bedrooms: 2
Full Baths: 2
Half Baths: 1
Garage Bays: 2
Width: 88' 1"
Depth: 63' 3"
CAD file $1400.00
Vellum/Reproducible Set $1020.00
8 Set Package $760.00
View All Pricing Options
ORDER PLAN
Average Review Rating
(Read 0 Reviews )
Write a Review

Ask a Question


HOUSE PLAN DESCRIPTION
House Plan RDI-1899R1-BD has a balanced floor plan offering an open living space and private bedrooms. The living room boasts a vaulted ceiling and the dining room features bay windows. The kitchen is large with an oversized island. The master suite has a walk-in closet and a private bath. The soaking tub enjoys great views from bay windows. The lower floor plan includes plenty of room for exercise and play with a rec room, billiards room, exercise room, and a wet bar. The house also includes a large laundry room and spacious craft/sewing room.
FLOOR PLANS

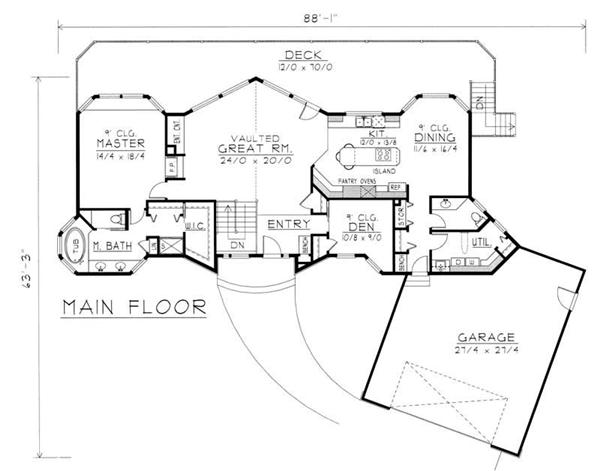

Home Plan : # 162-1022 Main Floor Plan
House Plan RDI-1899R1-DB Main Floor Plan
Copyright held by designer.

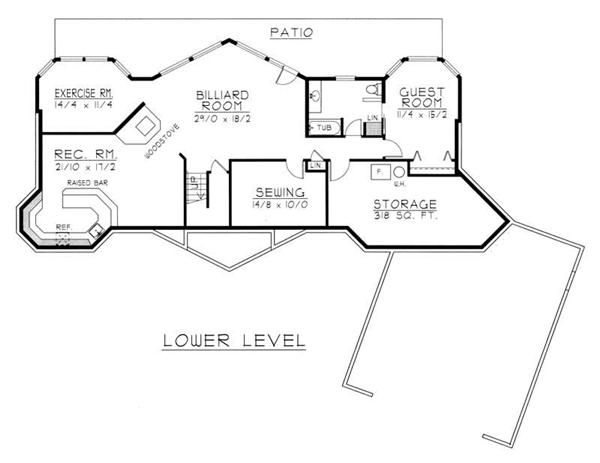

Home Plan : # 162-1022 Basement Floor Plan
House Plan RDI-1899R1-DB Basement Floor Plan
Copyright held by designer.

PLAN SPECS & FEATURES

Summary Information
House Plan: #162-1022
Floors: 1
Bedrooms: 2
Full Baths: 2
Half Baths: 1
Garage Bays: 2
DIMENSIONS
Width: 88' 1"
Depth: 63' 3"
Ridge height: 184'  0''
Building Lot Type:
SQUARE FOOTAGE
Heated Sq Feet: 3480
Main Floor: 1889
Upper Floor: 0
Lower Floor: 0
Unfinished Sq Feet:
Bonus Room: 0
Garage: 800


Architectural Styles
Vacation Homes
Contemporary
Log Cabin

Ceiling Height
9 Foot Ceiling
8 Foot Ceiling

Exterior Wall Framing
2x6

Exterior Wall Material
Wood Siding

Fireplaces
Two Fireplaces

Garage Type
Attached Garage
Front Loading

Roof Pitch
6/12
8/12

Roofing Type
Gable

Special Feature
Dining Room


PRICING OPTIONS

ADD TO CART

You can select your plan package and options once the plan has been added to the cart

Pricing Help
PLAN PACKAGES: HOUSE PLAN # 162-1022
CAD file $1400.00
Vellum/Reproducible Set $1020.00
8 Set Package $760.00
5 Set Package $700.00
1 Set Package $620.00
Study Set $150.00
FHA or VA Description of Materials $100.00
FOUNDATION OPTIONS
Basement $100.00
Crawlspace Foundation $100.00
Slab Foundation $100.00
Daylight Basement $0.00
OTHER OPTIONS / ADD-ONS
Right Reading Reverse Set $100.00
