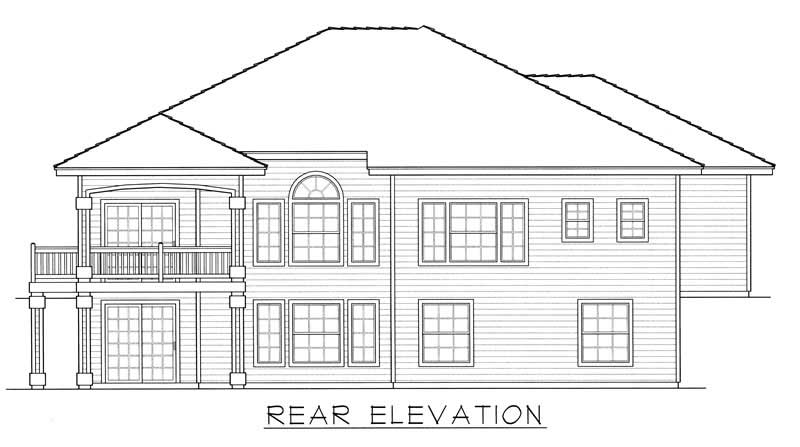

House Plan RDI-1670R1-DB Rear Elevation
3-Bedroom, 2803 Sq Ft Contemporary House Plan - 162-1001 - Front Exterior
House Plan RDI-1670R1-DB Rear Elevation

About Plan # 162-1001

About Plan # 162-1001

2803 SQUARE FEET 3 BEDROOMS 2 FULL BATH 1 HALF BATH
1 FLOOR 57' 0" WIDTH 64' 6" DEPTH 3 GARAGE BAY

The open floor plan for home RDI-1670R1-DB is the center to the life of this house. Special features are nine and ten foot ceilings, a large eating bar, a three sided fireplace, a large pantry, a spacious laundry room, and a covered rear deck for outdoor entertainment. The master suite is spacious with a large walk-in closet, and private master bath. The basement has a finished floor plan with two additional bedrooms, a family room, and plenty of storage.

Each plan set includes the following:

  • Exterior Elevations
  • Floor Plans
  • Foundation Plan
  • Roof Framing Plan
  • Building Sections
  • Wall Sections
  • Stair Detail
  • Cabinet Elevations
  • Notes
  • Electrical Layout
  • Door & Window Sizes

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

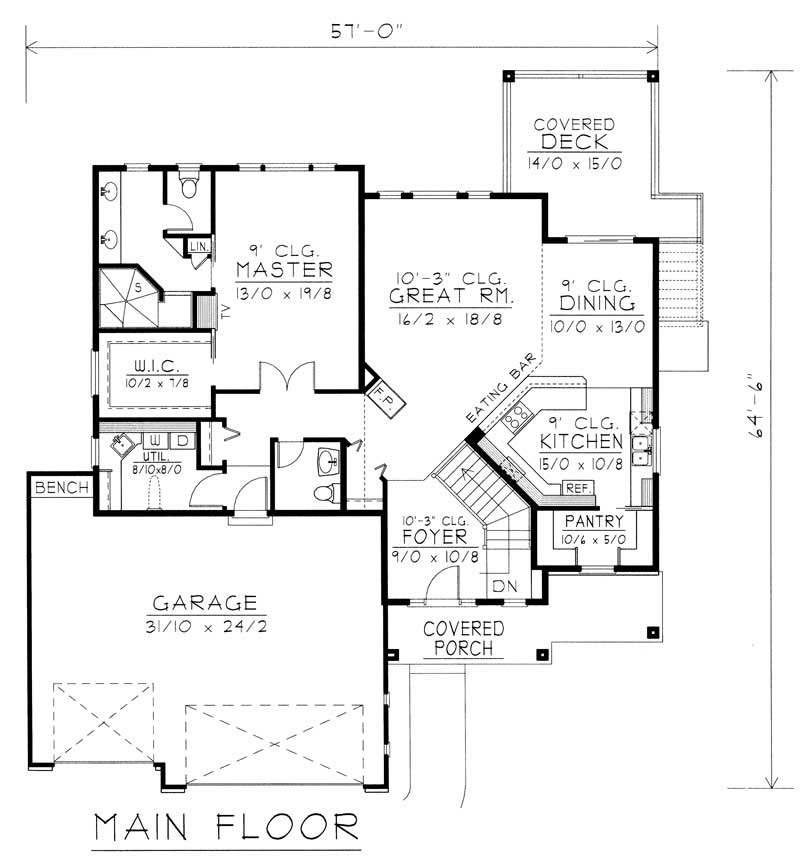

Home Plan: #162-1001 Floor Plan First Story - main Floor Plan First Story of Contemporary Plan #162-1001

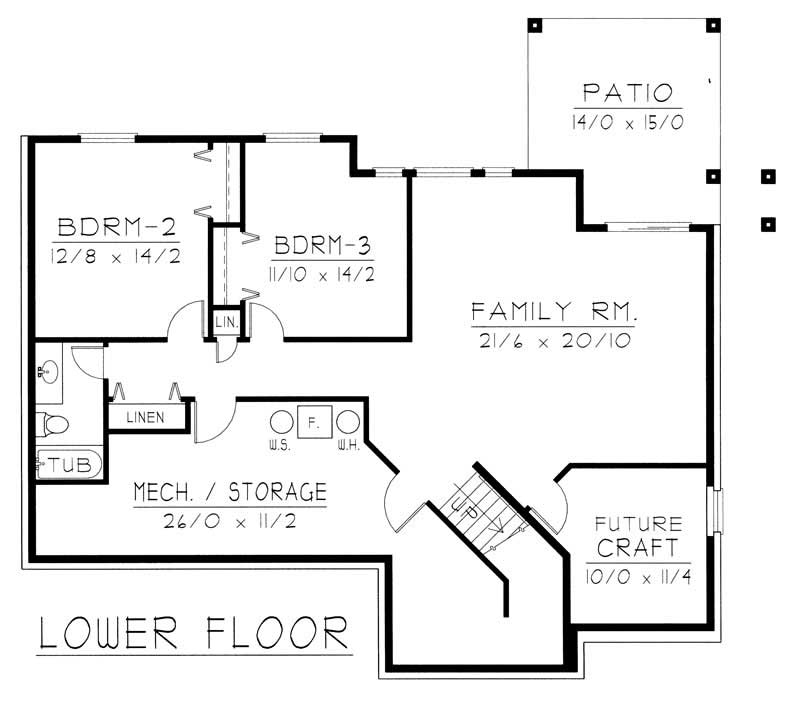

#162-1001 Floor Plan Basement - basement Floor Plan Basement of Contemporary Plan #162-1001
