House Plan #160-1004
Plan Name: 160-1004   Bedrooms: 6   Width: 56' 0"
Square Feet: 2682 Sq Ft.   Bathrooms: Full Baths: 3
Half Baths: 0
  Depth: 48' 0"
Floors: 2   Garage Bays: 0 Ridge Height: 36''
House Plan Main Image House Plan Pricing
Image not available.
  Minimum Construction Package (5 Sets) $675.00
  Standard Construction Package (8 Sets) $725.00
  PDF File Set $875.00
  Reproducible Master $875.00
  Study Set (Construction Bid Set) $625.00
  Pier $0.00
  Mirror Reverse $100.00
  Materials List $70.00
  Additional Set(s), Each $55.00
Square Footage House Plan Description
Heated Sq Ft: 2682
Main Floor: 1559
Upper Floor: 1123
Unfinished Sq ft

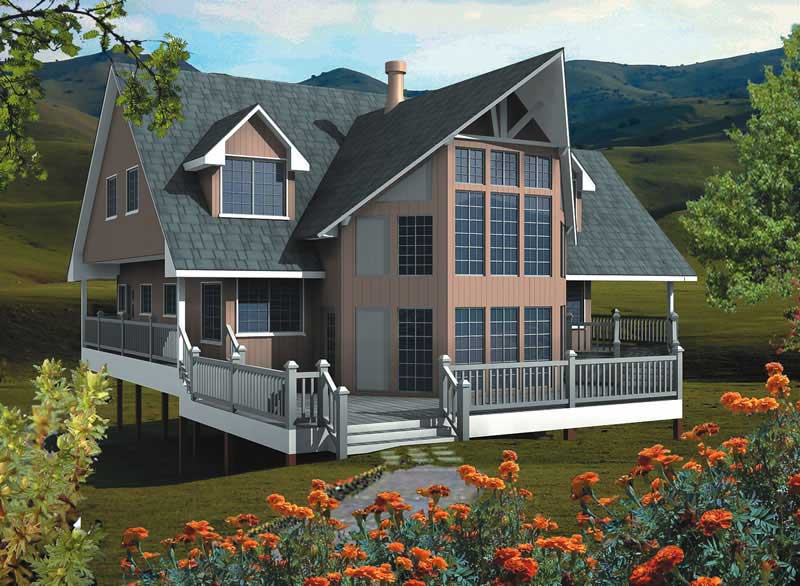

A six-bedroom lodge easily accommodates and encourages multifamily entertaining. The voluminous Lounge boasts a twenty-foot high open beamed ceiling with a centrally located warming wood stove. The towering front window wall captures all the available views. Raised above the Lounge floor level but separated only by a railing are the Library and the spacious Dining room. Numerous French door locations access the wrap-a-round multi-level decks for outdoor entertaining. A staircase hung from the ceiling beams allows access to the second level, where four guest suites share the two full bathrooms. Plans designed with a concrete pier and post foundation plan.

Home Features
  Architectural Styles
Vacation Homes
Log Cabin
  Ceiling Height
9 Foot Ceiling
8 Foot Ceiling
  Exterior Wall Framing
  Exterior Wall Material
Wood Siding
One Fireplace
  Roof Pitch
  Roofing Type
  Special Feature
Dining Room
Guest Room
House Plan : 160-1004 Images
Reverse Plan Images
   House Plan #160-1004
Image not available.
  Home Plan: 160-1004 Main Floor Plan1
House Plan RS-2682 Main Floor Plan
  Home Plan: 160-1004 Second Floor Plan
House Plan RS-2682 Second Floor Plan
