House Plan #160-1005
Plan Name: 160-1005   Bedrooms: 2   Width: 36' 0"
Square Feet: 1644 Sq Ft.   Bathrooms: Full Baths: 2
Half Baths: 0
  Depth: 50' 6"
Floors: 2   Garage Bays: 0 Ridge Height: 25''

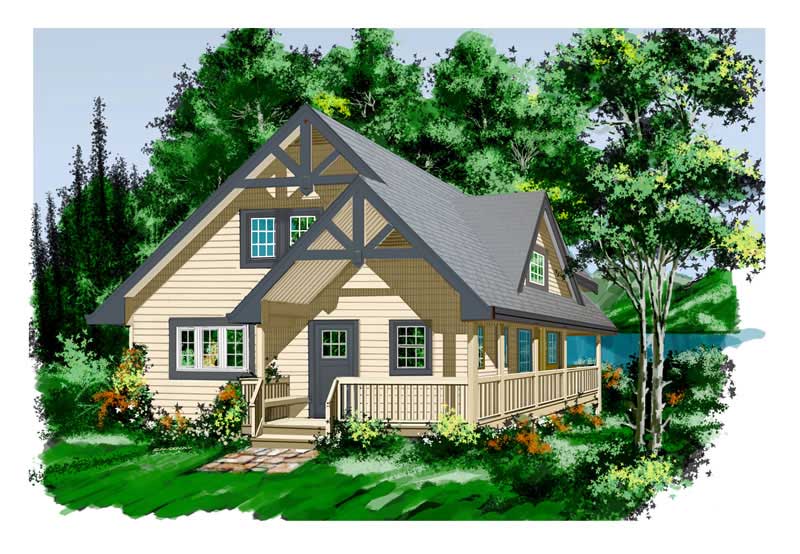

House Plan Main Image House Plan Pricing
Image not available.
CONSTRUCTION SETS
  Minimum Construction Package (5 Sets) $575.00
  Standard Construction Package (8 Sets) $625.00
  PDF File Set $775.00
  Reproducible Master $775.00
  CAD File $975.00
  Study Set (Construction Bid Set) $525.00
FOUNDATION OPTIONS
  Crawlspace $0.00
  Pier $0.00
OTHER OPTIONS / ADD-ONS
  Right Reading Reverse $175.00
  Mirror Reverse $100.00
  Materials List $70.00
  Additional Set(s), Each $55.00
Square Footage House Plan Description
Heated Sq Ft: 1644
Main Floor: 955
Upper Floor: 689
Unfinished Sq ft

The multi-purpose great room with wrap-around covered porch encourages relaxed entertaining and is perfectly suited for evolving family activities. The large u-shaped kitchen with raised breakfast bar is open to the great room ensuring everyone is included in the fun. The second level vaulted studio with private covered balcony easily transforms this retreat space into a home office or voluminous third bedroom if desired.

Home Features
  Architectural Styles
Vacation Homes
Log Cabin

  Building Lot Type
Narrow Lot Design

  Ceiling Height
10 Foot Ceiling
8 Foot Ceiling

  Exterior Wall Framing
2x6

  Exterior Wall Material
Wood Siding

  Fireplaces
One Fireplace

  Roof Pitch
12/12
6/12

  Roofing Type
Gable

  Special Feature
Home Office

House Plan : 160-1005 Images
Reverse Plan Images
   House Plan #160-1005
Image not available.
  Home Plan: 160-1005 Main Floor Plan
House Plan RS-1644 Main Floor Plan
  Home Plan: 160-1005 Second Floor Plan
House Plan RS-1644 Second Floor Plan

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Terms, Conditions and Policies for additional information.

All house plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original house plan was drawn. local building codes when and where the original house plan was drawn.
The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plans herein carefully.
Copyright held by designer.
