House Plan #160-1009
Plan Name: 160-1009   Bedrooms: 3   Width: 46' 0"
Square Feet: 1235 Sq Ft.   Bathrooms: Full Baths: 2
Half Baths: 0 		  Depth: 30' 0"
Floors: 2   Garage Bays: 0 Ridge Height: 35''
House Plan Main Image House Plan Pricing
Image not available.
CONSTRUCTION SETS
  Electronic File $725.00
  Vellum/ Reproducible Set $725.00
  8 sets of Blueprints $575.00
  5 sets of Blueprints $525.00
  1 Set of Blueprints (Not For Construction) $475.00
FOUNDATION OPTIONS
  Basement $0.00
  Crawlspace $0.00
  Daylight Basement $0.00
OTHER OPTIONS / ADD-ONS
  Mirrored Reverse (call to specify how many) $100.00
  Materials List $70.00
  Additional Set(s) $55.00
Square Footage House Plan Description
Heated Sq Ft: 1235   Unfinished Sq Ft:
Main Floor: 893   Garage: 0
Upper Floor: 342   Bonus Room: 0
Lower Floor: 0

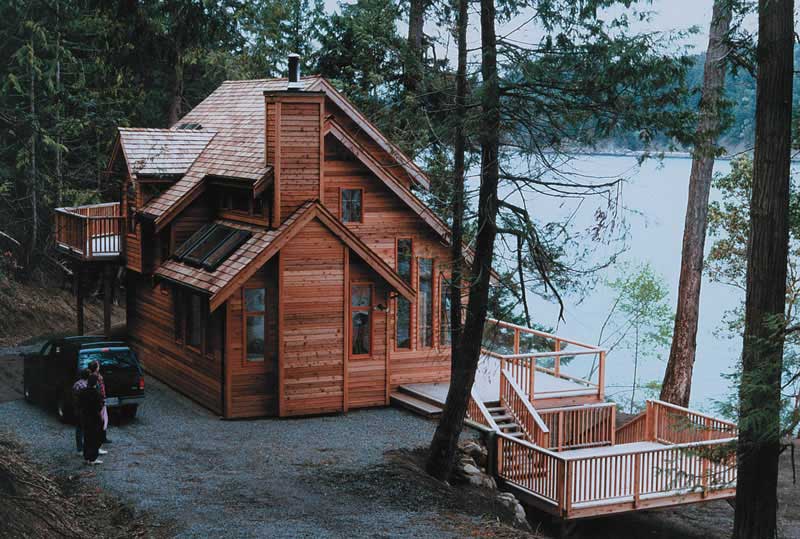

A rear view oriented compact three-bedroom character cottage. Abundant skylights and a window wall ensure maximum daylight for the vaulted living and dining rooms. Decks situated on both levels capture all available views and encourage outdoor activities. The entire second level is dedicated to the vaulted Master Bedroom suite. Plans come with a rear walk out basement foundation plan.

Home Features
  Architectural Styles
Vacation Homes
Log Cabin
Small House Plans

  Building Lot Type
Narrow Lot Design

  Ceiling Height
10 Foot Ceiling
8 Foot Ceiling

  Exterior Wall Framing
2x6

  Exterior Wall Material
Wood Siding

  Fireplaces
One Fireplace

  Roof Pitch
10/12

  Roofing Type
Gable

  Special Feature
Dining Room
Color Photos

House Plan : 160-1009 Images
   House Plan #160-1009
Image not available.
  Home Plan: 160-1009 Main Floor Plan
House Plan RS-1100 Main Floor Plan
  Home Plan: 160-1009 Second Floor Plan
House Plan RS-1100 Second Floor Plan
