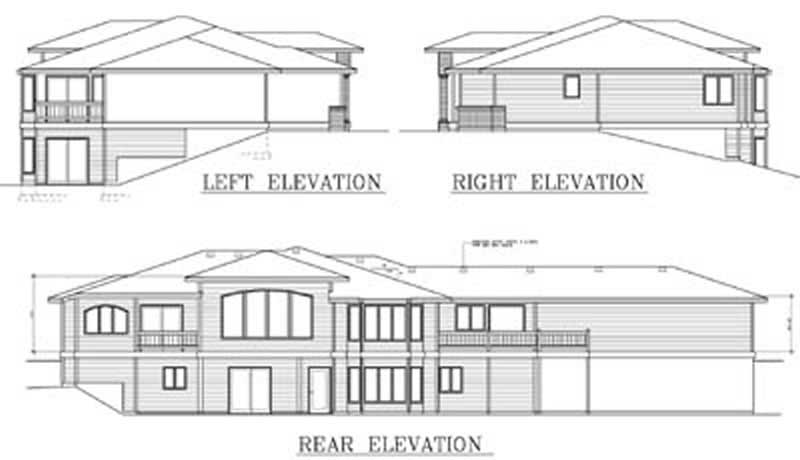

This image shows the rear elevation of the home plan.
4-Bedroom, 2426 Sq Ft Traditional House Plan - 119-1008 - Front Exterior
This image shows the rear elevation of the home plan.

About Plan # 119-1008

About Plan # 119-1008

2426 SQUARE FEET 4 BEDROOMS 2 FULL BATH 0 HALF BATH
2 FLOOR 49' 0" WIDTH 53' 0" DEPTH 2 GARAGE BAY
The Traditional house plan 100-445 is a beautiful two story home with 2426 square feet. It has 4 bedrooms, 2 baths, as well as a 2 car garage. The two floors are split fairly equally in square footage: the main floor has 1264 square feet while the upper floor has 1162. The main floor a living and dining areas as well as a den and also a nook.The master bedroom and bath is located on the second floor along with 3 other bedrooms.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.
  • FRONT PERSPECTIVE: Artist’s sketch to provide an idea of what the house would look like once built and landscaped.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

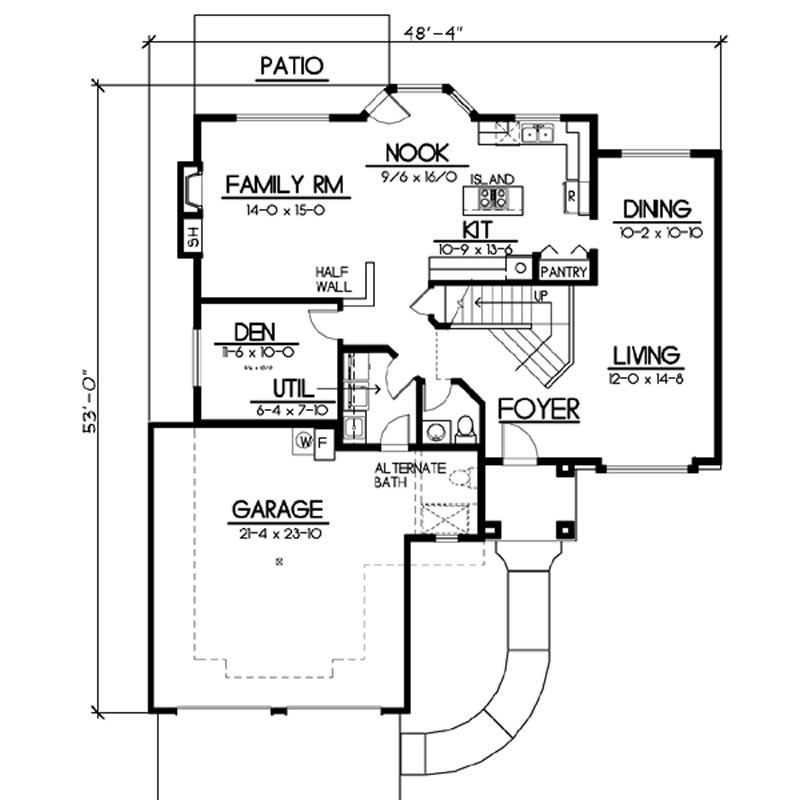

Home Plan: #119-1008 Floor Plan First Story - first Floor Plan First Story of Traditional Plan #119-1008

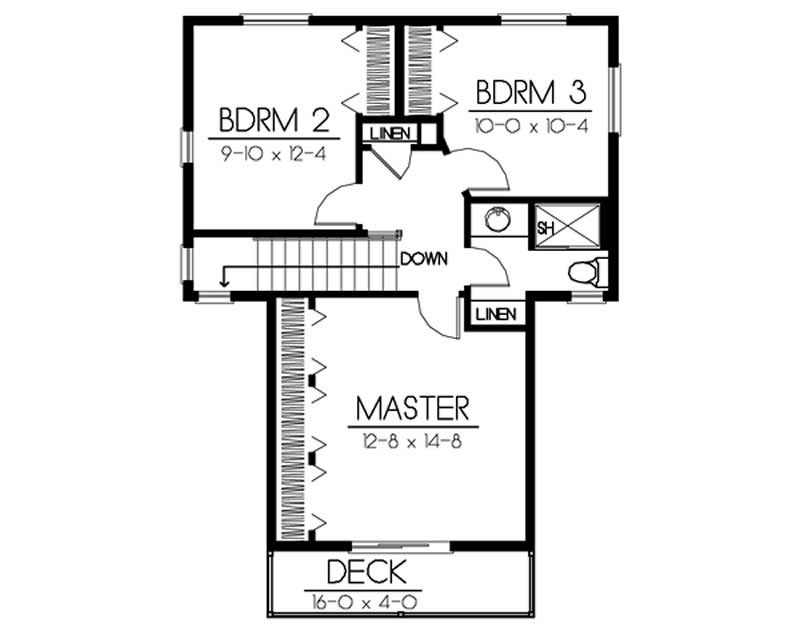

#119-1008 Floor Plan Second Story - second Floor Plan Second Story of Traditional Plan #119-1008
Home Plan: #119-1008 Floor Plan First Story - first Floor Plan First Story of Traditional Plan #119-1008
#119-1008 Floor Plan Second Story - second Floor Plan Second Story of Traditional Plan #119-1008
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 119-1008
Floors:
2
Bedrooms:
4
Full Baths:
2

Square Footage

Heated Sq Feet:
2426
Main Floor:
1264
Upper Floor:
1162
Unfinished Sq Ft:
Garage :
576

Dimensions

Width:
49' 0"
Depth:
53' 0"
Ridge Height:
26' 0"

Architectural Styles

Traditional

Roof Pitch

8/12

Ceiling Height

8 Foot Ceiling

Garage Type

Attached Garage
Front Entry

Exterior Wall Framing

2x6

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

Five printed sets and a modifiable PDF with complete set of working drawings. The PDF is emailed while the 5 sets ship. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build an unlimited number of homes with no re-use fees. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
