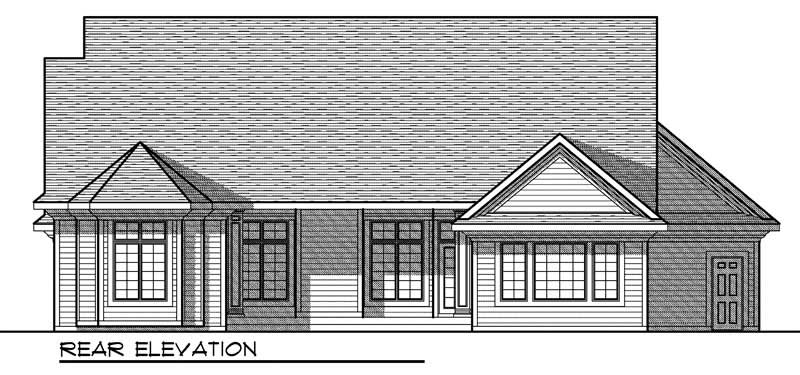

REAR ELEVATION
2-Bedroom, 2233 Sq Ft Cape Cod Home Plan - 101-1857 - Main Exterior

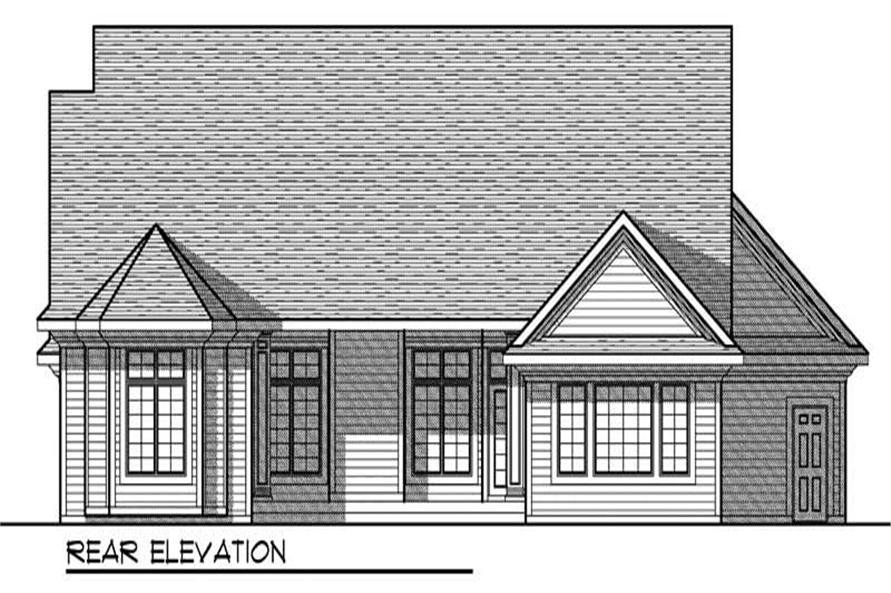

REAR ELEVATION

About Plan # 101-1857

About Plan # 101-1857

2233 SQUARE FEET 2 BEDROOMS 1 FULL BATH 1 HALF BATH
1 FLOOR 65' 0" WIDTH 60' 4" DEPTH 3 GARAGE BAY
Complete with shuttered windows and a spacious porch, this charming ranch home gets its design flair from the farm homes of years ago. As you enter, you’ll love the formal dining room flanked with graceful columns to your left and the view through the great room out the back of the home straight ahead. The kitchen features a breakfast bar that overlooks the cozy nook and great room making a living space large enough for family gatherings. The bedroom wing is located on the right of the entry and features a master suite with bay window, Jacuzzi tub and spacious walk-in closet. Directly in front of the master, you’ll find a second bedroom that can double as a den. Additional amenities include a large laundry room behind the kitchen and a butler’s pantry with easy access to the formal dining room.

Each plan set includes the following:

  • Front, Back & Side Elevations
  • Floor Plans
  • Electrical Layout (location of outlets, switches, etc. - it does not have wiring schematics)
  • Roof Plan (Birdseye view)
  • Foundation Layout
  • Wall & Stair Sections
  • Cross Section
  • Kitchen Layout
  • General Notes

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Framing layouts with beam sizes and locations.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

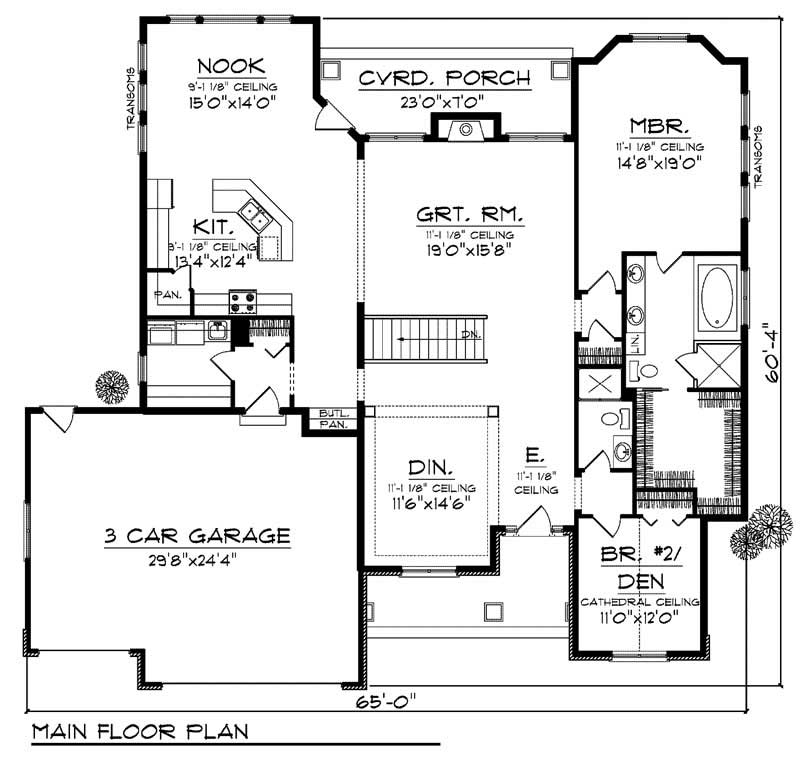

Home Plan: #101-1857 Floor Plan First Story - main Floor Plan First Story of Cape Cod Plan #101-1857
Home Plan: #101-1857 Floor Plan First Story - main Floor Plan First Story of Cape Cod Plan #101-1857
