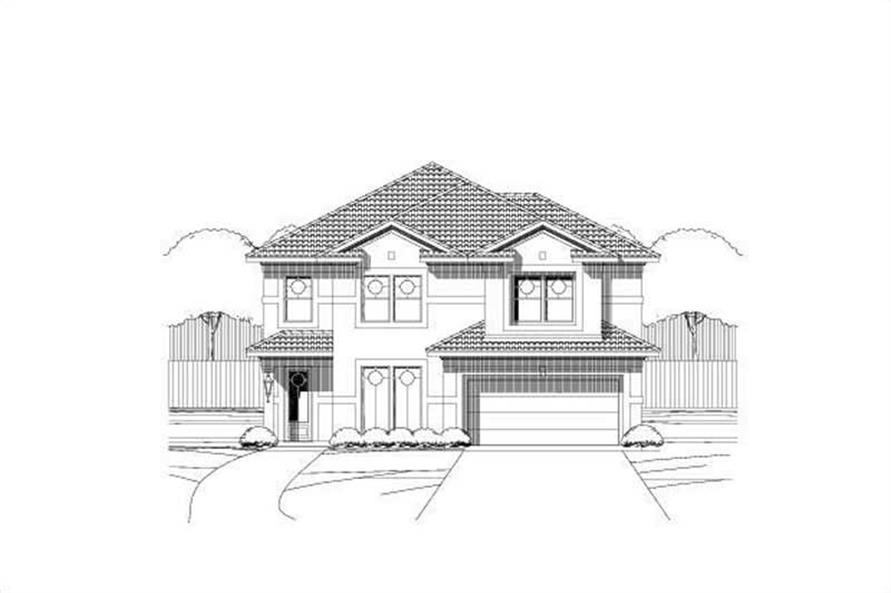

3-Bedroom, 2727 Sq Ft Mediterranean Home Plan - 156-1202 - Main Exterior

About Plan # 156-1202

About Plan # 156-1202

2727 SQUARE FEET 3 BEDROOMS 3 FULL BATH 0 HALF BATH
2 FLOOR 40' 0" WIDTH 54' 0" DEPTH 2 GARAGE BAY
Home plan number 11212 is a two story, Mediterranean style home with a total square footage of 2,727. There are 3 bedrooms and 3 and 1/2 bathrooms, along with a straight in, front loading, 2 car garage. The master bedroom includes a sitting area. Plan number 11212 has a covered rear porch. Features include a butler pantry, foyer and tile roof.

Each plan set includes the following:

  • Exterior,
  • Elevations
  • Floor Plans
  • Electrical Layout
  • Building Sections
  • Roofing Plan
  • Interior Elevations
  • General Details
  • Wall Sections

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

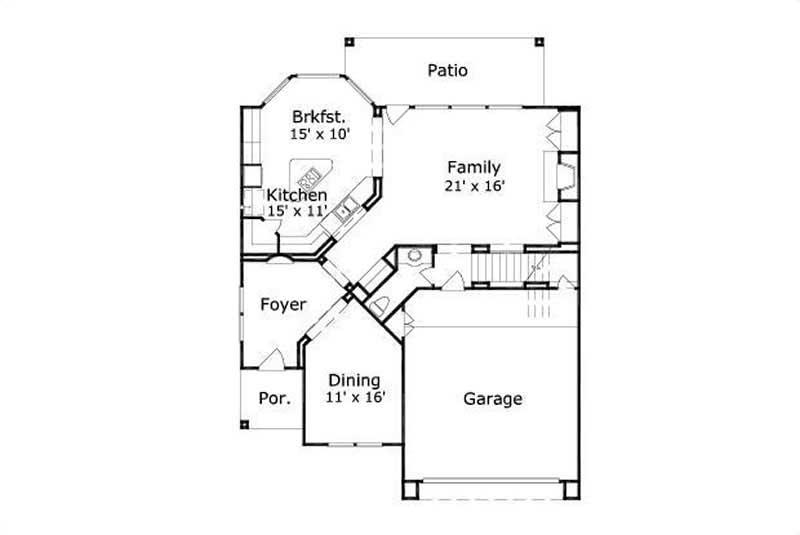

Home Plan: #156-1202 Floor Plan First Story - first story Floor Plan First Story of Mediterranean Plan #156-1202

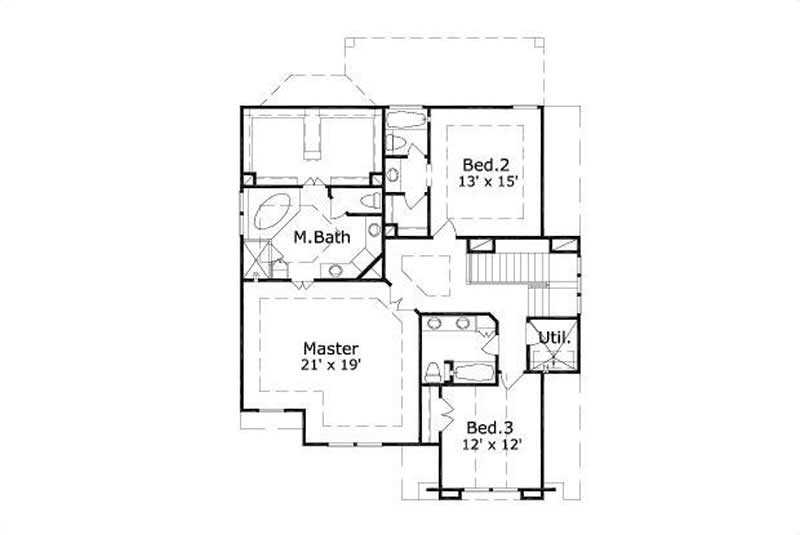

#156-1202 Floor Plan Second Story - second story Floor Plan Second Story of Mediterranean Plan #156-1202
Home Plan: #156-1202 Floor Plan First Story - first story Floor Plan First Story of Mediterranean Plan #156-1202
#156-1202 Floor Plan Second Story - second story Floor Plan Second Story of Mediterranean Plan #156-1202
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 156-1202
Floors:
2
Bedrooms:
3
Full Baths:
3

Square Footage

Heated Sq Feet:
2727
Main Floor:
1193
Upper Floor:
1534
Unfinished Sq Ft:

Dimensions

Width:
40' 0"
Depth:
54' 0"
Ridge Height:
29' 0"

Architectural Styles

Mediterranean
Texas Style

Exterior Wall Material

Stucco

Ceiling Height

10 Foot Ceiling
9 Foot Ceiling

Garage Type

Attached Garage
Front Entry

Building Lot Type

Narrow Lot Design

Porches and Exterior Features

Covered Rear Porch

Additional Notes from Designer

CAD files may take up to 3 business days to receive - please contact us for availability.

PRICING OPTIONS

A NON-modifiable, print-only PDF that is emailed. Includes a complete set of working drawings delivered in a digital format. Print as many sets as you need. No shipping costs. Comes with a license to build one home.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
