House Plan #175-1066
Plan Name: 175-1066   Bedrooms: 5   Width: 102' 0"
Square Feet: 7123 Sq Ft.   Bathrooms: Full Baths: 6
Half Baths: 1
  Depth: 132' 10"
Floors: 2   Garage Bays: 4 Ridge Height: 34-5'

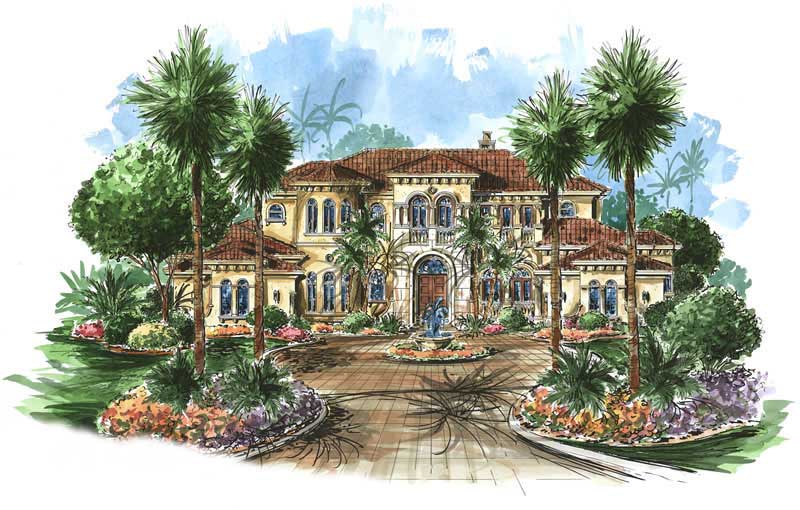

House Plan Main Image House Plan Pricing
Image not available.
CONSTRUCTION SETS
  CAD File $6,500.00
  PDF File Set $6,500.00
  Reproducible Master $6,500.00
FOUNDATION OPTIONS
  Slab $0.00
OTHER OPTIONS / ADD-ONS
Square Footage House Plan Description
Heated Sq Ft: 7123
Main Floor: 5225
Upper Floor: 1898
Unfinished Sq ft

Luxury Homeplans WDG-F2-7123 are 5-bedroom elegant estate with an old-world feel. The large mahogany double doors open to a grand foyer with an elegant circular stairway. Just past the foyer is a colonnade and a large rotunda living room with a double sided wet bar, fireplace and a panoramic glass wall with luxurious French doors. Towards the master bedroom side is a large library, with built in bookshelves. This side of the house also has an exercise room with a built-in wet bar, stereo and drinking fountain. The master suite features a sitting area, built-in entertainment and lanai access. The large master bath has both a circular spa and a circular walk-in shower. There is also a pair of double French doors in the master bath that open to a small balcony overlooking a private garden with tropical landscaping and beautiful koi pond. The other side of these Mediterranean house plans has an oval shaped dining room that rests over a large fountain that can be seen through the tall glass windows. Around the corner is a bedroom with private access suite overlooking a tropical landscape garden and koi pond. The family room features a diamond shaped ceiling with exposed wood beams. The family room views a stunning tropical landscaping scene surrounding a large swimming pool with a disappearing edge. This Luxury home plans second level offers a gallery bridge over the foyer leading to three other bedroom suites. One of the bedroom suites has an access to the large sun deck while the other bedrooms access the sundeck through the theatre room.

Home Features
  Architectural Styles
Mediterranean
Southwest
Luxury
Beachfront
Coastal
Spanish
Concrete Block/ ICF Design
California Style
Florida Style
Wheelchair Accessible

  Building Lot Type
View Lot

  Ceiling Height
10 Foot Ceiling

  Exterior Wall Framing
Concrete

  Exterior Wall Material
Stucco

  Garage Type
Attached Garage
Courtyard Entry

  Kitchen Features
Kitchen Island
Butler's Pantry
Nook/Breakfast Area
Outdoor Kitchen
Peninsula/Eating Bar

  Master Suite Features
Master Bathroom
Walk In Closet
Main Floor Master
Sitting Area

  Porches and Exterior Features
Covered Lanai
Screened in Lanai
Breezeway
Courtyard
Covered Front Porch
Covered Rear Porch
Friend's Entry
Sundeck

  Roof Pitch
5/12

  Roofing Material
Tiles

  Special Feature
Balcony
Split Bathroom
Loft
Vaulted Ceilings
In Home Gym
Fireplace
Swimming Pool
Dining Room
Home Office
Family Room
Main Level Laundry
Library
Home Theater

House Plan : 175-1066 Images
Reverse Plan Images
   House Plan #175-1066
Image not available.
  Home Plan: 175-1066 FLOOR PLANS
FLOOR PLANS
