House Plan #109-1178
Photographs may reflect modified designs. Copyright held by designer.

About Plan # 109-1178

About Plan # 109-1178

House Plan Details

2022 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 58' 0" WIDTH 62' 0" DEPTH 0 GARAGE BAY

House Plan Description

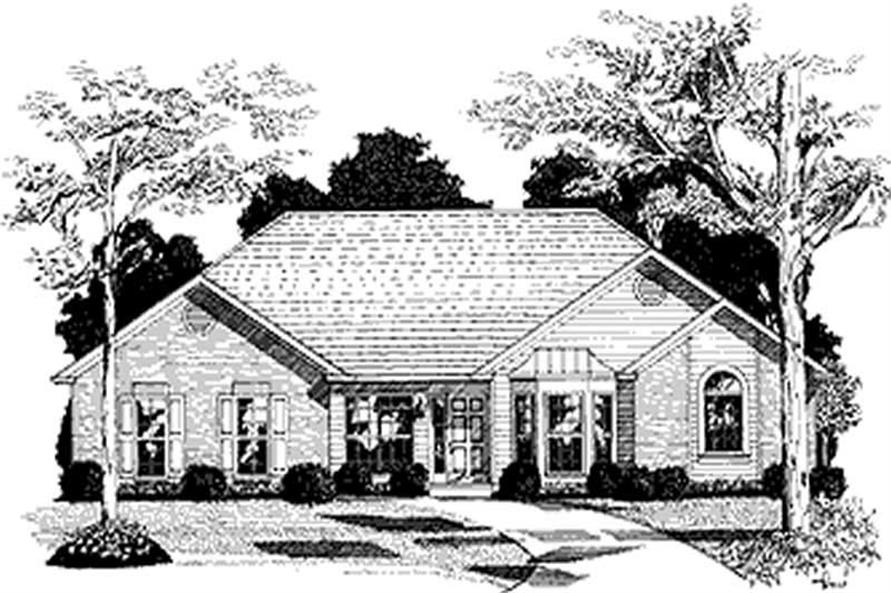

This traditional brick ranch features 2,022 sq. ft. of living space. The 16'x 20' family room has a vaulted ceiling, a fireplace and a French door leading onto a deck/patio. This design also has a formal living room, highlighted by a bay window and a roomy dining room, with a boxed trey ceiling. The corridor kitchen measures 10'x 10'and has a spacious pantry. Measuring 11'x 10', the sunny breakfast room has an abundance of windows.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Floor Plans

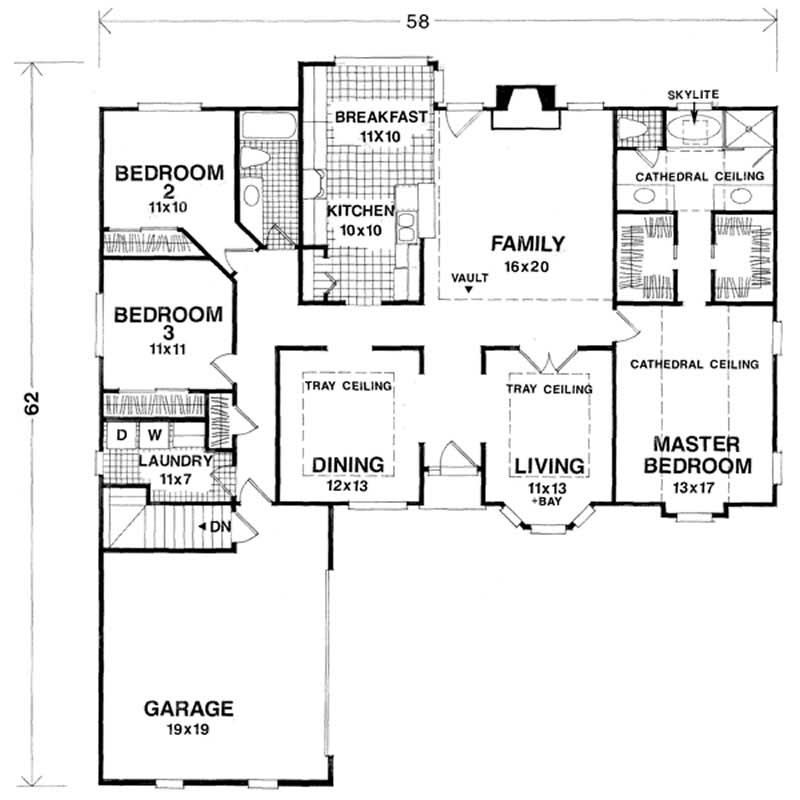

Home Plan: #109-1178 Floor Plan First Story MAIN FLOOR PLAN
Home Plan: #109-1178 Floor Plan First Story - MAIN FLOOR PLAN MAIN FLOOR PLAN

Plan specs and features

Summary Information

House Plan:
# 109-1178
Floors:
1
Bedrooms:
3
Full Baths:
2

Square Footage

Heated Sq Feet:
2022
Main Floor:
2022
Unfinished Square Feet:

Dimensions

Width:
58' 0"
Depth:
62' 0"

Architectural Styles

Ranch
Traditional

Exterior Wall Material

Brick
Vinyl Siding

Roof Pitch

8/12

Ceiling Height

9 Foot Ceiling

Special Feature

Dining Room
Family Room
Fireplace

Exterior Wall Framing

2x4

PRICING OPTIONS

A full set of construction drawings in an electronic format provides many advantages over printed blueprint packages and reproducible masters. You can make multiple copies at a local copy center using the paper size your choice. If you need to make modifications, a design professional can do so typically the same way a reproducible master would be modified. The PDF File Set can be emailed directly to you - often the same day or within 1 business day of your order. Purchase of this PDF File Set constitutes a license to build a single house only.

This package includes a license to build a single house plus full construction drawings with the minimum number of sets needed to build your own home.

This package includes a license to build a single house plus full construction drawings and tends to be the best value for someone who is ready to start building. Once the process begins, a number of people will require their own set of blueprints - your builder, the subcontractors, local building officials, the mortgage lender and you.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.


All house plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original house plan was drawn.


The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plans herein carefully.
