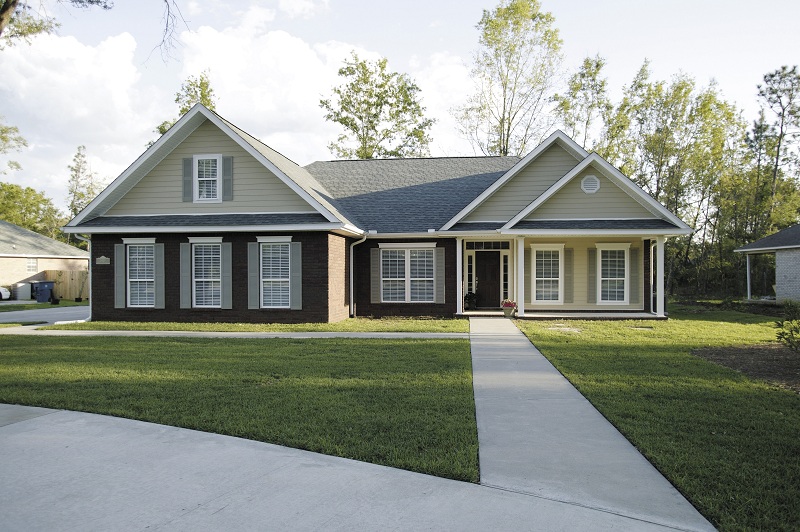

House Plan #109-1086
Plan Name: 109-1086   Bedrooms: 3   Width: 55' 8"
Square Feet: 1787 Sq Ft.   Bathrooms: Full Baths: 2
Half Baths: 0
  Depth: 56' 6"
Floors: 1   Garage Bays: 2 Ridge Height: 0'
House Plan Main Image House Plan Pricing
Image not available.
  Minimum Construction Package (5 Sets) $825.00
  PDF File Set $825.00
  Standard Construction Package (8 Sets) $875.00
  Reproducible Master $925.00
  CAD File $1,300.00
  Study Set (Construction Bid Set) $775.00
  Basement $0.00
  Crawlspace $0.00
  Slab $0.00
  2x6 Framing Option - Exterior Walls $250.00
  Materials List $125.00
  Mirror Reverse $55.00
  Additional Set(s), Each $40.00
Square Footage House Plan Description
Heated Sq Ft: 1787
Main Floor: 1787
Unfinished Sq ft
Garage: 430

This striking and distinctive ranch includes all the frills. From the inviting front porch to the screen porch and deck, this home provides dramatic spaces, luxurious appointments, and spacious living areas. Its carefully designed 1787 square feet provide the feel and features of a much larger home. The bonus room and basement provide plenty of space for expansion, so this home is one that won't soon be outgrown.

Home Features
  Architectural Styles
  Building Lot Type
Flat Site
  Ceiling Height
9 Foot Ceiling
8 Foot Ceiling
  Exterior Wall Framing
  Exterior Wall Material
One Fireplace
  Garage Type
Side Entry
  Porches and Exterior Features
Covered Front Porch
  Roof Pitch
  Special Feature
Bonus Room
Main Level Laundry
House Plan : 109-1086 Images
Reverse Plan Images
   House Plan #109-1086
Image not available.

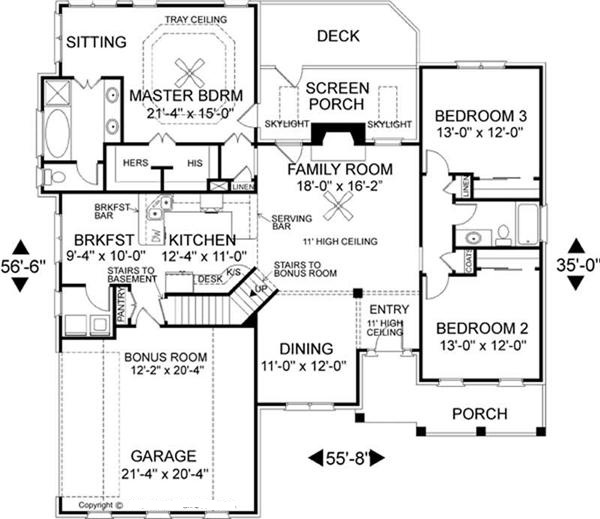

  Home Plan: 109-1086 First Story
109-1086 house plan first floor

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Terms, Conditions and Policies for additional information.

All house plans offered on are designed to conform to the local building codes when and where the original house plan was drawn. local building codes when and where the original house plan was drawn.
The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plans herein carefully.
