House Plan #101-1643
House Plan #101-1643
Photographs may reflect modified designs. Copyright held by designer.

About Plan # 101-1643

About Plan # 101-1643

House Plan Details

5009 SQUARE FEET 5 BEDROOMS 2 FULL BATH 2 HALF BATH
2 FLOOR 112' 6" WIDTH 72' 6" DEPTH 3 GARAGE BAY

House Plan Description

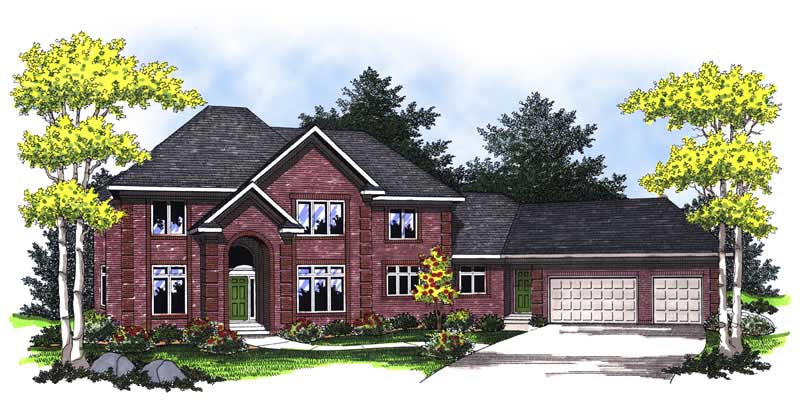

This traditional two-story home features an all brick front façade that’s sure to grab the attention of family and friends. The spacious floor plan has a large eat-in kitchen with a walk-in pantry. Located in angles around the two-story entry, you’ll find a den, a formal living room with wet bar, a family room a nook and a formal dining room. The master suite is located on the main floor and has his and hers walk-in closets and a Jacuzzi tub. Upstairs, you’ll be surprised to find four additional bedrooms, three of them with walk-in closets and private bathrooms. A computer loft makes the second floor a perfect kid’s retreat. The angled three-car garage provides ample storage space for just about any buyer.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Floor Plans

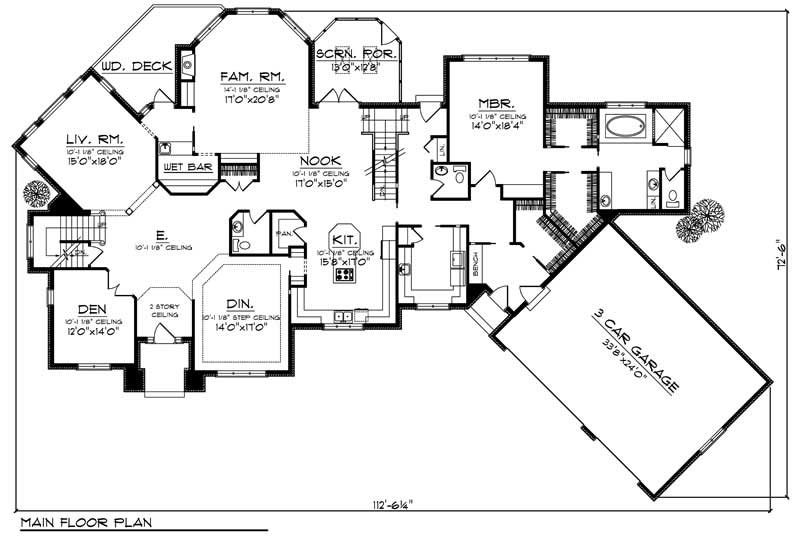

Home Plan: #101-1643 Floor Plan First Story MAIN FLOOR PLAN

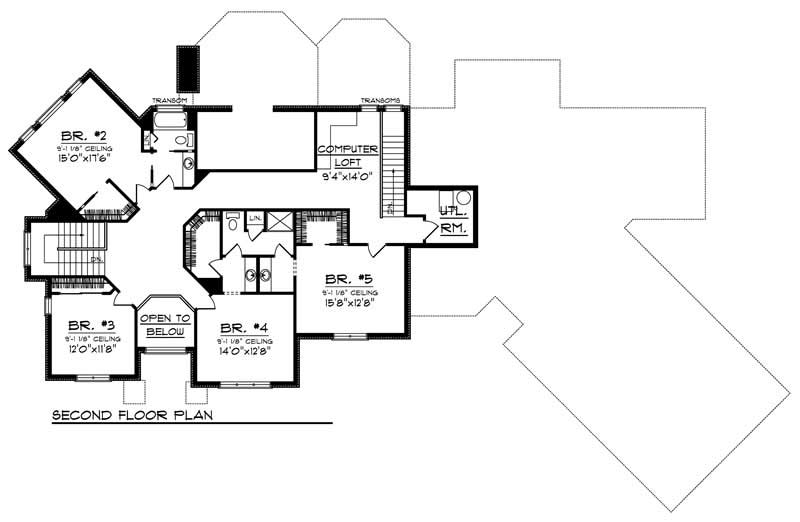

Home Plan: #101-1643 Floor Plan Second Story SECOND FLOOR PLAN
Home Plan: #101-1643 Floor Plan First Story - MAIN FLOOR PLAN MAIN FLOOR PLAN
Home Plan: #101-1643 Floor Plan Second Story - SECOND FLOOR PLAN SECOND FLOOR PLAN

Plan specs and features

Summary Information

House Plan:
# 101-1643
Floors:
2
Bedrooms:
5
Full Baths:
2
Half Baths:
2

Square Footage

Heated Sq Feet:
5009
Main Floor:
3378
Upper Floor:
1631
Unfinished Square Feet:

Dimensions

Width:
112' 6"
Depth:
72' 6"

Architectural Styles

Luxury

Exterior Wall Material

Brick

Roof Pitch

10/12

Ceiling Height

10 Foot Ceiling

Special Feature

Dining Room
Family Room

Garage Type

Attached Garage

Exterior Wall Framing

2x6

Kitchen Features

Walk-in Pantry

PRICING OPTIONS

This package includes a license to build a single house plus full construction drawings with the minimum number of sets needed to build your own home.

This package includes a license to build a single house plus full construction drawings and tends to be the best value for someone who is ready to start building. Once the process begins, a number of people will require their own set of blueprints - your builder, the subcontractors, local building officials, the mortgage lender and you.

For use by design professionals. This file includes one copy of all CAD files for your house plan. This allows for more extensive plan modifications and enables the desginer/architect to begin working from the existing file rather than redraw the plan. The cost for the CAD file offsets some of the labor costs a designer would charge if the plan were redrawn. Purchase of this CAD File constitutes a license to build a single house only.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.


All house plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original house plan was drawn.


The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plans herein carefully.
