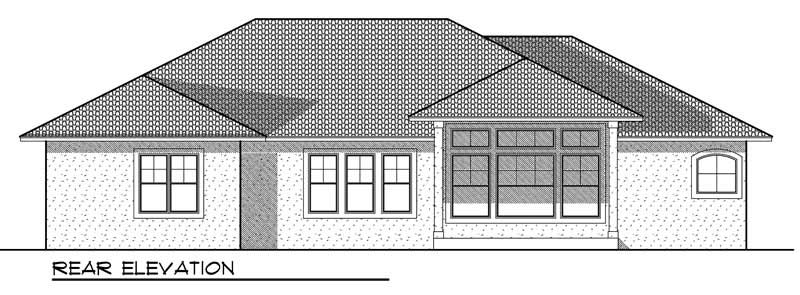

REAR ELEVATION

About Plan # 101-1413

About Plan # 101-1413

2504 SQUARE FEET 3 BEDROOMS 3 FULL BATH 0 HALF BATH
1 FLOOR 70' 0" WIDTH 62' 4" DEPTH 3 GARAGE BAY
A unique blend of stucco and stone makes this home appealing from the curb yet affordable to build. The barrel ceiling of the entry leads you to the great room, which features a 17-foot beamed ceiling. The eat-in island of the kitchen leads to the attached nook, making the living area of this home wide-open, yet comfortable. The master suite is sure to please with its step ceiling, corner Jacuzzi tub and spacious walk-in closet. Two additional bedrooms, each with its own closet, can be found on the opposite side of the home allowing for privacy for mom and dad. From the beamed great room ceiling to the tray ceilings in the master, to the barrel ceiling as you enter, you’ll love the attention that was paid to the ceilings throughout the entire home.

Each plan set includes the following:

  • Front, Back & Side Elevations
  • Floor Plans
  • Electrical Layout (location of outlets, switches, etc. - it does not have wiring schematics)
  • Roof Plan (Birdseye view)
  • Foundation Layout
  • Wall & Stair Sections
  • Cross Section
  • Kitchen Layout
  • General Notes

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Framing layouts with beam sizes and locations.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

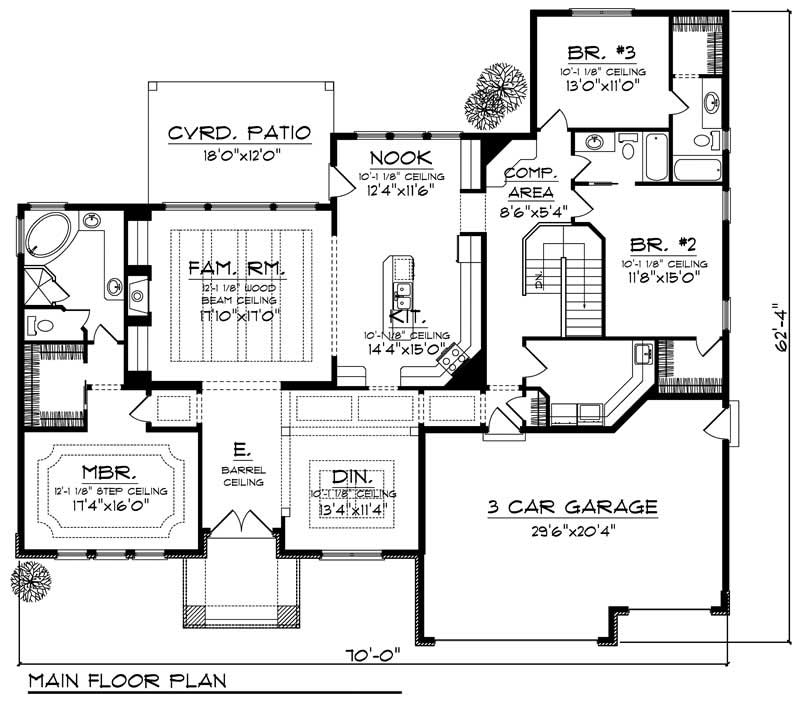

Home Plan: #101-1413 Floor Plan First Story - main Floor Plan First Story of Mediterranean Plan #101-1413
