3-Bedroom, 3513 Sq Ft Ranch Plan with Master Bathroom
Related House Plans
Photographs may reflect modified designs. Copyright held by designer.
| 3513 SQUARE FEET | 3 BEDROOMS | 2 FULL BATH | 2 HALF BATH |
| 1 FLOOR | 85' 0" WIDTH | 54' 0" DEPTH | 3 GARAGE BAY |
This traditional ranch-style home has plenty of room for all your friends and family. The great room features a fireplace, built-in shelves, a wall of windows overlooking the backyard, and arched soffits that leads to the kitchen. The efficient kitchen offers plenty of counter space, a walk-in pantry, a preparation island, and a nook that opens to the rear deck; there is also a formal dining room for special occasion meals. A secluded den with views to the front yard and built-in shelves is perfect for getting some work done or relaxing in comfort. A luxurious master bath, French doors that lead to a rear wood deck, and two walk-in closets elevate the master suite beyond the ordinary. This floor also contains a laundry room, a half bath, and a three-car garage. The lower level includes a family room with a half bath, two additional bedrooms that have walk-in closets and share a full bath, and an amazing amount of storage.
Each plan set includes the following:
- Front, Back & Side Elevations
- Floor Plans
- Electrical Layout (location of outlets, switches, etc. - it does not have wiring schematics)
- Roof Plan (Birdseye view)
- Foundation Layout
- Wall & Stair Sections
- Cross Section
- Kitchen Layout
- General Notes
These items are NOT included:
- Architectural or Engineering Stamp - handled locally if required.
- Site Plan - handled locally when required.
- Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
- Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
- Framing layouts with beam sizes and locations.
- Energy calculations - handled locally when required.
Write Your Own Review
FLOOR PLANS Flip Images

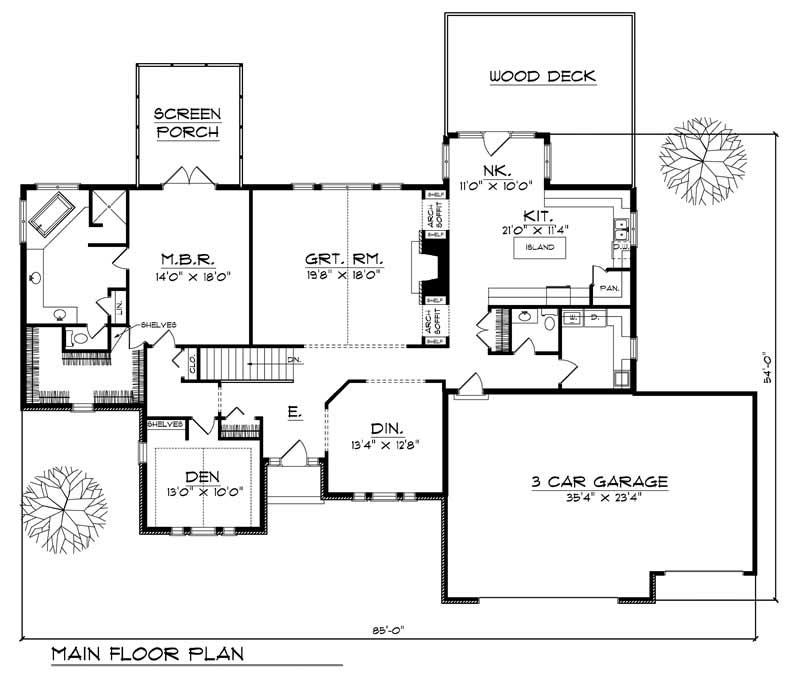

Home Plan: #101-1338 Floor Plan First Story
-
main
![Floor Plan First Story of Ranch Plan #101-1338]( "MAIN FLOOR PLAN")

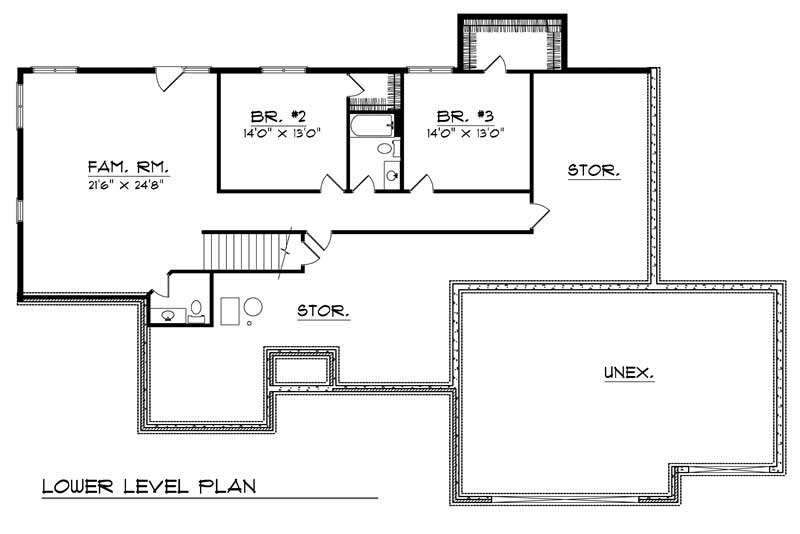

#101-1338 Floor Plan Basement
-
