3-Bedroom, 1618 Sq Ft Ranch Plan with Master Bathroom
Related House Plans
Photographs may reflect modified designs. Copyright held by designer.
| 1618 SQUARE FEET | 3 BEDROOMS | 2 FULL BATH | 0 HALF BATH |
| 1 FLOOR | 51' 0" WIDTH | 59' 4" DEPTH | 2 GARAGE BAY |
This ranch plan cleverly divides living and sleeping spaces into two separate wings, making it perfect for mixed schedules and quiet weekend mornings. At the rear sits the master bedroom, which makes it the most private room in the home. This room features a full bath and a walk-in closet. The other two bedrooms share a hall bath with a separated double vanity. For convenience, the laundry area and linen closet complete this wing. The living wing boasts a variety of ceilings to give each area an individual character. The great room has plenty of backyard exposure, a beautiful fireplace, and a ten-foot ceiling. The dining room features a cathedral ceiling and is divided from the kitchen by a peninsula breakfast bar. Quick meals can be taken in the kitchen or moved to that formal dining room for dinner parties.
Each plan set includes the following:

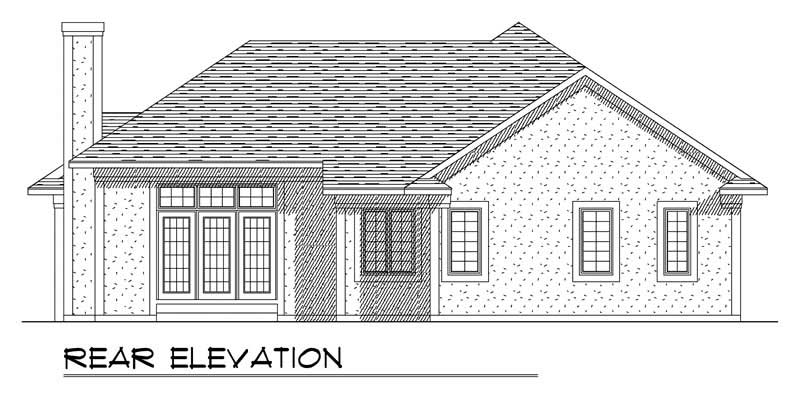

- Front, Back & Side Elevations
- Floor Plans
- Electrical Layout (location of outlets, switches, etc. - it does not have wiring schematics)
- Roof Plan (Birdseye view)
- Foundation Layout
- Wall & Stair Sections
- Cross Section
- Kitchen Layout
- General Notes
These items are NOT included:
- Architectural or Engineering Stamp - handled locally if required.
- Site Plan - handled locally when required.
- Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
- Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
- Framing layouts with beam sizes and locations.
- Energy calculations - handled locally when required.
Write Your Own Review
FLOOR PLANS Flip Images

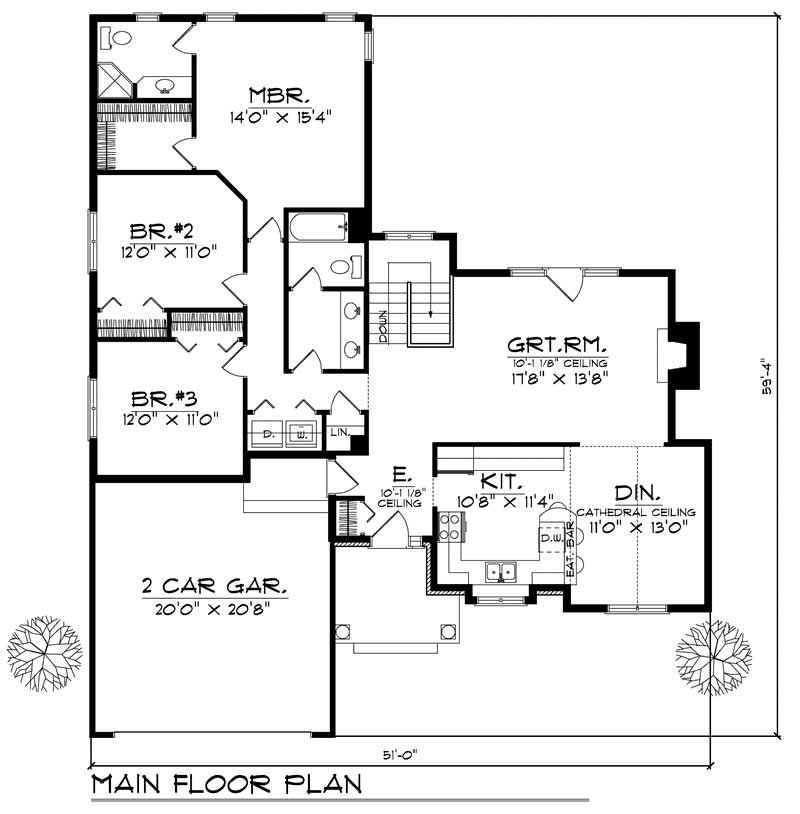

Home Plan: #101-1856 Floor Plan First Story
-
