4-Bedroom, 4274 Sq Ft Florida Style Home Plan - 133-1034 - Main Exterior

About Plan # 133-1034

About Plan # 133-1034

4274 SQUARE FEET 4 BEDROOMS 5 FULL BATH 0 HALF BATH
2 FLOOR 68' 2" WIDTH 73' 0" DEPTH 2 GARAGE BAY

Stone facade and precast columns grace the entryway of this lovely, two-story European, Mediterranean flaired house plan. The Monaco features include a large pantry in the kitchen, curved glass windows in the breakfast nook, large closets and built-ins in the living room. Corner, pocket sliding glass doors doubles the amount of living space in warmer climates. Guests will be more than just comfortable in their guest suite upstairs complete with breakfast bar.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

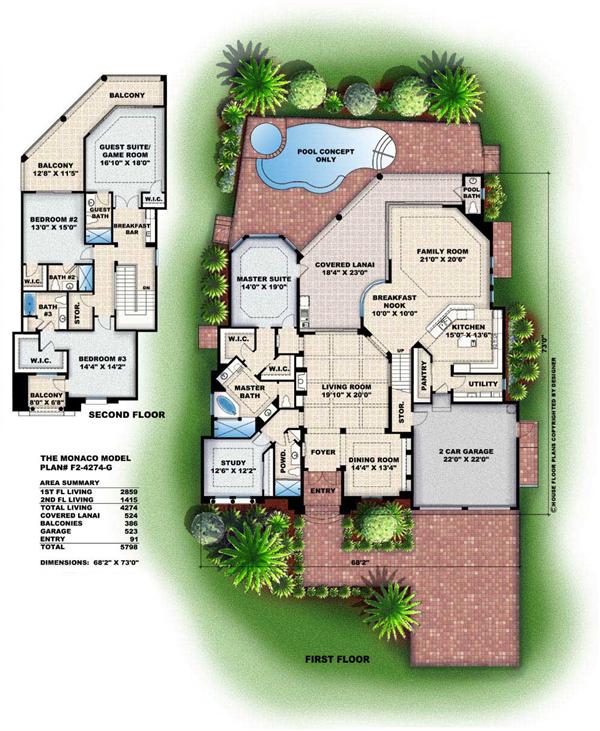

Home Plan: #133-1034 Floor Plan First Story - s Floor Plan First Story of Florida Style Plan #133-1034
Home Plan: #133-1034 Floor Plan First Story - s Floor Plan First Story of Florida Style Plan #133-1034
